B27

Push-On Coaxial Connectors (PC Card Type

2

2 Mountable)

MRF01 Series

sFeatures

1. Uses a push-on type system which is easy to

engage and disengage. (There is no lock.)

2. Mountable on PCMCIA Type II Card

The 3 mm receptacle thickness permits mounting to the

back side of a type II card.

Note that at the time of card mounting, use of 0.15mm

offset of the board mounting surface from the card center

line will result in the same card center axis and connector

center axis.

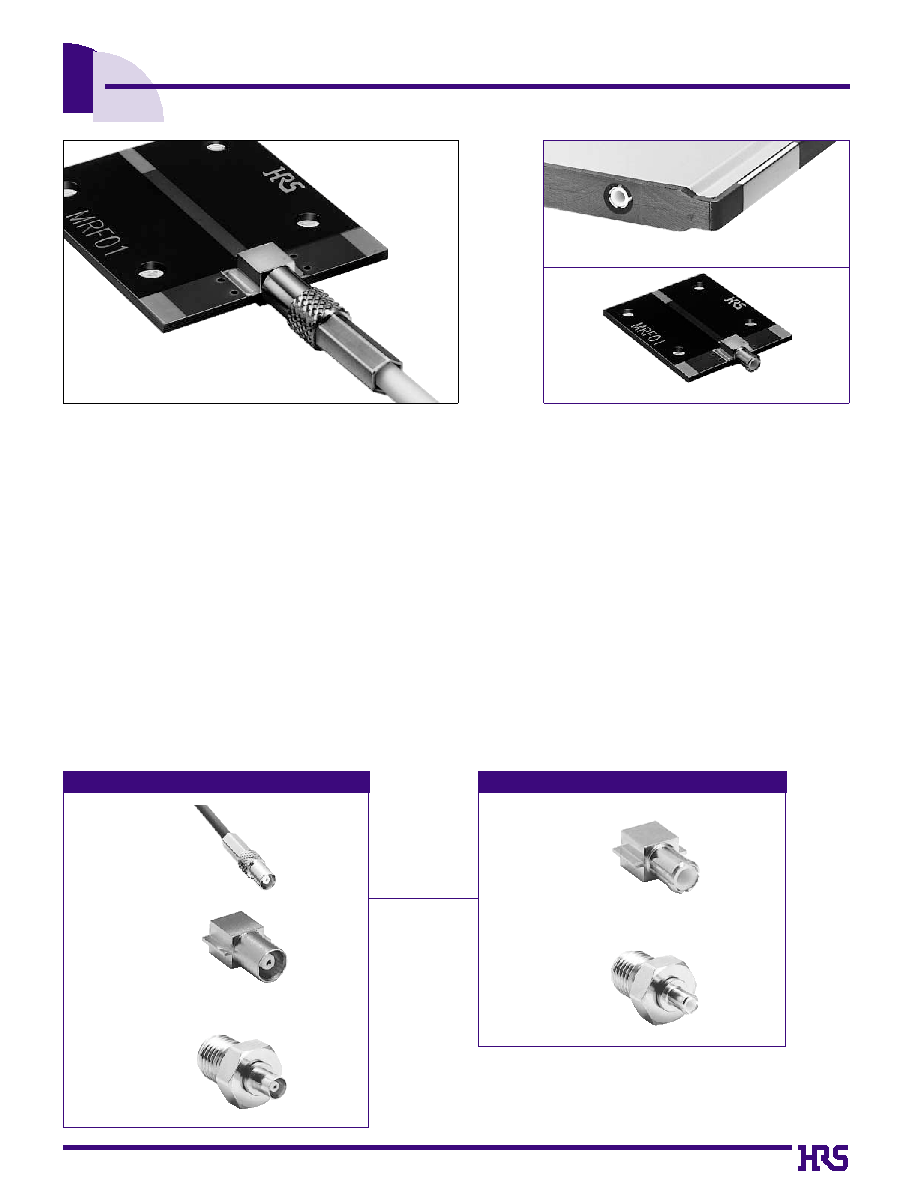

Modem Card Mounting Example

(A special frame kit has not been manufactured.)

Board Mounting Example

Jack Side

sJack

MRF01-J-178

sReceptacle

MRF 01-R-1

sConversion Adapter

(Coupling portion: MRF01 side jack - SMA side jack)

MRF01J-HRMJ

Plug Side

sPlug Receptacle

MRF01-PR-1

sConversion Adapter

(Coupling portion: MRF01 side plug - SMA side jack)

MRF01P-HRMJ

3. High Degree of Matching

These connectors offer high frequency performance from

0 to 3 GHz with a V.S.W.R. of 1.3 or less.

4. Accommodates Ultra-Fine Cable

Suitable cable ...RG-178B/U (Ø1.8)

...RG-196A/U (Ø 2)

sApplications

Wireless LAN cards, GPS cards, and miniature wireless

communications devices.

sFunction Diagrams
