JH177128160A
VER: 3.01
- 4 -
Issue date: 2013/08/01
JEWEL HILL ELECTRONIC CO.,LTD.

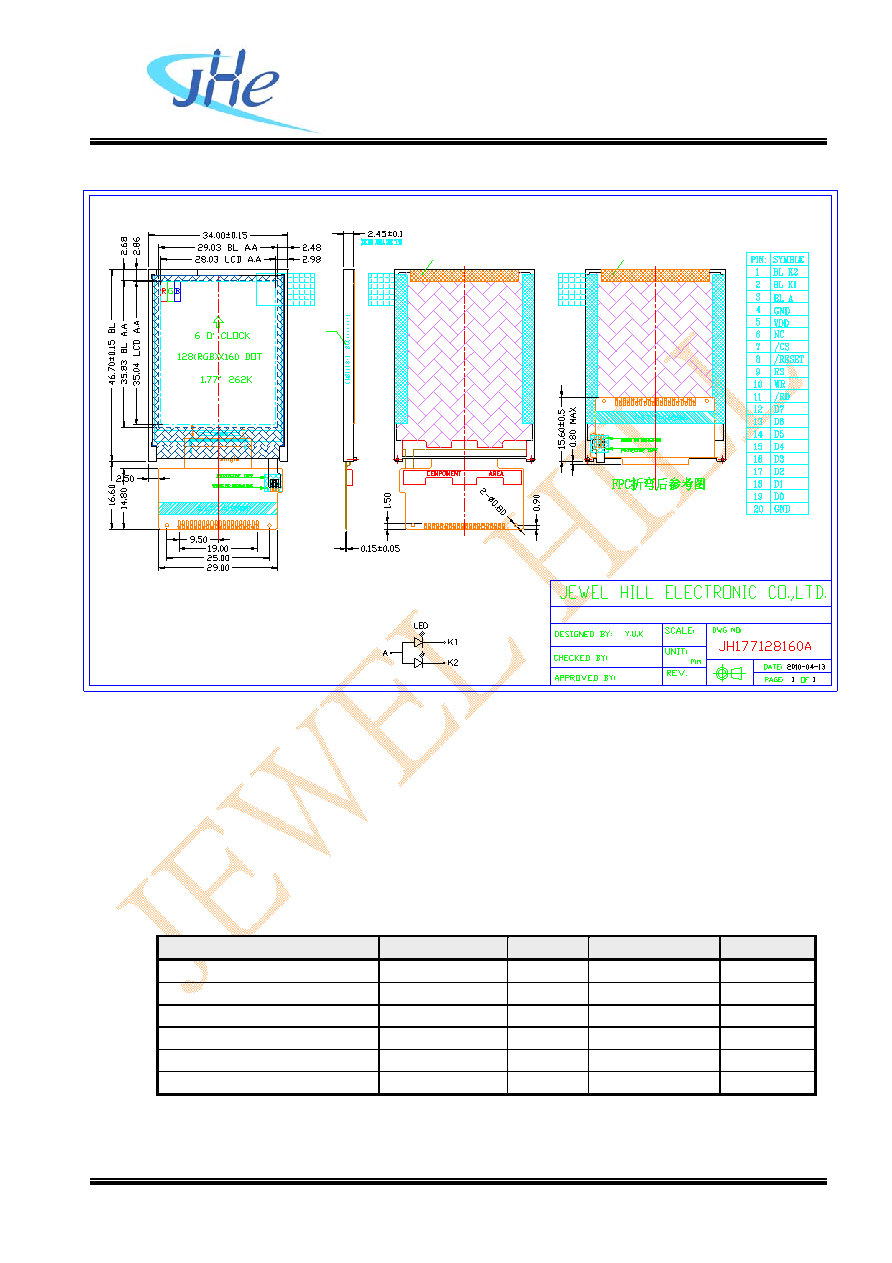

2. EXTERNAL DIMENSIONS.
1
20
K1A
K2
K2
A
K1
DOUBLESIDE TAPE(T=0.05MM)
Specification:
2). Viewing Direction: 6 O'clock
1). BOE 1.77 TFT-LCD Type: 262/65K Color.
5). Backlight: White,2LEDs parallel Connection.
4). Driver IC:HX8353-D
Storage temp.: -30°C~+80°C
3). Operating temp.: -20°C~+70°C
K1
AK2
K2
A K1
1
20
易撕纸
VIEWING DIRECTION
20
1
20
1
1.LED CIRCUIT DIAGRAM:
NOTES:
喷
码
DOUBLESIDE TAPE(T=0.05MM)
3.ABSOLTE MAXIMUM RATINGS.
The absolute maximum ratings are list on Table 3.1. When used out of the
absolute maximum ratings, the LCM may be permanently damaged. Using
the LCM within the following electrical characteristics limit is strongly
recommended for normal operation. If these electrical characteristic
conditions are exceeded during normal operation, the LCM will malfunction
and cause poor reliability.
Table 3.1
Module Absolute Maximum Ratings
Item
Symbol
Unit
Value
Note
Power Supply Voltage (1)
Vdd
V
-0.3 to +3.7
Power Supply Voltage (2)
VGH ~ VSS
V
-0.3 to +16
Power Supply Voltage (3)
VSS ~ VGL
V
-0.3 to +16
Operating Temperature
Top
°C
-20 to +70
Storage Temperature
Tst
°C
-30 to +80
Operating Humidity
Hop
%(RH)
10~90
