Application Information (continued)

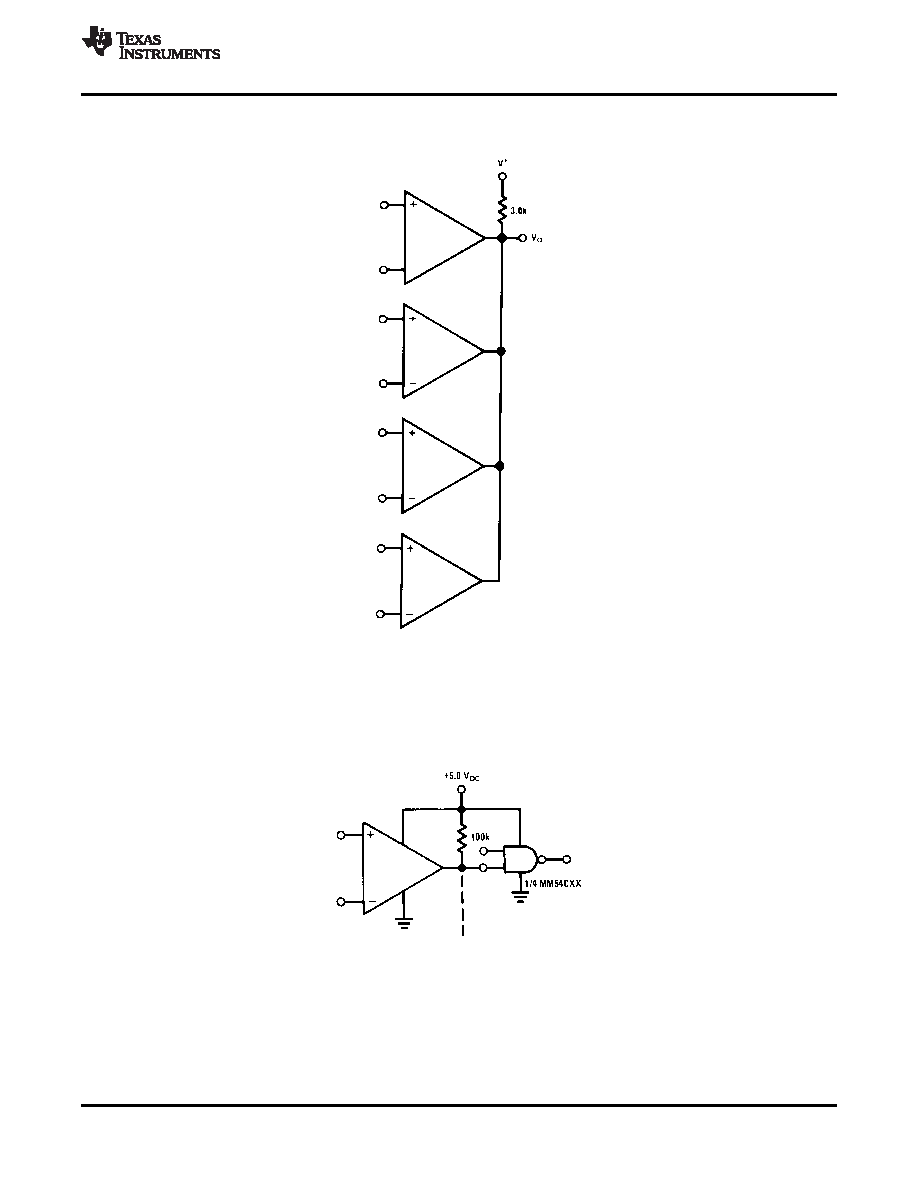

Figure 14. ORing the Outputs

8.1.4 Driving CMOS and TTL

The output of the comparator is capable of driving CMOS and TTL Logic circuits. The pull-up resistor may be

pulled-up to any voltage equal to, or less than the supply voltage on V+. However, it must not be pulled-up to a

voltage higher than V+.

Figure 15. Driving CMOS
