LP38853
SNVS335D – DECEMBER 2006 – REVISED APRIL 2013
www.ti.com
Typical Performance Characteristics
Refer to the Typical Application Circuit. Unless otherwise specified: TJ = 25°C, R1 = 1.40 kΩ, R2 = 1.00 kΩ, CFF= 0.01 µF, VIN
= VOUT(NOM) + 1V, VBIAS = 3.0V, IOUT = 10 mA, CIN = 10 µF Ceramic, COUT = 10 µF Ceramic, CBIAS = 1 µF Ceramic, , CSS =
Open.

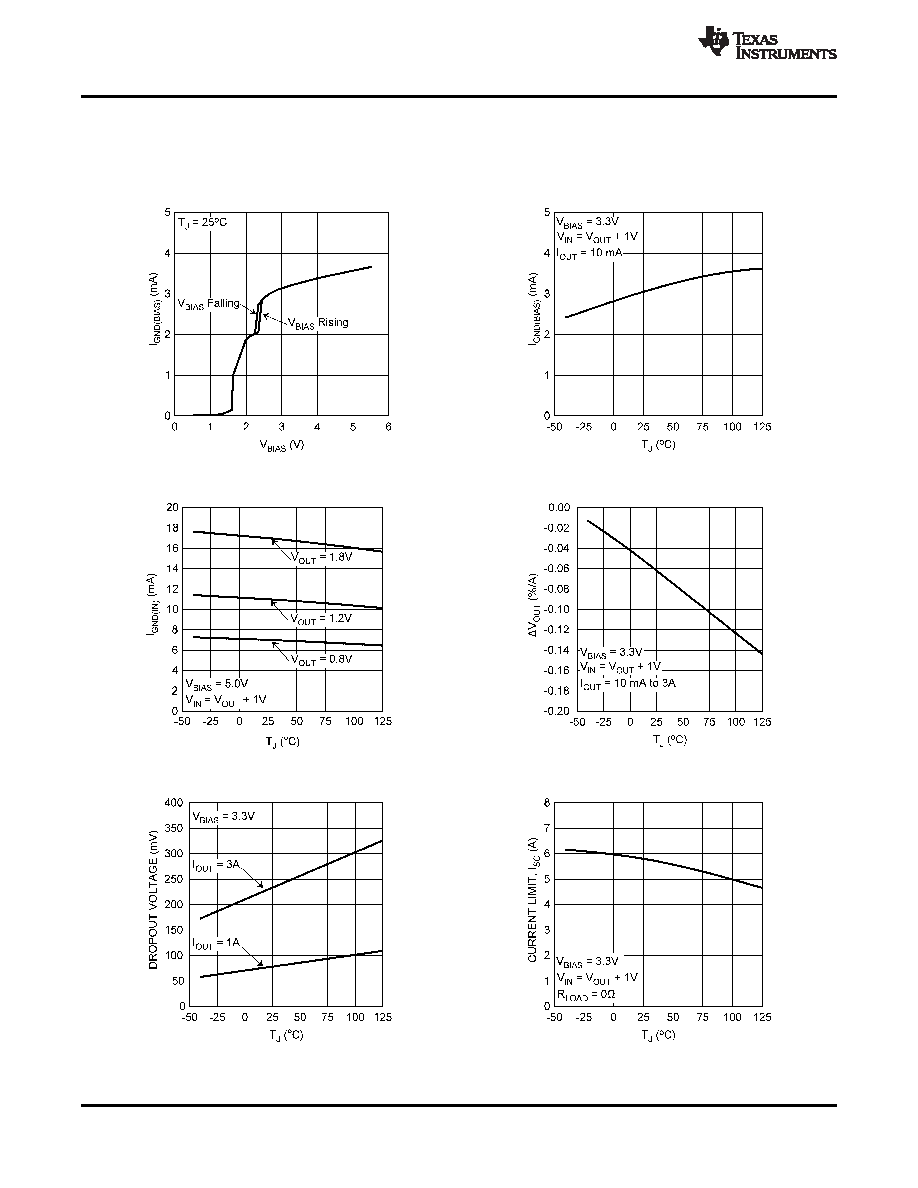

VBIAS Ground Pin Current (IGND(BIAS)) vs VBIAS
VBIAS Ground Pin Current (IGND(BIAS)) vs Temperature
Figure 4.
Figure 5.
VIN Ground Pin Current vs Temperature
Load Regulation vs Temperature
Figure 6.
Figure 7.
Dropout Voltage (VDO) vs Temperature
Output Current Limit (ISC) vs Temperature
Figure 8.
Figure 9.
6
Submit Documentation Feedback
Copyright © 2006–2013, Texas Instruments Incorporated
Product Folder Links: LP38853
