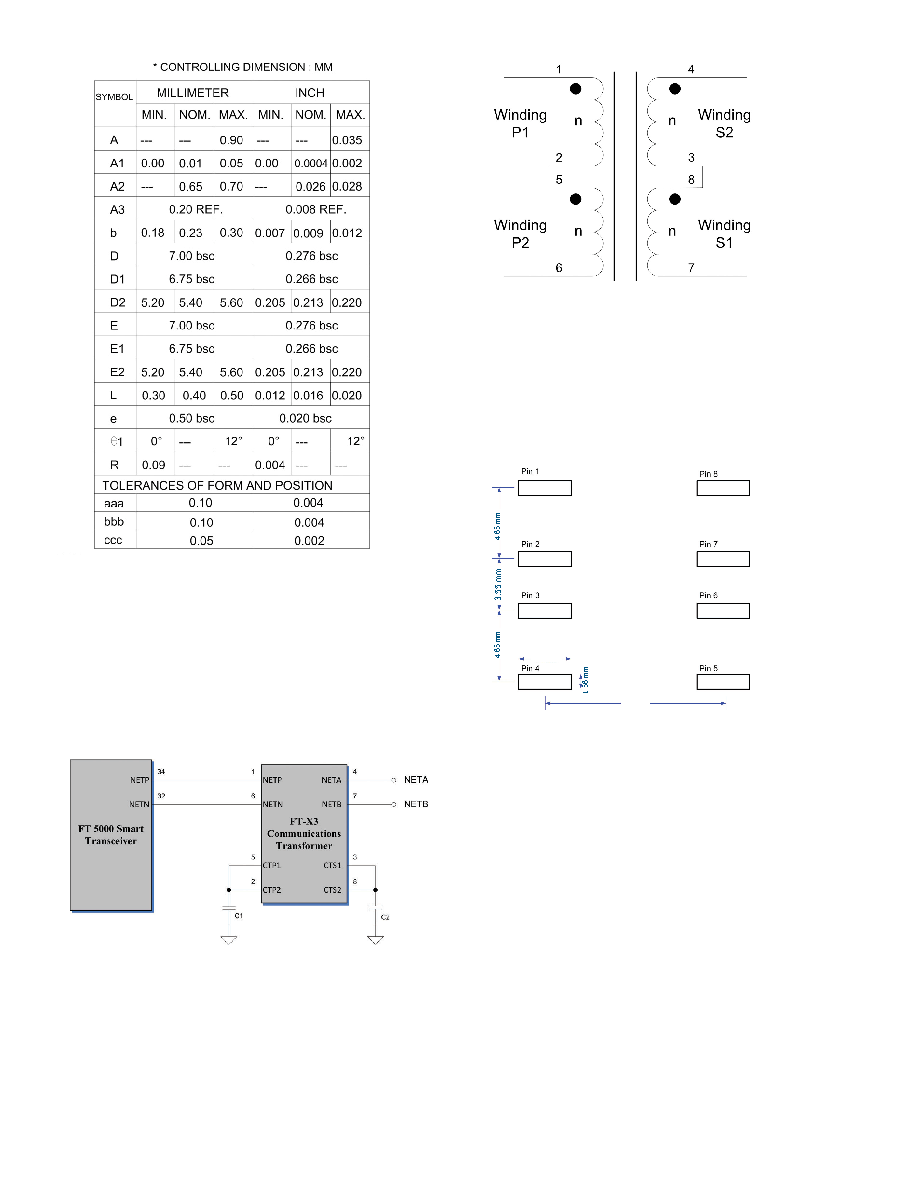

FT-X3 Communications Transformer
Pin Descriptions
Figure 4: FT-X3 Communications Transformer
Pinout Diagram
Figure 4: FT-X3 Communications Transformer Electrical
Connection Schematic (winding connections are made on
the PCB)
Recommended FT-X3 Communications Transformer
Pad Layout
The FT-X3 Communications Transformer is rotationally
symmetric. Hence, the transformer package does not
have a marking for Pin 1.
Figure 5: FT-X3 Transformer SMT Layout
Pad Pattern
Notes
1. All dimensions are in millimeters.
2. Dimensions and tolerances conform to
ASME Y14.5M.-1994.
3. Package warpage max. 0.08 mm.
4. Package corners unless otherwise specified
are R0.175±0.025 mm.
Recommendation: Add vias to the ends of each pin pad
connection (just outside of the SMT pad rectangles) to
provide additional mechanical support for the transformer.
4.27 mm
13.5 mm
