4853

FEATURES:

Replaces MSK4850

Full Three Phase Bridge Configuration with SCR/IGBT Brake

600V Rated Voltage

150A Continuous Output Current

Internal Zener Clamps on Gates

Proprietary Encapsulation Provides Near Hermetic Performance

HI-REL Screening Available (Modified 38534)

Light Weight Domed ALSIC Baseplate

Robust Mechanical Design for Hi-Rel Applications

Ultra-Low Inductance Internal Layout

Withstands 96 Hours HAST and Thermal Cycling (-55°C to +125°C)

600V/150A

THREE PHASE BRIDGE

PEM WITH BRAKE

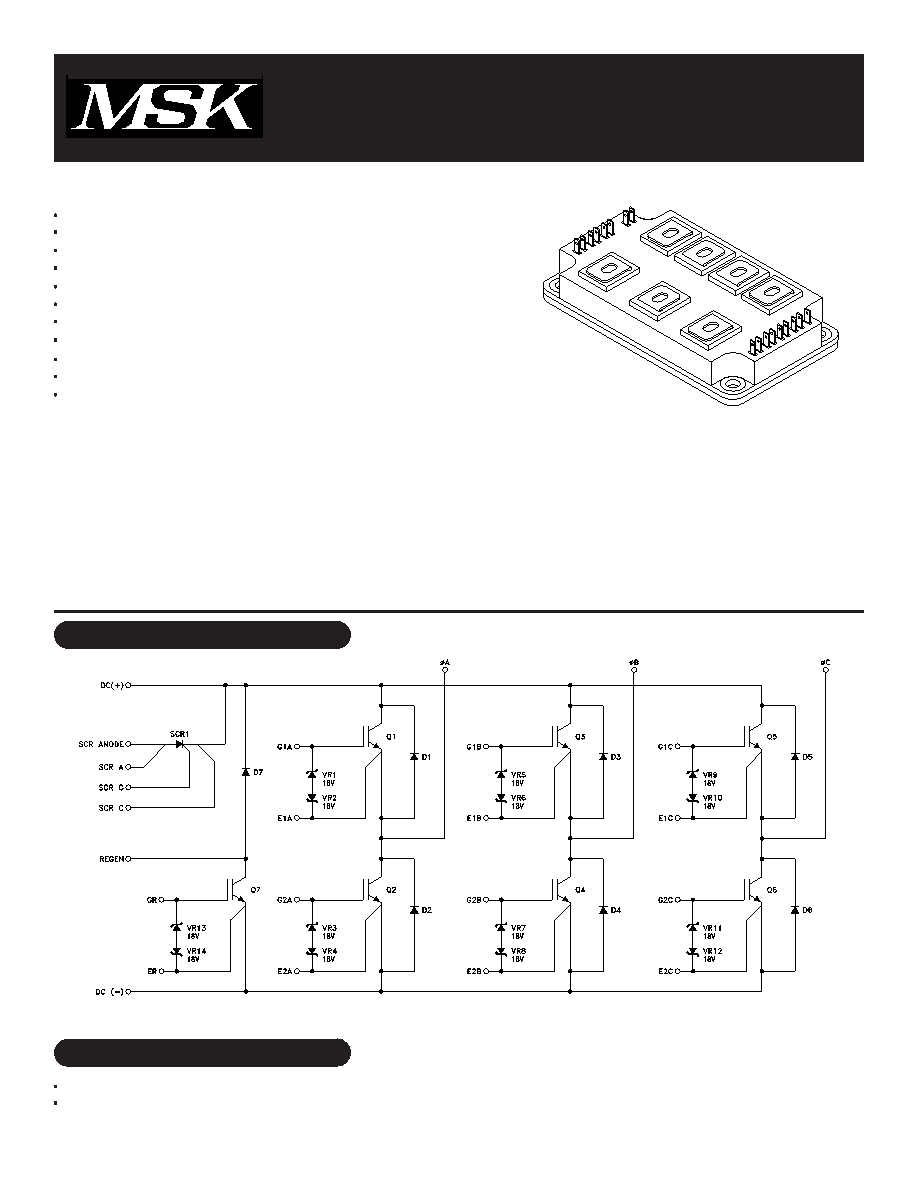

EQUIVALENT SCHEMATIC

DESCRIPTION:

The MSK4853 is one of a family of plastic encapsulated modules (PEM) developed specifically for use in military, aerospace

and other severe environment applications. The Three Phase Bridge configuration along with the SCR/IGBT brake circuit and

600 volt/150 Amp rating make it ideal for use in high current motor drive and inverter applications. The Aluminum Silicon Carbide

(AlSiC) baseplate offers superior flatness and light weight; far better than the copper or copper alloys found in most high power

plastic modules. The high thermal conductivity materials used to construct the MSK4853 allow high power outputs at elevated

baseplate temperatures. Our proprietary coating, SEES™ - Severe Environment Encapsulation System - protects the internal

circuitry of MSK PEM's from moisture and contamination, allowing them to pass the rugged environmental screening require-

ments of military and aerospace applications. MSK PEM's are also available with industry standard silicone gel coatings for a

lower cost option.

TYPICAL APPLICATIONS

1

Motor Drives

Inverters

8548-20 Rev. F 12/14

MIL-PRF-38534 AND 38535 CERTIFIED FACILITY
