│ MODEL: PJ-059AH │ DESCRIPTION: DC POWER JACK

date

01/06/2014│ page 2 of 3

3

2

1

0.185

0.157

4.00

0.453

11.5

0.118

3.0

0.118

3.0

4.7

2.20 0.087

3.0 0.118

0.091

2.30

0.453

11.5

4.00 0.157

3.0 0.118

4.7 0.185

6.50 0.256

3.5 0.138

0.3 (3 PLCS)

23

1

3.50 0.138

15.2 0.598

1.00 0.039

(3 PLCS)

0.433

5.70

0.354

0.224

11.0

0.079

2.00

9.0

(2 PLCS)

0.140

3.55

R

1.8 0.071

+0.00

-0.10

21

TOP VIEW

PCB LAYOUT

3

1.00X1.60

(3 PLCS)

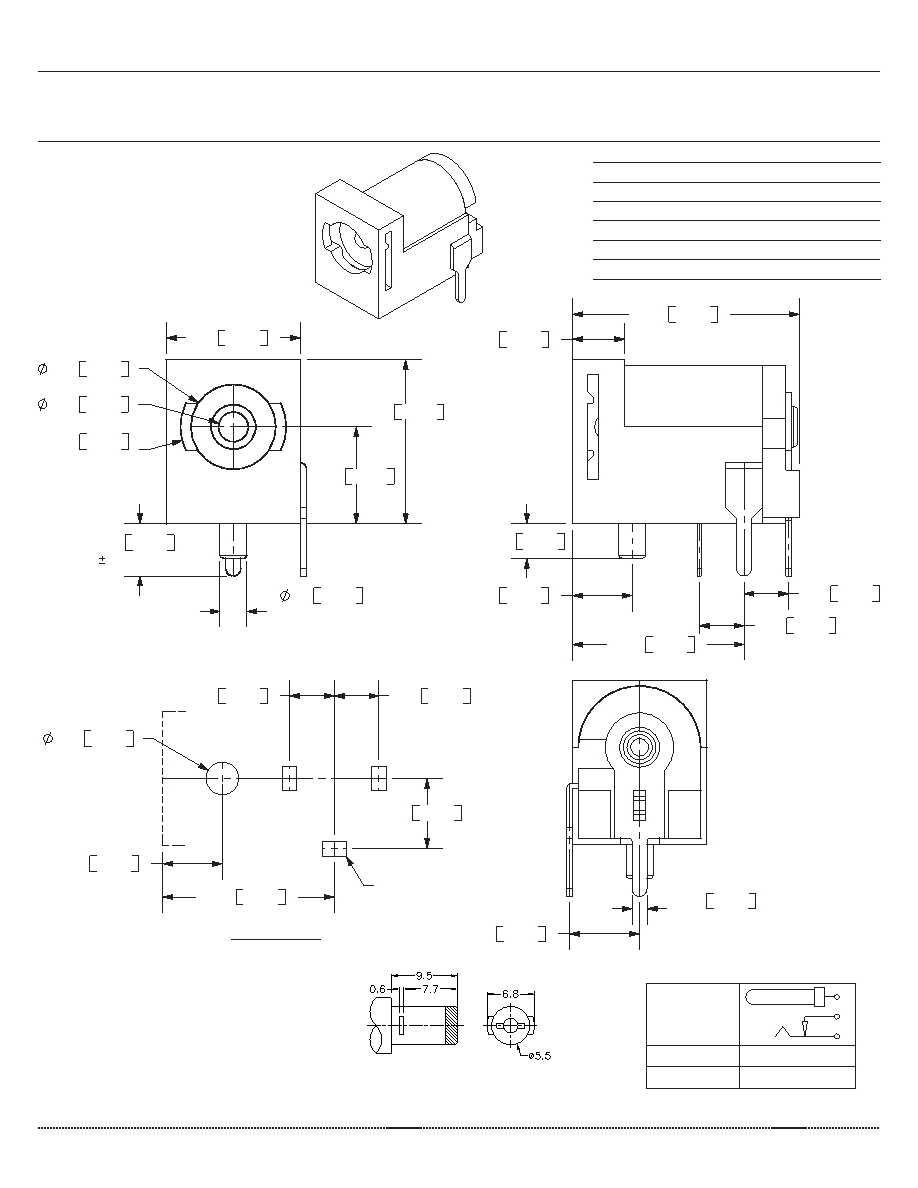

MECHANICAL DRAWING

MATERIAL

PLATING

center pin

copper

nickel

terminal 1

brass

silver

terminal 2

copper alloy

silver

terminal 3

brass

silver

plastic

PBT

units: mm[inches]

tolerance:

X.X ±0.2mm

X.XX ±0.1mm

X.XXX ±0.05mm

Note:

1. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.

SCHEMATIC

Model

PJ-059AH

Center Pin

Ø2.0 mm

MATING PLUG

Jack Insertion Depth: 9.8 mm
