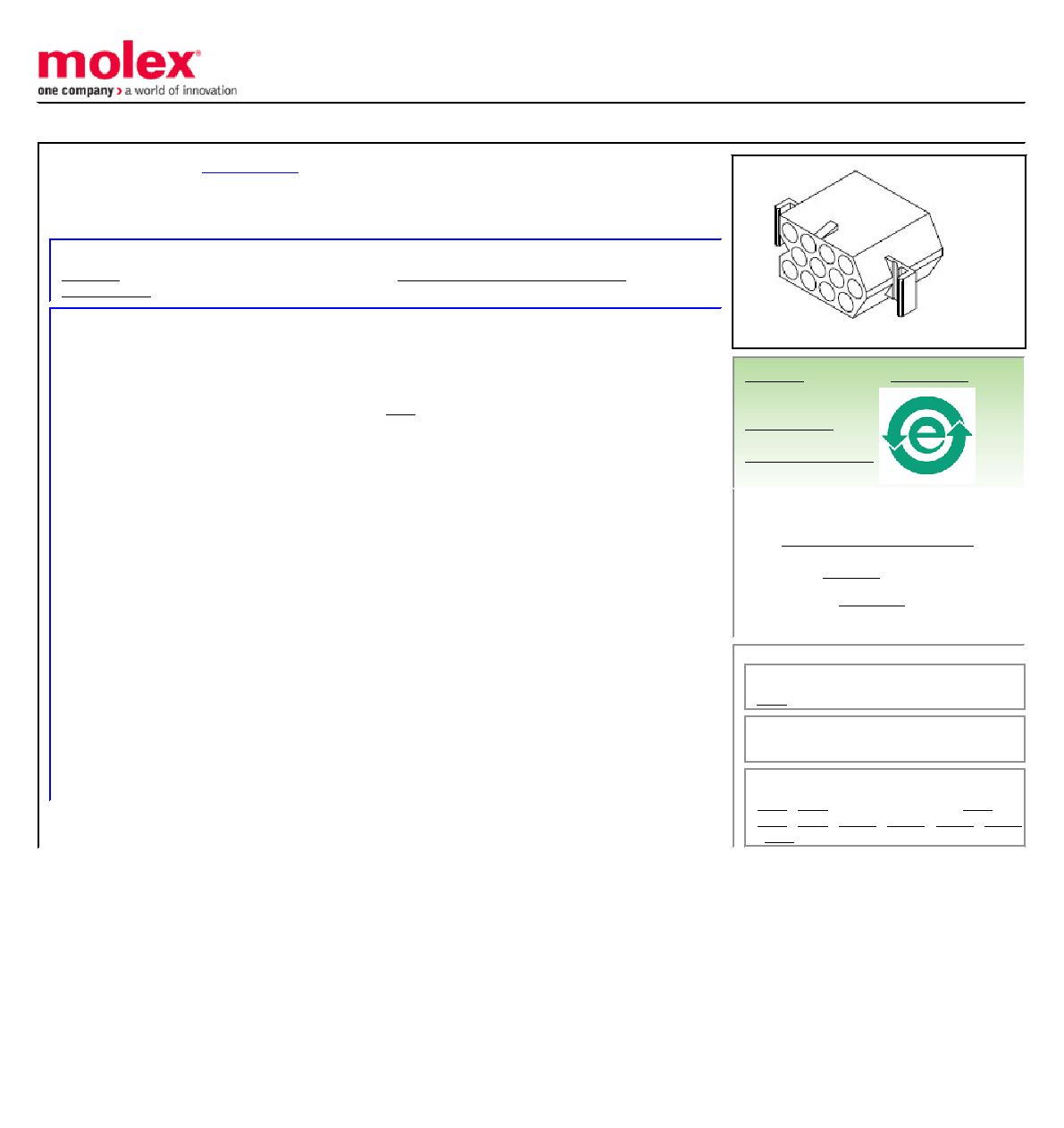

Part Number:

03-12-1121

Status:

Active

Description:

3.18mm Diameter, HCS125, Pin and Socket Receptacle Housing, 12 Circuits, 3 Row,

with Panel Mount Ears

Documents:

3D Model

RoHS Certificate of Compliance (PDF)

Drawing (PDF)

Agency Certification

UL

E29179

General

Product Family

Crimp Housings

Series

2201

Application

Power, Wire-to-Wire

Product Name

HCS-125

UPC

800754942553

Physical

Circuits (maximum)

12

Color - Resin

Natural

Flammability

94V-2

Gender

Dual

Glow-Wire Compliant

No

Material - Resin

Nylon

Net Weight

7.786/g

Number of Rows

3

Packaging Type

Bag

Panel Mount

Yes

Pitch - Mating Interface

6.60mm

Stackable

No

Temperature Range - Operating

-40°C to +105°C

Material Info

Old Part Number

2201-R

Reference - Drawing Numbers

Sales Drawing

SD-2201-*

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

2201Series

Mates With

2201p

Use With

8947 , 1900 male crimp terminals, 1901 ,

2046 , 2047 , 42546 , 42547 , 42554 , 42555

, 8946
