E3FZ/E3FR

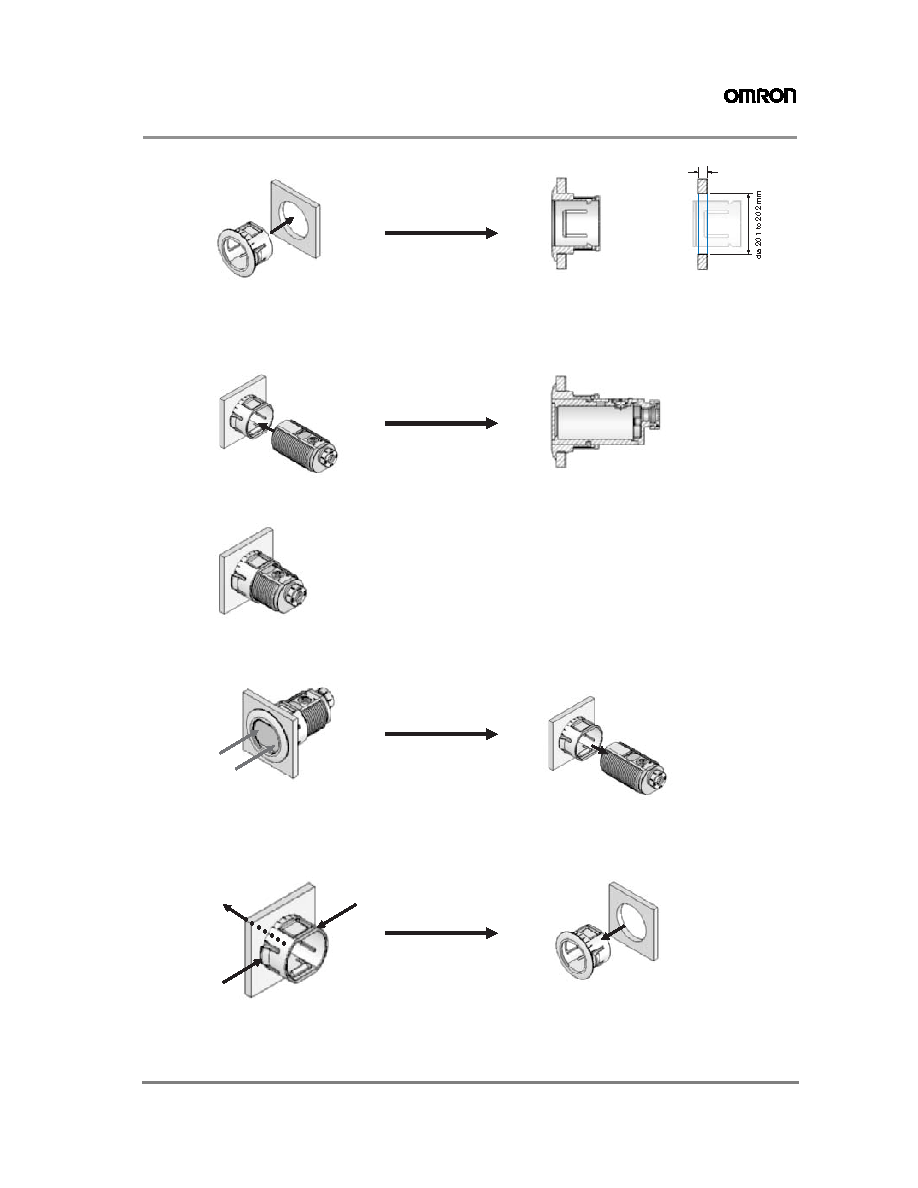

Mounting and dismounting

Mounting

Dismounting

Insert the snap holder into the

mounting hole from the front

Insert the sensor into the snap

holder from the back

Verify the correct position

(a clicking sound can be heard)

Verify the correct position

(a clicking sound can be heard)

Step 1

Step 2

2.5 to 2.9 mm

Apply soft pressure to the sensor

lens in the indicated areas (e.g. with

two thumbs)

Press down both snap-fits and push

the snap holder forward.

Remove the sensor

Remove the snap holder

Step 1

Step 2
