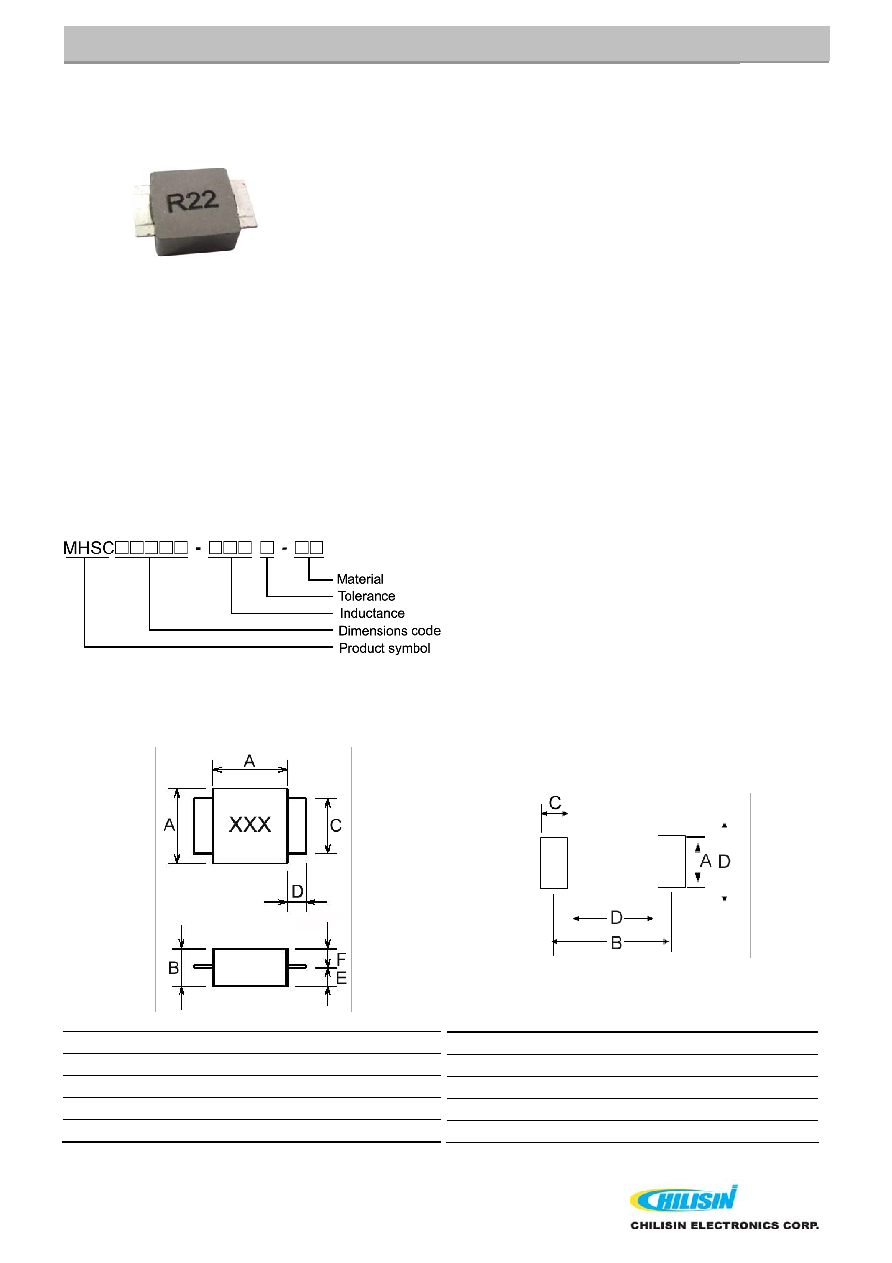

Molding Power Choke – MHSC Series

MHSC Series

MHSC series is designed for low profile type with low DCR and ultra

large current, especially for height limited boards. Its molded magnetic

shielded type is suitable for high-density mounting and ultra low buzz

noise. Soldering conditions can be easily confirmed when mounting

onto board. This series also provides customers with embossed carrier

type packaging for automatic mounting machine.

Features

Applications

 RoHS compliant

 Ultra low profile on board

 Shielded construction

 Ultra low buzz noise due to molding construction

 High density DC/DC converter in height limited board

 POL converters

 High current VRM/VDR for notebook / server / desktop CPU

 High current DC/DC converter in distributed power system

 High speed charger

Product Identification

Shape and Dimensions

Recommended Pattern

Dimensions in mm

TYPE

A

B

C

D

E

F

04020

4.2±0.2 2.0

+0.2

-0.3

1.5±0.2 1.2±0.3

1.2

1.0

06022

6.6±0.2 2.2

+0.2

-0.3

3.0±0.2 1.5±0.3

1.4

1.0

06036

6.6±0.2 3.6

+0.2

-0.3

3.0±0.2 1.5±0.3

2.3

1.5

08036

8.0±0.2 3.6

+0.2

-0.3

6.0±0.2 2.0±0.3

2.3

1.3±0.2

Dimensions in mm

TYPE

A

B

C

D

04020

2.0

6.5

1.8

4.5

06022

3.5

9.5

2.2

6.9

06036

3.5

9.5

2.2

6.9

08036

6.0

11.9

3.0

8.4
