Pin Configuration and Package

Figure 6.1

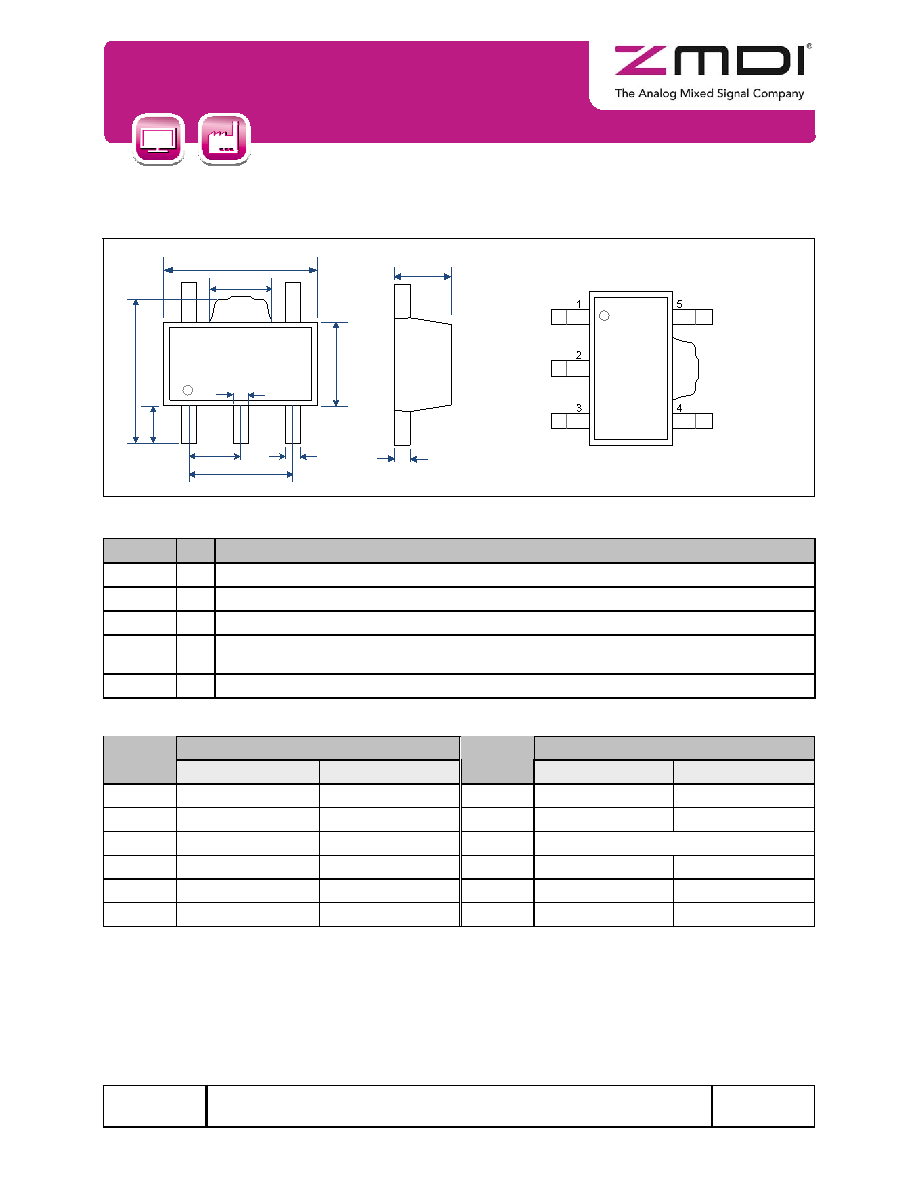

Pin Configuration and Package Drawing SOT89-5

Table 4.1

Pin Description SOT89-5

Table 4.2

Package Dimensions SOT89-5

Dimension (mm)

Dimension (mm)

Symbol

Min

Max

Symbol

Min

Max

A

1.400

1.600

E

2.300

2.600

b

0.320

0.520

E1

3.940

4.250

b1

0.360

0.560

e

1.500 Typ

c

0.350

0.440

e1

2.900

3.100

D

4.400

4.600

L

0.900

1.100

D1

1.400

1.800

Pin Name

No.

Description

LX

1

Power switch drain

GND

2

Ground (0V)—see section 7.4 for layout considerations

ADJ

3

Output current control pin—see section 2.3 for details

ISENSE

4

section 2.3.1 for details

VIN

5

Supply voltage (6V to 40V)—see section 7.3 for layout considerations

b

b1

e1

e

D

D1

L

E1

E

c

A

LX

GND

Thermal Pad

ADJ
