DS1985

23 of 25

When reading the data memory of the DS1985 with the Extended Read Memory command, there are two

situations where a 16-bit CRC is transmitted. One 16-bit CRC follows each Redirection Byte, another 16-

bit CRC is received after the last byte of a memory data page is read. The CRC at the end of the memory

page is always the result of clearing the CRC generator and shifting in the data bytes beginning at the first

addressed memory location of the EPROM data page until the last byte of this page. With the initial pass

through the Extended Read Memory flow chart the 16-bit CRC value is the result of shifting the

command byte into the cleared CRC generator, followed by the 2 address bytes and the Redirection Byte.

Subsequent passes through the Extended Read Memory flow chart will generate a 16-bit CRC that is the

result of clearing the CRC generator and then shifting in the Redirection Byte only.

When writing to the DS1985 (either data memory or status memory), the bus master receives a 16-bit

CRC to verify the correctness of the data transfer before applying the programming pulse. With the initial

pass through the Write Memory/Status flow chart the 16-bit CRC will be generated by clearing the CRC

generator, shifting in the command, address low, address high and the data byte. Subsequent passes

through the Write Memory/Status flow chart due to the DS1985 automatically incrementing its address

counter will generate an 16-bit CRC that is the result of loading (not shifting) the new (incremented)

address into the CRC generator and then shifting in the new data byte.

The comparison of CRC values and decision to continue with an operation are determined entirely by the

bus master. There is no circuitry on the DS1985 that prevents a command sequence from proceeding if

the CRC stored in or calculated by the DS1985 does not match the value generated by the bus master. For

more details on generating CRC values including example implementations in both hardware and

software, see the Book of DS19xx iButton Standards.

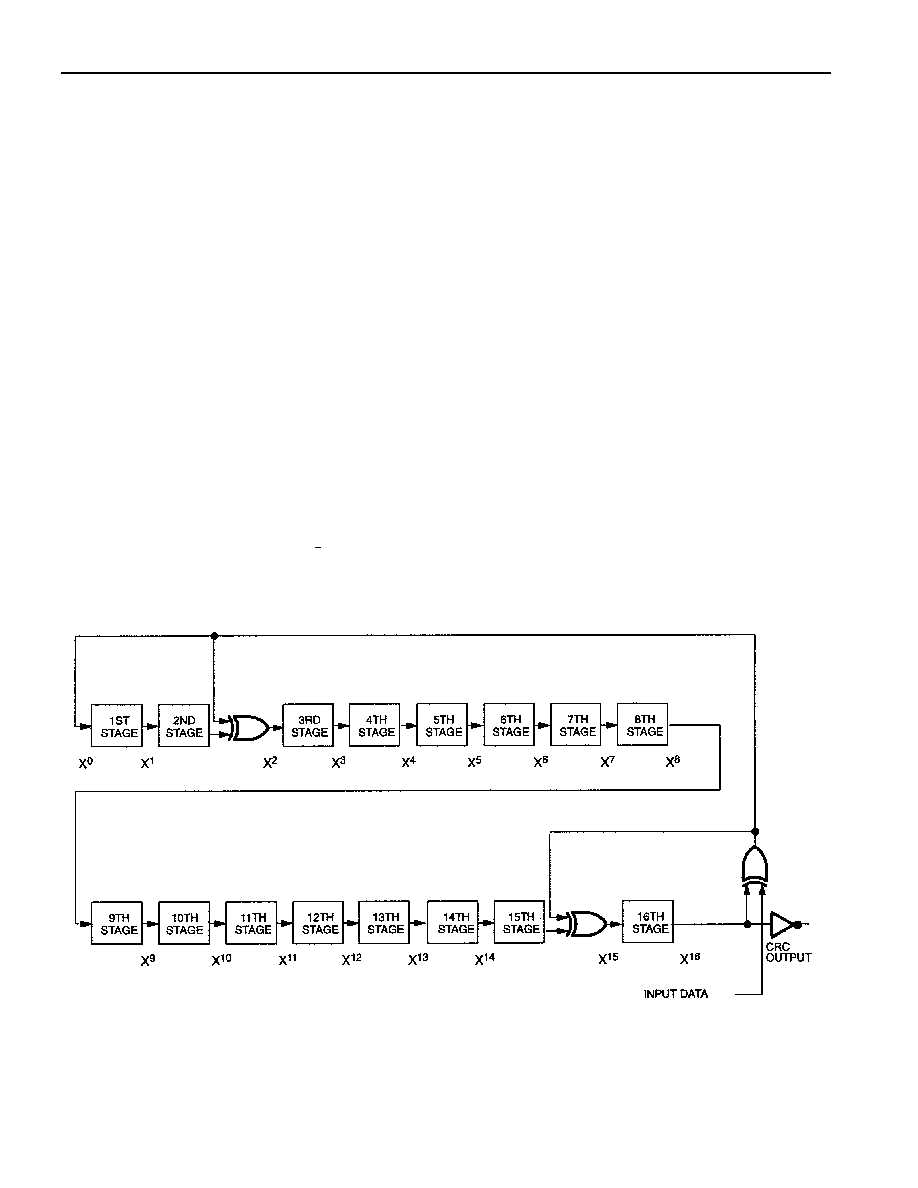

CRC-16 HARDWARE DESCRIPTION AND POLYNOMIAL Figure 12

POLYNOMIAL = X
