NX8663JB-BC
R08DS0063EJ0100 Rev.1.00
Page 2 of 5
Jul 05, 2012

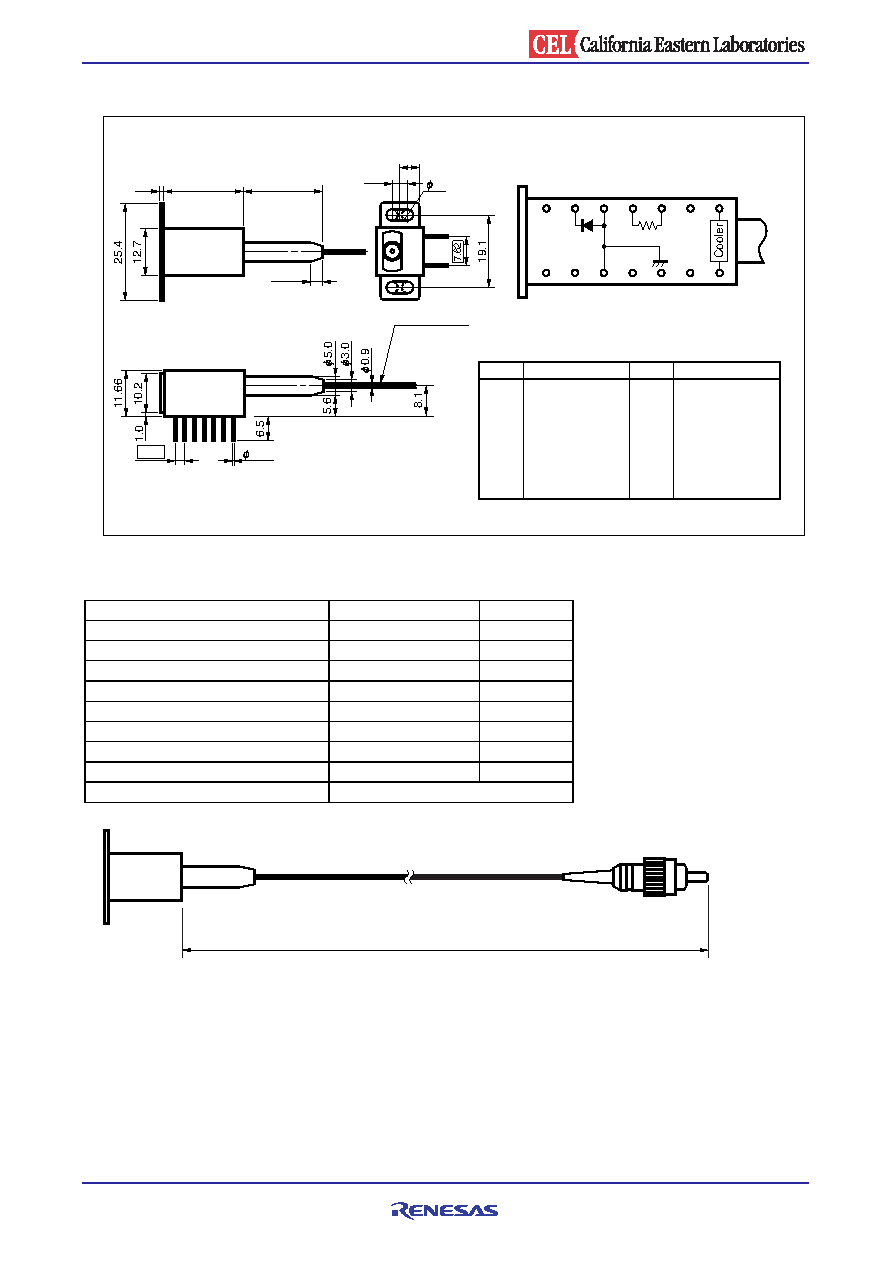

PACKAGE DIMENSIONS (UNIT: mm)
Optical Fiber
SMF,
Length: 1 m MIN.
#8
#7
#1
#14
LD
–
+
BOTTOM VIEW
Thermistor
Case
1
2
3
4
5
6
7
Cooler Anode
NC
NC
NC
Laser Anode,
Case Ground
NC
NC
8
9
10
11
12
13
14
NC
Laser Cathode
Laser Anode,
Case Ground
Thermistor
Thermistor
NC
Cooler Cathode
Pin No.
Pin No.
PIN CONNECTIONS
Function
Function
1.0
20.8
21.3
4.0
3.2
5.1
2.54
0.45
3.0
OPTICAL FIBER CHARACTERISTICS
Parameter
Specification
Unit
Mode Field Diameter
9.3
± 0.5
μm
Cladding Diameter
125
±2
μm
Maximum Cladding Noncircularity
2
%
Maximum Core/Cladding Concentricity
1.6
%
Outer Diameter
0.9
±0.1
mm
Cut-off Wavelength
1 100 to 1 280
nm
Minimum Fiber Bending Radius
30
mm
Fiber Length
1 000 MIN.
mm
Flammability
UL1581 VW-1
FC-UPC Connector
Fiber Length: 1 000 mm MIN.
