AS1353/AS1356
Data Sheet - Ty pi cal Operating Characte ristics

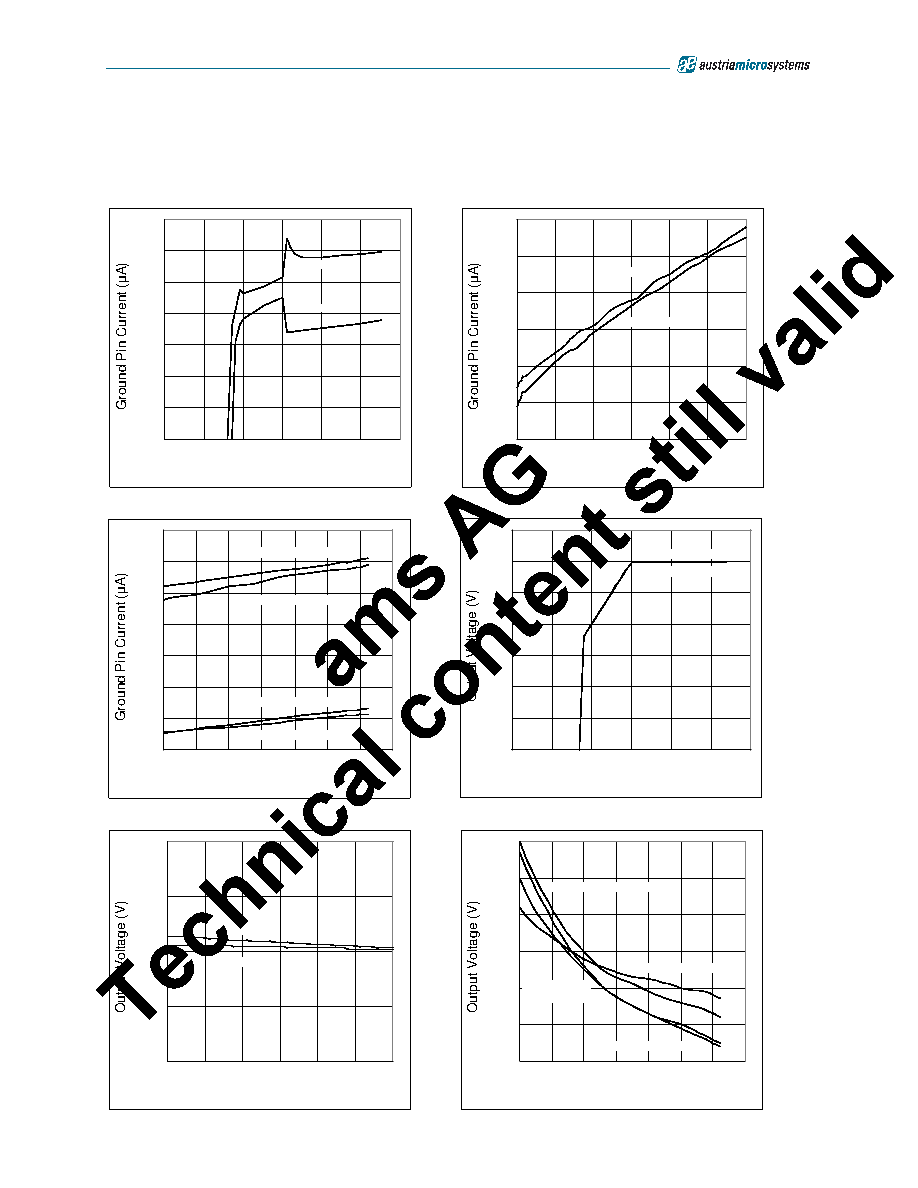

7 Typical Operating Characteristics
VOUT = +3.0V, VIN = +3.6V, CIN = COUT = 1µF, SHDNM = IN, TAMB = +25ºC (unless otherwise specified)
Figure 3. Ground Pin Current vs. Input Voltage
Figure 4. Ground Pin Current vs. Output Load
Figure 5. Ground Pin Current vs. Temperature
Figure 6. Output Voltage vs. Input Voltage
Figure 7. Output Voltage vs. Output Load
Figure 8. Output Voltage vs. Temperature
0
20
40
60
80
100
120
140
0123456
Input Voltage (V)
60
70
80
90
100
110
120
0
25
50
75
100
125
150
Output Load (mA)
IOUT = 0mA
IOUT = 150mA
VIN = 3.5V
VIN = 5V
60
70
80
90
100
110
120
130
-40
-20
0
20
406080
100
Temperature (°C)
VIN = 3.6V, IOUT = 150mA
VIN = 5V, IOUT = 150mA
VIN = 3.6V, IOUT = 0mA
VIN = 5V, IOUT = 0mA
0
0.5
1
1.5
2
2.5
3
3.5
01
2
3
45
6
Input Voltage (V)
IOUT = 0mA
IOUT = 150mA
2.9
2.95
3
3.05
3.1
0
25
50
75
100
125
150
Output Load (mA)
VIN = 5V
VIN = 3.6V
2.98
2.99
3
3.01
3.02
3.03
3.04
-40
-20
0
20
40
60
80
100
Temperature (°C)
VIN = 5V, IOUT = 150mA
VIN = 3.6V, IOUT = 0mA
VIN = 3.6V, IOUT = 0mA
VIN = 3.6V,
IOUT = 150mA
