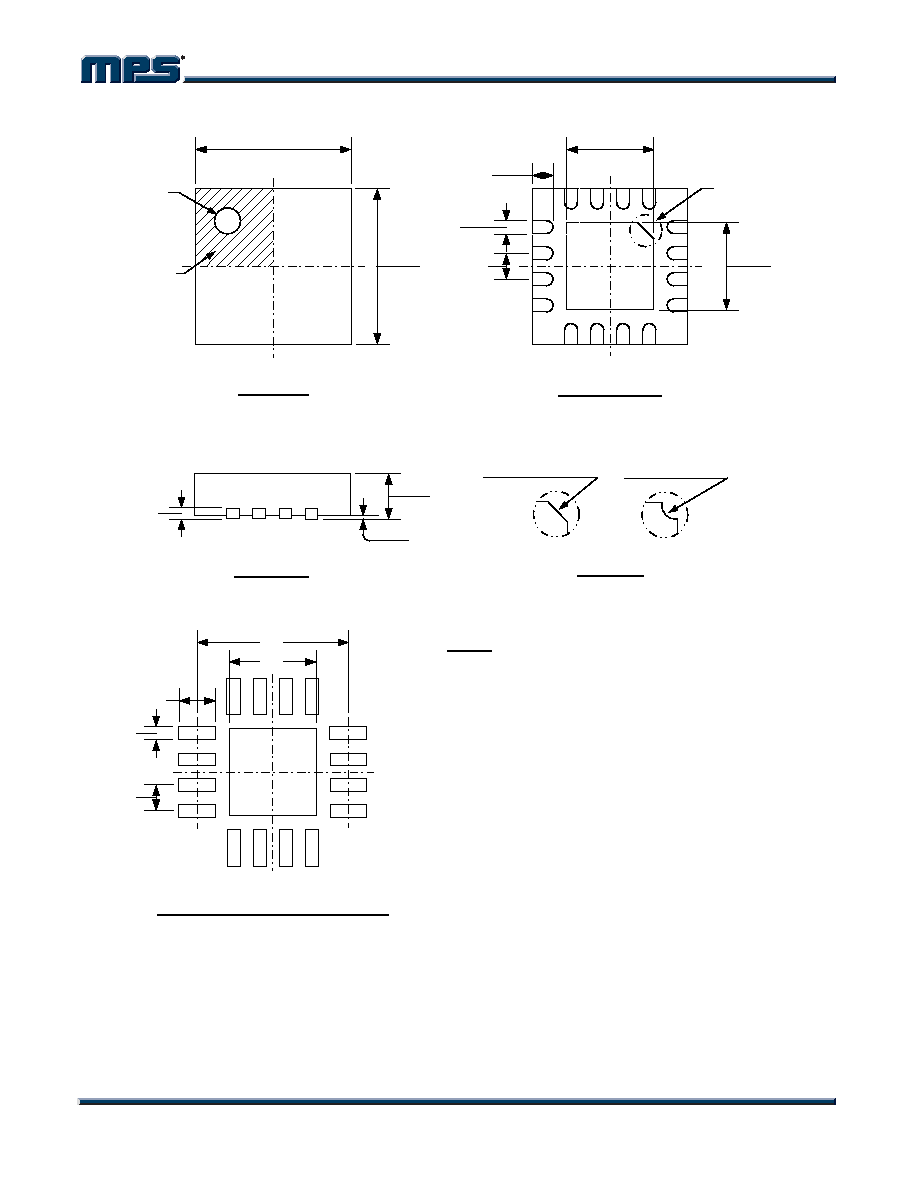

PACKAGE INFORMATION

SIDE VIEW

TOP VIEW

1

16

13

12

9

8

5

4

BOTTOM VIEW

2.90

3.10

1.50

1.80

2.90

3.10

1.50

1.80

0.50

BSC

0.18

0.30

0.80

1.00

0.00

0.05

0.20 REF

PIN 1 ID

MARKING

1.70

0.50

0.25

RECOMMENDED LAND PATTERN

2.90

NOTE:

1) ALL DIMENSIONS ARE IN MILLIMETERS.

2) EXPOSED PADDLE SIZE DOES NOT INCLUDE MOLD FLASH.

3) LEAD COPLANARITY SHALL BE 0.10 MILLIMETER MAX.

4) DRAWING CONFORMS TO JEDEC MO-220, VARIATION VEED-4.

5) DRAWING IS NOT TO SCALE.

PIN 1 ID

SEE DETAIL A

PIN 1 ID OPTION A

0.30x45º TYP.

PIN 1 ID OPTION B

R0.20 TYP.

DETAIL A

PIN 1 ID

INDEX AREA

0.70

0.30

0.50
