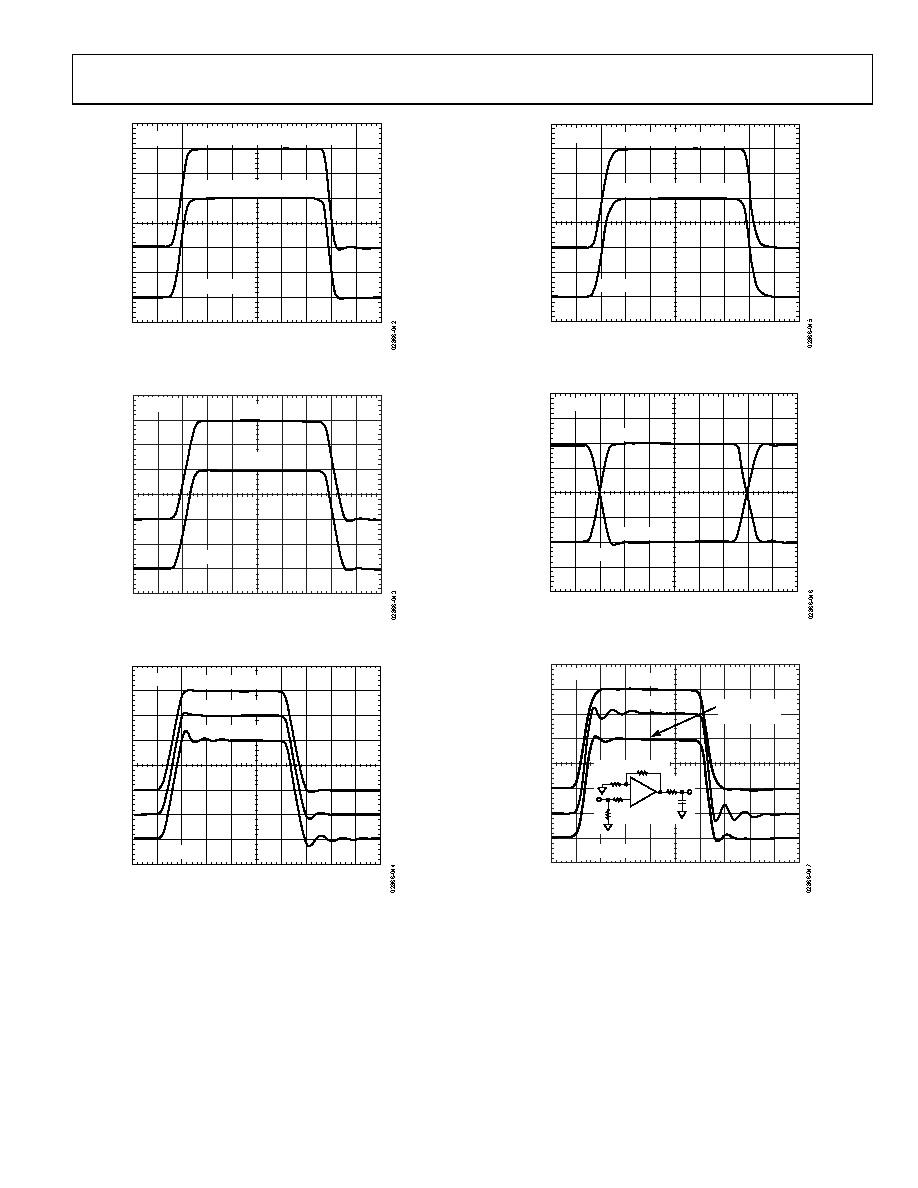

AD8007/AD8008
Rev. E | Page 13 of
20
50mV/DIV
010
20
30
40
50
TIME (ns)
G = +1
RL = 150Ω,VS = +5V AND ±5V
RL = 150Ω,VS = +5V AND ±5V
Figure 42. Small Signal Transient Response for
RL = 150 Ω, RL = 1 kΩ and VS = +5 V, VS = ±5 V
1V/DIV
G = +1
0
1020
30
405
TIME (ns)
RL = 150Ω
RL = 1kΩ
0
Figure 43. Large Signal Transient Response for RL = 150 Ω, RL = 1 kΩ
G = +2
1V/DIV
0
50
40
30
20
10
TIME (ns)
CLOAD = 0pF
CLOAD = 10pF
CLOAD = 20pF
Figure 44. Large Signal Transient Response for
CLOAD = 0 pF, CLOAD = 10 pF, and CLOAD = 20 pF
G = +2
50mV/DIV
010
20
30
40
5
TIME (ns)
0
RL = 150Ω,VS = +5V AND ±5V
RL = 1kΩ,VS = +5V AND ±5V
Figure 45. Small Signal Transient Response for
RL = 150 Ω, RL = 1 kΩ and VS = +5 V, VS = ±5 V
G = –1
1V/DIV
010
20
30
40
5
TIME (ns)
0
INPUT
OUTPUT
Figure 46. Large Signal Transient Response, G = −1, RL = 150 Ω
50mV/DIV
499Ω
499Ω
200Ω
49.9Ω
RSNUB
CLOAD
+
–
G = +2
010
20
30
40
5
TIME (ns)
CL = 0pF
CL = 20pF
CL = 20pF
RSNUB = 10Ω
0
Figure 47. Small Signal Transient Response, Effect of Series Snub Resistor
when Driving Capacitive Load
