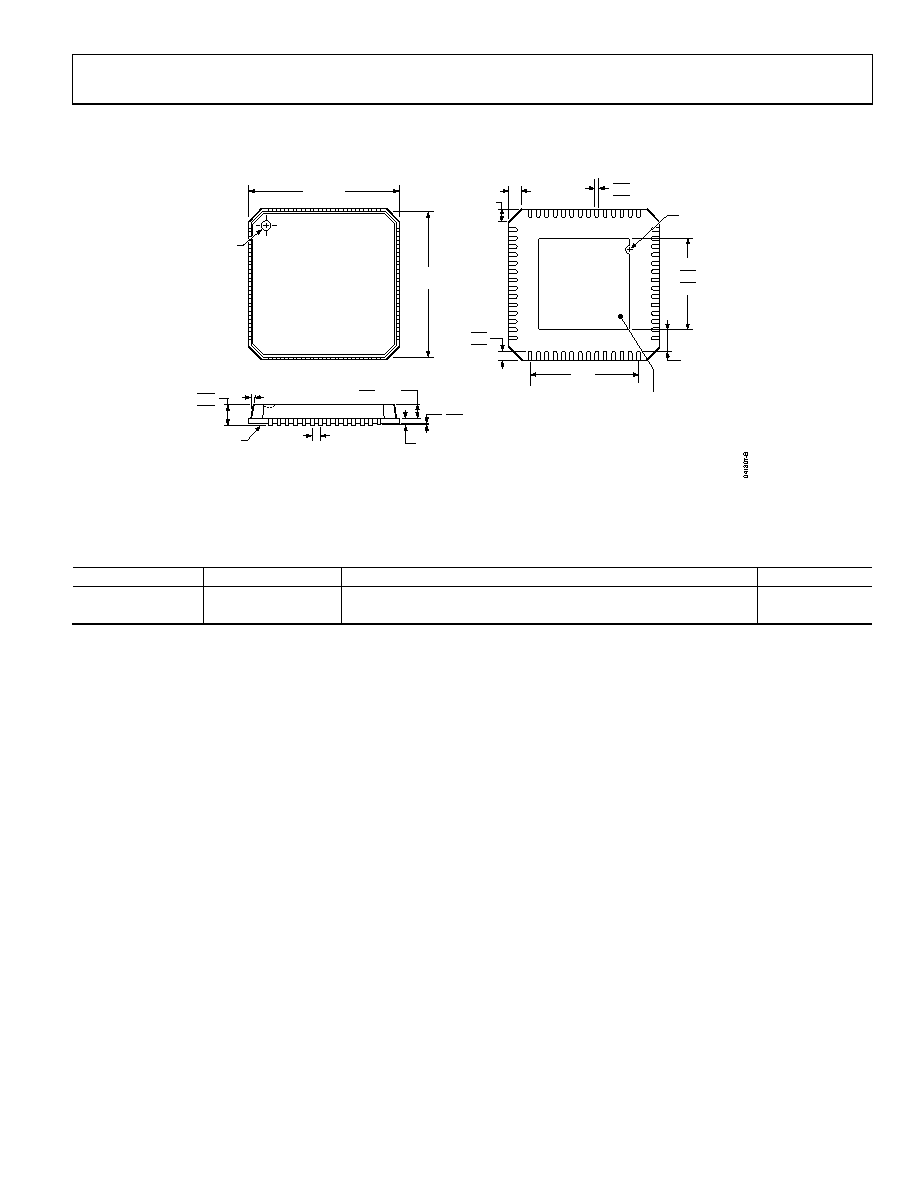

39 / 40 page  ADRF6750 Rev. A | Page 39 of 40 OUTLINE DIMENSIONS COMPLIANT TO JEDEC STANDARDS MO-220-VLLD-2 PIN 1 INDICATOR TOP VIEW 7.75 BSC SQ 8.00 BSC SQ 1 56 14 15 43 42 28 29 4.95 4.80 SQ 4.65 0.50 0.40 0.30 0.30 0.23 0.18 0.50 BSC 0.20 REF 12° MAX 0.80 MAX 0.65 TYP 1.00 0.85 0.80 6.50 REF SEATING PLANE 0.60 MAX 0.60 MAX PIN 1 INDICATOR COPLANARITY 0.08 0.05 MAX 0.02 NOM 0.30 MIN EXPOSED PAD (BOTTOM VIEW) FOR PROPER CONNECTION OF THE EXPOSED PAD, REFER TO THE PIN CONFIGURATION AND FUNCTION DESCRIPTIONS SECTION OF THIS DATA SHEET. Figure 78. 56-Lead Lead Frame Chip Scale Package [LFCSP_VQ] 8 mm × 8 mm Body, Very Thin Quad (CP-56-3) Dimensions shown in millimeters ORDERING GUIDE Model1 Temperature Range Package Description Package Option ADRF6750ACPZ-R7 −40°C to +85°C 56-Lead Lead Frame Chip Scale Package [LFCSP_VQ], 7" Tape and Reel CP-56-3 ADRF6750-EVALZ Evaluation Board 1 Z = RoHS Compliant Part. |
|
