ADL5350

Rev. 0 | Page 13 of 24

Supply voltage = 3 V, RF frequency = 1950 MHz, IF frequency = 190 MHz, RF level = −10 dBm, LO level = 6 dBm, TA = 25°C,

unless otherwise noted.

–40°C

2.7

3.5

3.4

3.3

3.2

3.1

3.0

2.9

2.8

SUPPLY VOLTAGE (V)

+25°C

+85°C

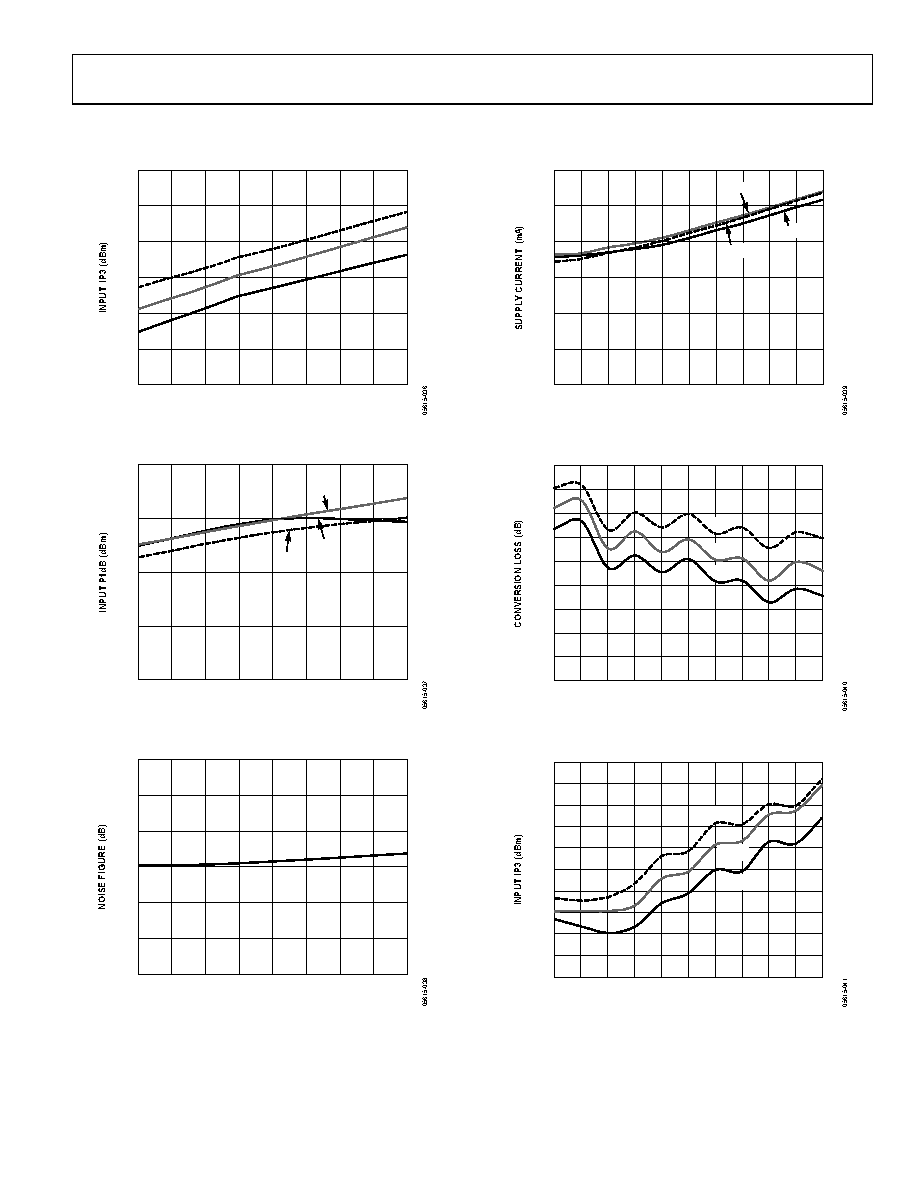

Figure 36. Input IP3 vs. Supply Voltage

–40°C

2.7

3.5

3.4

3.3

3.2

3.1

3.0

2.9

2.8

SUPPLY VOLTAGE (V)

+25°C

+85°C

Figure 37. Input P1dB vs. Supply Voltage

8.0

7.5

7.0

6.5

6.0

5.5

5.0

2.7

3.5

3.4

3.3

3.2

3.1

3.0

2.9

2.8

SUPPLY VOLTAGE (V)

Figure 38. Noise Figure vs. Supply Voltage

1800 1825 1850 1875 1900 1925 1950 1975 2000 2025 2050

RF FREQUENCY (MHz)

–40°C

+25°C

+85°C

Figure 39. Supply Current vs. RF Frequency

7.6

5.8

6.0

6.2

6.4

6.6

6.8

7.0

7.2

7.4

1800

2050

2025

2000

1975

1950

1925

1900

1875

1850

1825

RF FREQUENCY (MHz)

–40°C

+25°C

+85°C

Figure 40. Conversion Loss vs. RF Frequency

27.0

22.0

22.5

23.0

23.5

24.0

24.5

25.0

25.5

26.0

26.5

1800

2050

2025

2000

1975

1950

1925

1900

1875

1850

1825

RF FREQUENCY (MHz)

+85°C

+25°C

–40°C

Figure 41. Input IP3 vs. RF Frequency
