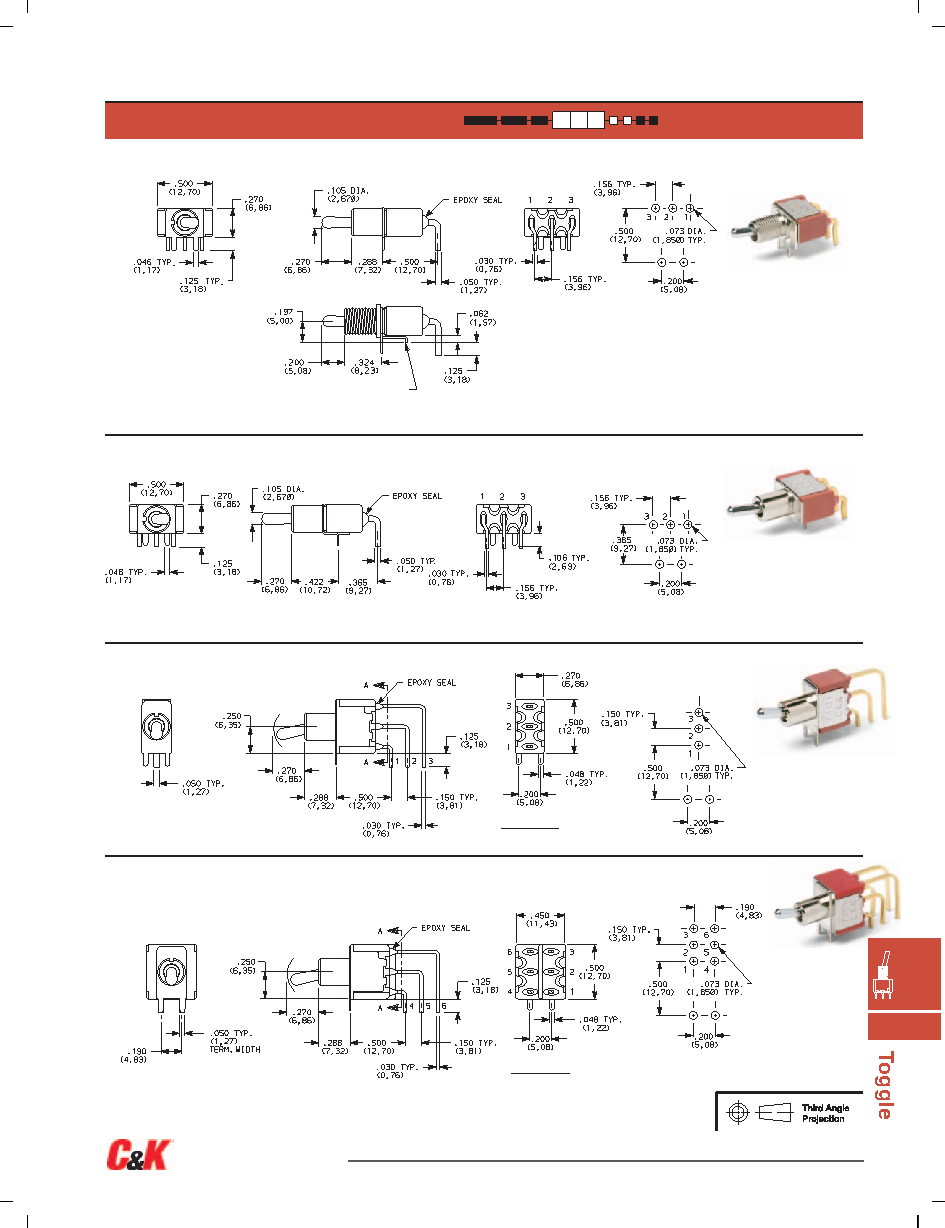

PC MOUNTING

PC MOUNTING

7000 Series

Miniature Toggle Switches

TERMINATIONS

Actuator Shown In Pos. 1

Terminals & Support

Switch support with CW, H, H3, H4, Y1, Y4

bushings and KXX actuators.

PC MOUNTING

Actuator Shown In Pos. 1

PC MOUNTING

Actuator Shown In Pos. 1

SECTION A-A

A2

RIGHT ANGLE, PC THRU-HOLE,

.156" PITCH

A4

RIGHT ANGLE, PC THRU-HOLE

.156" PITCH

AV2

VERTICAL RIGHT ANGLE, PC THRU-HOLE,

.150" PITCH

Not available with I seal option.

Terminal bend radii and lead-in manufacturing option.

Not available with KXX & TXX actuators, CW, H, H3, H4, Y1 & Y4 bushings,

and I seal. Terminal bend radii and lead-in manufacturing option.

NOTE: The A4 option is available with any contact material and can be UL recognized and

CSA certified. The PC pattern must clear switch support legs.

Not available with TXX actuators and I seal.

Terminal bend radii and lead-in manufacturing option.

7101MHA2BE

Horizontal Actuation

SPDT

7101MD9AV2BE

Horizontal Actuation

SPDT

7101MD9A4BE

Horizontal Actuation

SPDT

Part No. Shown: 7101MHA2BE

Actuator Shown In Pos. 1

SECTION A-A

AV2

VERTICAL RIGHT ANGLE, PC THRU-HOLE,

.150" PITCH

Not available with I seal option.

Terminal bend radii and lead-in manufacturing option.

7201MD9AV2BE

Vertical Actuation

DPDT

F–11

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

www.ck-components.com

F
