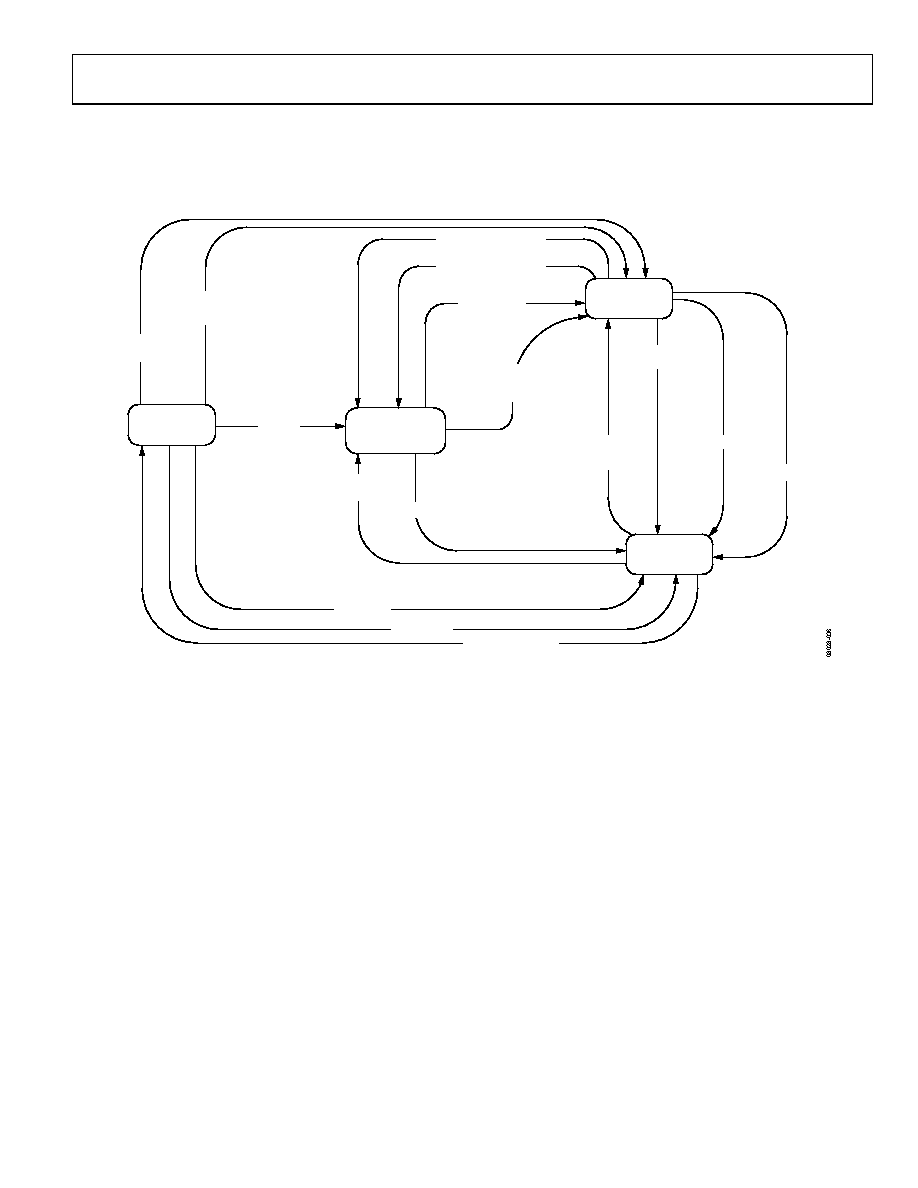

15 / 24 page  ADP1655 Rev. 0 | Page 15 of 24 STATE TRANSITIONS When the ADP1655 is in flash mode, the TX_MASK pin can be used to reduce the battery load. The device remains in flash mode, but the LED driver output current is reduced to the assist light level. In Figure 34, if the flash was triggered by the strobe pin in level-sensitive mode, a timeout triggers a timeout fault, as defined in the Safety Features section. EXTERNAL TORCH FLASH STANDBY I2C/EN = 1 ASSIST LIGHT OUTPUT OFF TIMEOUT OUTPUT ON STROBE = 1 OUTPUT ON STROBE DISABLED MODE = FLASH MODE = ASSIST LIGHT STROBE = 1 TX_MASK = 0 STROBE DISABLED MODE = FLASH TX_MASK = 0 OUTPUT ON MODE = ASSIST LIGHT TORCH NOT ALLOWED TORCH = 0 TORCH ALLOWED MODE = TORCH OUTPUT ON STROBE = 1 OUTPUT ON STROBE DISABLED MODE = FLASH OUTPUT OFF TX_MASK ENABLED TX_MASK = 1 EN1 = 0 EN2 = 1 Figure 34. I2C Interface Mode: State Transitions |
|
|
