TYPICAL PERFORMANCE CHARACTERISTICS
60
50
40
30
20
10
0
–10
0.5
1.0
1.5
COMMON-MODE VOLTAGE (V)
2.0
2.5
3.0
3.5
0
–20
–30
IP
IP – IN
IN

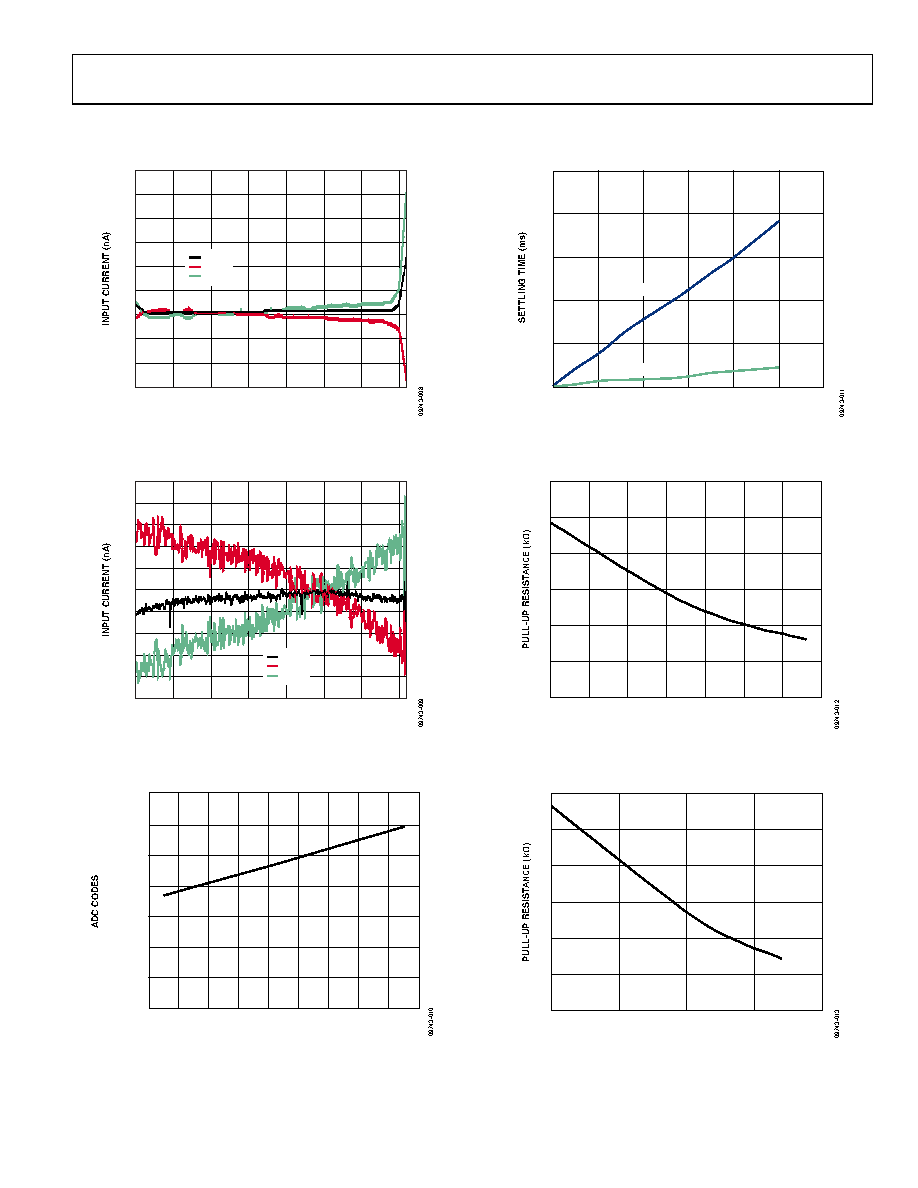

Figure 9. Input Current vs. Common-Mode Voltage (VCM),
Gain = 4, ADC Input = 250 mV, AVDD = 3.6 V, TA = 25°C,
VCM = ((AIN+) + (AIN−))/2
5
4
3
2
1
0
–1
–2
–3
0.5
1.0
1.5
COMMON-MODE VOLTAGE (V)
2.0
2.5
3.0
3.5
0
–4
–5
IP
IP – IN
IN
Figure 10. Input Current vs. Common-Mode Voltage (VCM),
Gain = 128, ADC Input = 7.8125 mV, AVDD = 3.6 V, TA = 25°C,
VCM = ((AIN+) + (AIN−))/2
–40
–20
0
20
14000000
12000000
10000000
8000000
6000000
4000000
2000000
40
TEMPERATURE (°C)
60
80
100
120
Figure 11. ADC Codes (Decimal Values) vs. Die Temperature
0
50
100
150
200
250
0
200
400
600
800
1000
1200
CAPACITANCE (nF)
BOOST = 0
BOOST = 30
Figure 12. VBIAS Output Settling Time vs. Load Capacitance,
TA = 25°C, IOVDD and AVDD = 3.3 V
0
5
10
15
20
25
30
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
VOLTAGE (V)
Figure 13. Digital Input Pin Pull-Up Resistance Value vs. Voltage Applied
to Digital Pin, TA = 25°C, IOVDD = 3.4 V
0
10
20
30
40
50
60
0
0.5
1.0
1.5
2.0
VOLTAGE (V)
Figure 14. Digital Input Pin Pull-Up Resistance Value vs. Voltage Applied
to Digital Pin, TA = 25°C, IOVDD = 1.8 V
