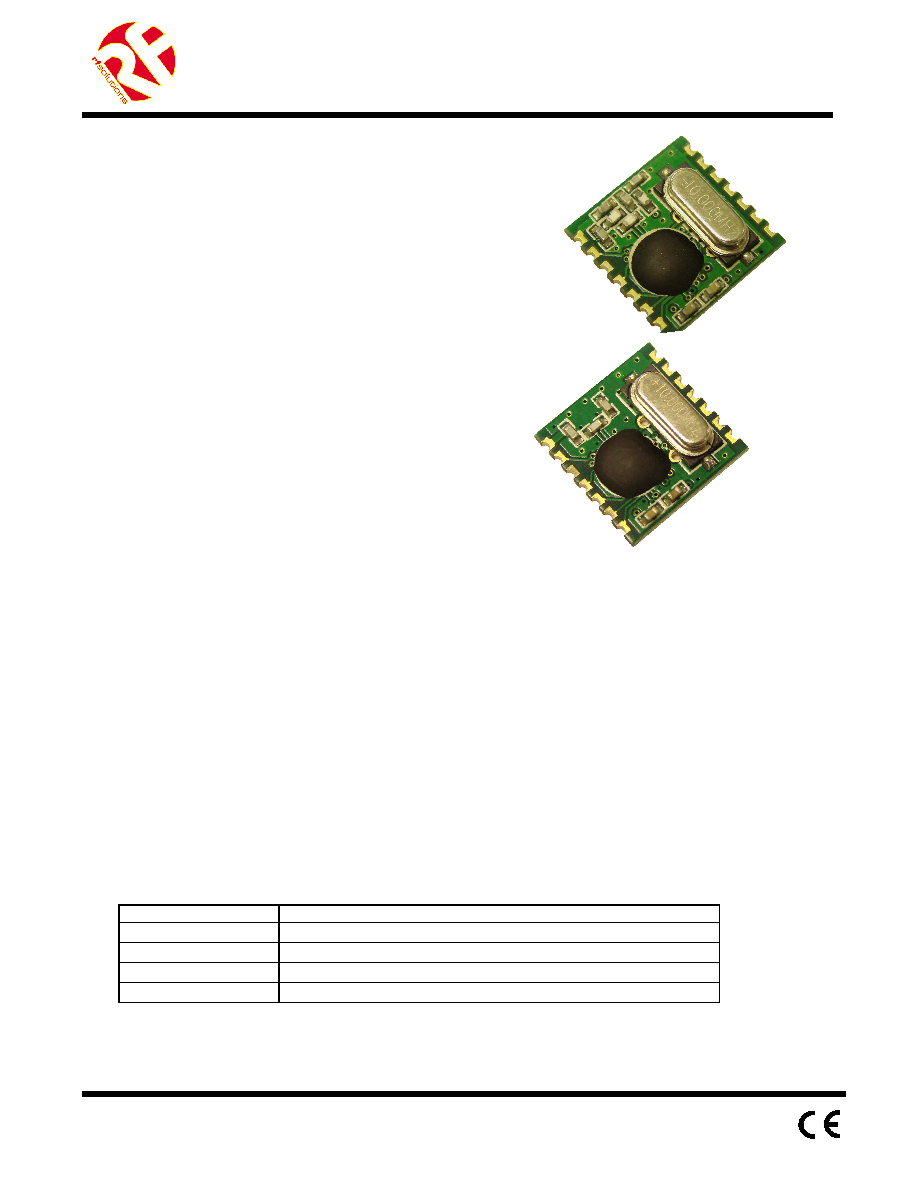

ALPHA-TX

ALPHA-RX

•

FM Transmitter & Receiver Modules

•

Available as 433 or 915MHz

•

Transmit Range up to 300m

•

Miniature SMT Packages

•

Data Rate up to 256Kbps

•

Programmable Output Power

•

2.2 – 5.4Vdc Operating Voltage

•

Standby Current <300nA

•

Programmable Freq Deviation

•

SPI Interface (for Config)

•

Clock and Reset Signal for External MCU

•

Wakeup Timer

•

Automatic Antenna Tuning

•

Differential Antenna Output

•

Low Battery Detection

•

EMC Compliant , FCC Compliant

•

Operates from -45 to +85

Transmitter

•

3-12 Supply Voltage

•

Programmable Output Power

Receiver

•

Standby current < 0.3uA

•

Wake up timer function

•

PLL Design

•

Analog and Digital Signal Strength indicator

•

Programmable receive bandwidth (67 to 400KHz)

Introduction

The Alpha Modules are extremely cost effective but high

performance radio modules. Supplied in a miniature Surface mount package these modules can

Transmit/Receive at upto 115Kbps at upto 300m range.

Operating at 2-5V, both transmitter and receiver monitor their battery voltage and can sleep with very low

standby current. The modules can wake intermittently and provide direct control outputs to a

microcontroller, ideally suited to battery applications. (Especially receivers!)

These Modules will suit one to one multi-node wireless links in applications including car and building

security, POS and inventory tracking, remote process monitoring.

Part Numbers

Part Number

Description

ALPHA-TX433S

FM Transmitter Module, 433MHz

ALPHA-RX433S

FM Receiver Module, 433MHz

ALPHA-TX915S

FM Transmitter Module, 915MHz

ALPHA-RX915S

FM Receiver Module, 915MHz

Applications

Wireless Security Systems

Car Alarms

Remote Gate Controls

Remote Sensing

Data Capture

Sensor Reporting
