VIPER06
Typical electrical characteristics
Doc ID 022794 Rev 1
11/28

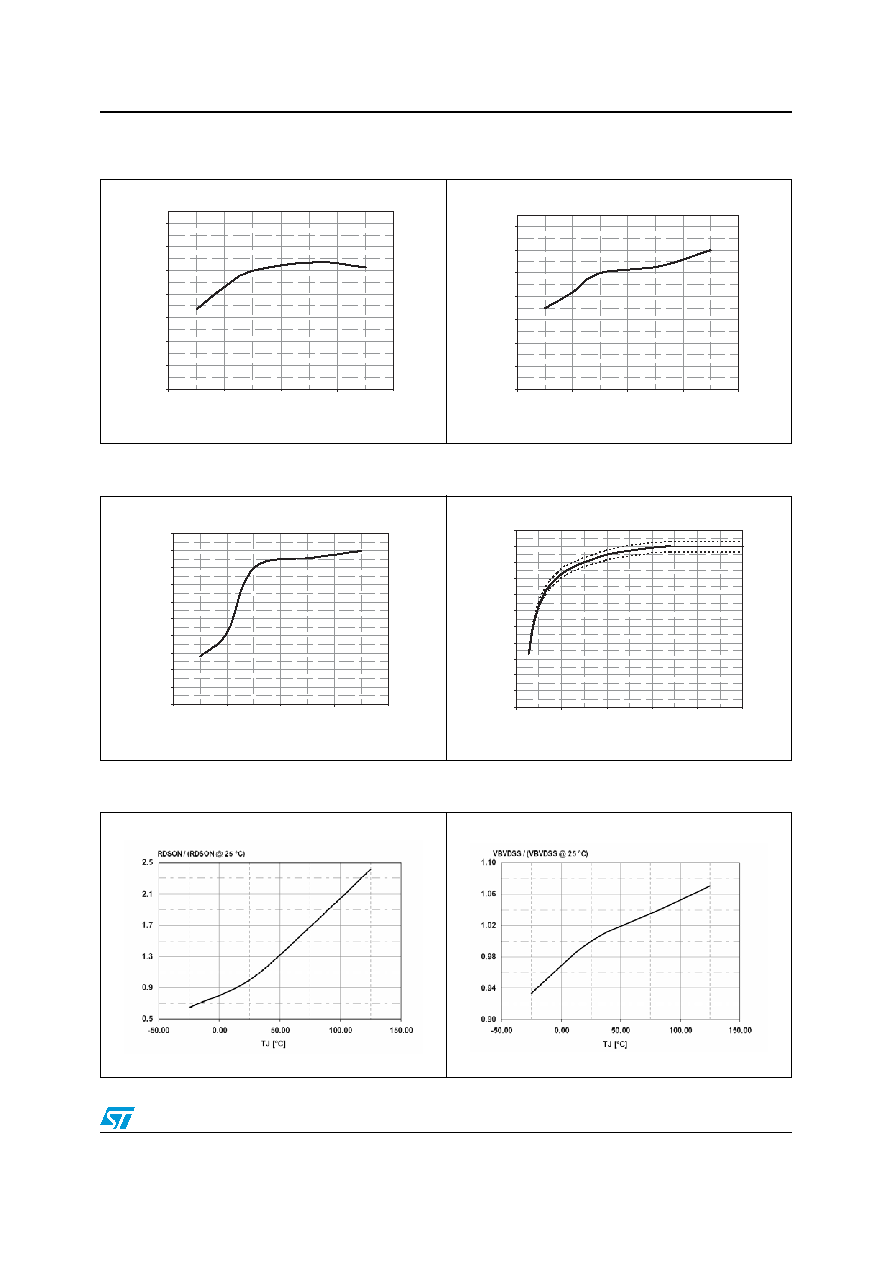

Figure 10.
ICOMP vs. TJ
Figure 11.
Operating supply current
(no switching) vs. TJ
Figure 12.
Operating supply current
(switching) vs. TJ
Figure 13.
IDlim vs. RLIM
Figure 14.
Power MOSFET on-resistance
vs. TJ
Figure 15.
Power MOSFET breakdown voltage
vs. TJ
AM01150v1
IC O M P / I C OM P@ 2 5°C
0.80
0.84
0.88
0.92
0.96
1.00
1.04
1.08
-50
0
50
100
150
TJ [°C]
AM01151v1
ID D 0 / ID D 0 @ 2 5°C
0.80
0.84
0.88
0.92
0.96
1.00
1.04
1.08
-50
0
50
100
150
TJ [°C]
AM01152v1
ID D 1 / ID D 1@ 2 5°C
0.60
0.65
0.70
0.75
0.80
0.85
0.90
0.95
1.00
1.05
1.10
-50
0
50
100
150
TJ [°C]
AM01153v1
ID l i m / ID lim@ 10 0 KOhm
0.00
0.10
0.20
0.30
0.40
0.50
0.60
0.70
0.80
0.90
1.00
1.10
020
40
60
80100
Rlim [kOhm ]
