*COMPLIANT TO JEDEC STANDARDS MO-193-AB WITH

THE EXCEPTION OF PACKAGE HEIGHT AND THICKNESS.

1.60 BSC

2.80 BSC

1.90

BSC

0.95 BSC

0.20

0.08

0.60

0.45

0.30

8°

4°

0°

0.50

0.30

0.10 MAX

*1.00 MAX

*0.90 MAX

0.70 MIN

2.90 BSC

54

12

3

SEATING

PLANE

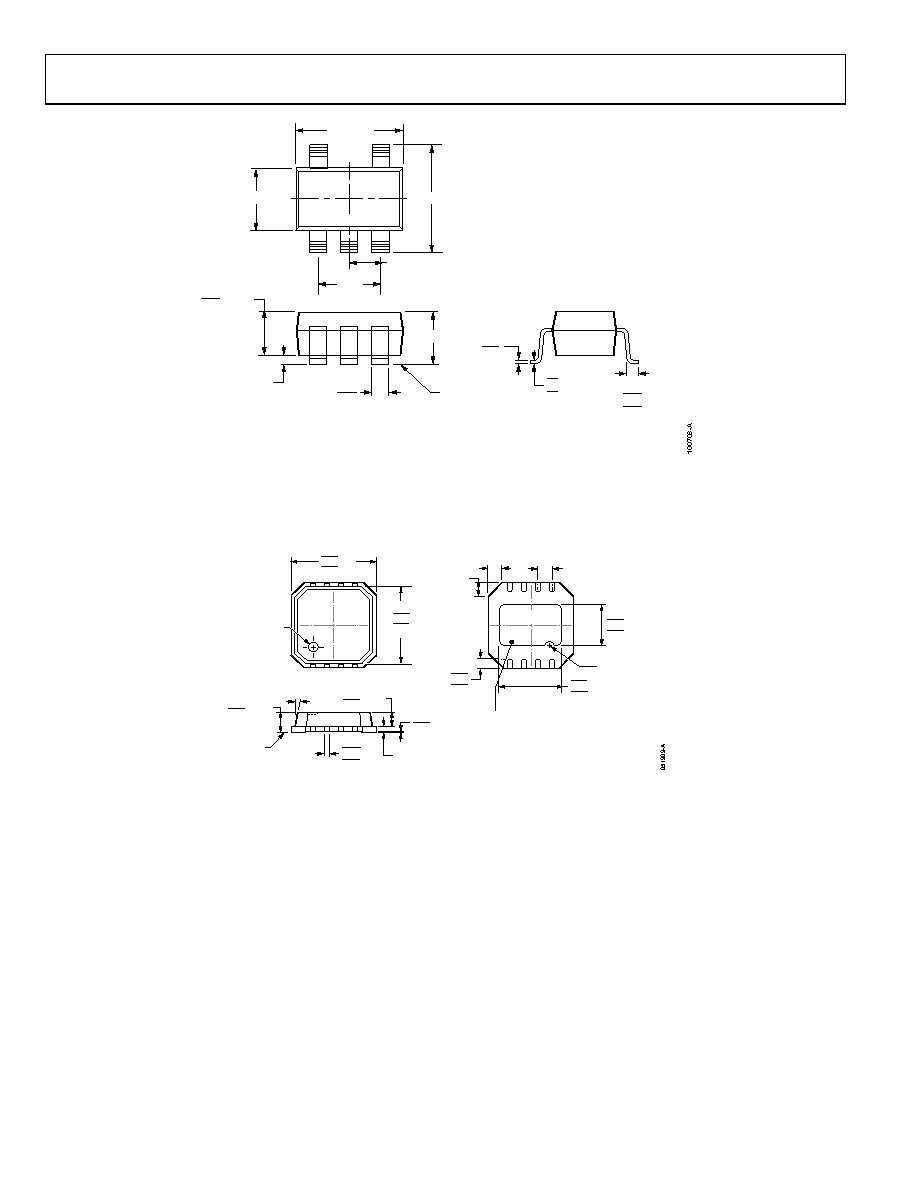

Figure 43. 5-Lead Thin Small Outline Transistor Package [TSOT-23]

(UJ-5)

Dimensions shown in millimeters

1

EXPOSED

PAD

BOTTOM VIEW

0.50

BSC

PIN 1

INDICATOR

0.50

0.40

0.30

TOP VIEW

12° MAX

0.70 MAX

0.65 TYP

0.90 MAX

0.85 NOM

0.05 MAX

0.01 NOM

0.20 REF

2.23

2.13

2.03

4

1.60

1.50

1.40

3.25

3.00 SQ

2.75

2.95

2.75 SQ

2.55

5

8

PIN 1

INDICATOR

SEATING

PLANE

0.30

0.23

0.18

0.60 MAX

0.60 MAX

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.

Figure 44. 8-Lead Lead Frame Chip Scale Package [LFCSP_VD]

3 mm × 3 mm Body, Very Thin, Dual Lead

(CP-8-9)

Dimensions shown in millimeters
