Product Details

DIMENSION A

DIMENSION B

DIMENSION C

DIMENSION D

INTERFACE MATERIAL

FINISH

Notes:

Dimension C = heat sink height from bottom of the base to the top

of the fin fielD.

thermal performanCe Data are proviDeD for referenCe only. aCtual

performanCe may vary by appliCation.

ats reserves the right to upDate or Change its proDuCts without

notiCe

ContaCt ats to learn about Custom options available

1)

2)

3)

4)

thermal Performance

For more information, to find a distributor or to place an order, visit www.qats.com or

call: 781.769.2800 (North America); +31 (0) 3569 84715 (Europe).

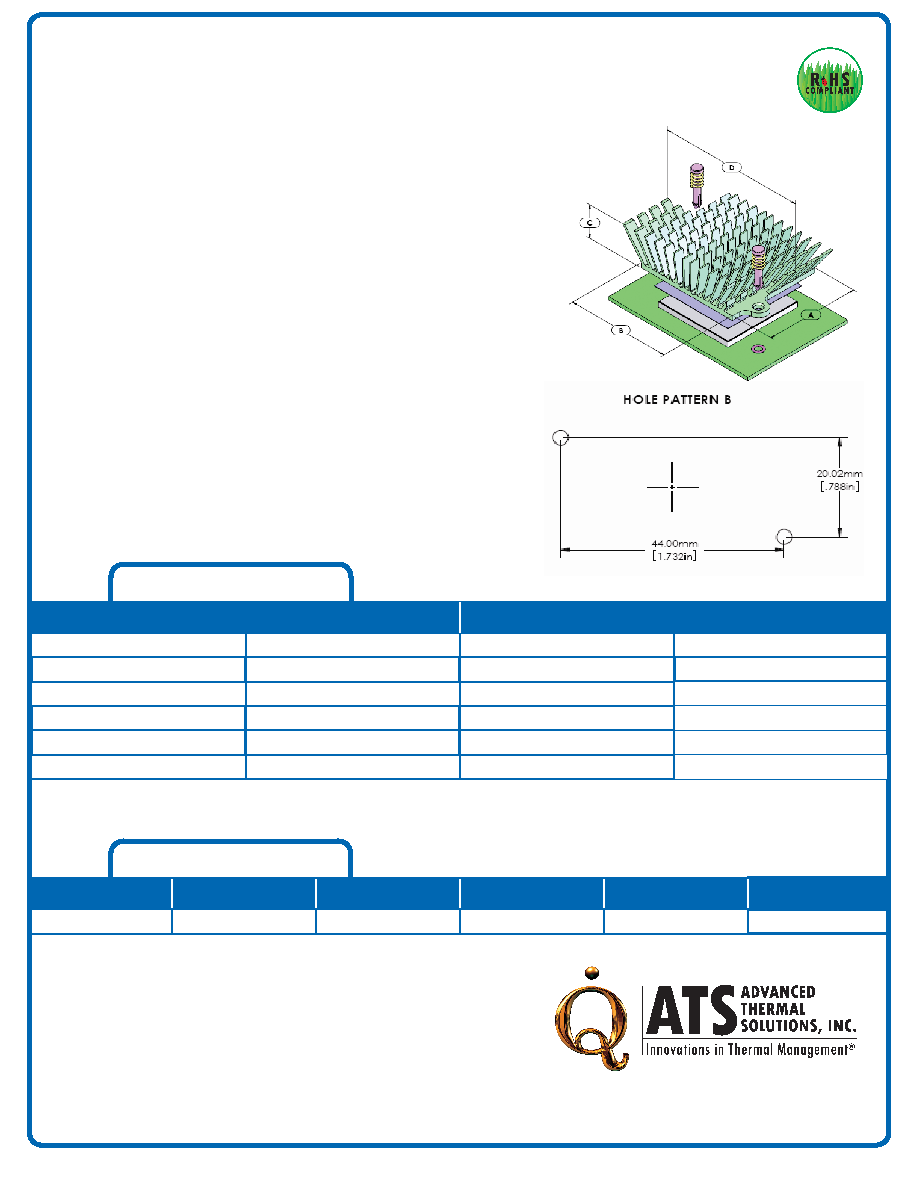

ATS PART # ATS-1041-C2-R0

Features & Benefits

maxiFLoW™ Cross Cut

High Performance Heat sinks

with Metal Push Pin

REV1_0908

AIR VELOCITy

THERMAL RESISTANCE (

ft/min

m/s

air flow straight

air flow siDeways

200

1.0

300

1.5

400

2.0

500

2.5

600

3.0

3.9

3.3

2.8

6.2

2.5

41 mm

45 mm

10 mm

57 mm

green anoDiZeD

ChomeriCs t-766

for larger heat sinks and higher pre-loads, push pins with compression

springs are an effective mounting choice. the push pin has a flexible

barb at the end that is designed to engage with a pre-drilled hole in

a pwb. the compression spring adds the necessary force to hold

the assembly together. provides better thermal performance than

comparable size straight fin and pin fin heat sinks

features proven high performance maxiflow™ heat sink spread fin

array to maximize cooling surfaces

ideal for tight spaced components where wider heat sinks can’t be

used

provided with pre-assembled thermal interface material centered on

base

brass push pin with steel compression spring

reccomended through hole size in pCb is 3.00 mm

»

»

»

»

»

»

*Image above is for illustration purposes only.

4.9

3.9

3.3

3

5
