AD8237
Data Sheet
Rev. 0 | Page 16 of 28
G = 1
LOW BANDWIDTH MODE
20mV/DIV
10µs/DIV

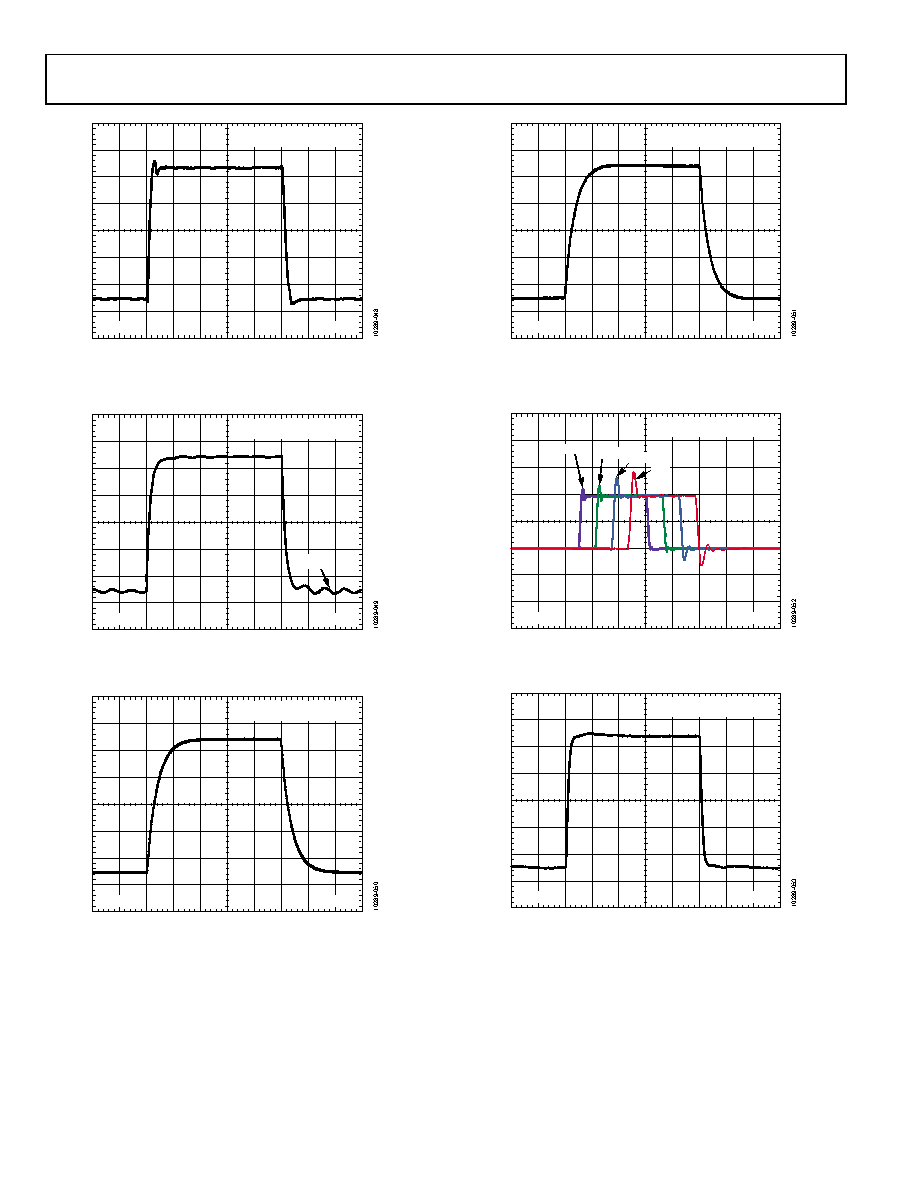

Figure 46. Small Signal Pulse Response, G = 1, RL = 10 kΩ, CL = 100 pF,
Low Bandwidth Mode
G = 10
LOW BANDWIDTH MODE
20mV/DIV
50µs/DIV
fCHOP
Figure 47. Small Signal Pulse Response, G = 10, RL = 10 kΩ, CL = 100 pF,
Low Bandwidth Mode
G = 100
LOW BANDWIDTH MODE
20mV/DIV
200µs/DIV
Figure 48. Small Signal Pulse Response, G = 100, RL = 10 kΩ, CL = 100 pF,
Low Bandwidth Mode
G = 1000
LOW BANDWIDTH MODE
20mV/DIV
2ms/DIV
Figure 49. Small Signal Pulse Response, G = 1000, RL = 10 kΩ, CL = 100 pF,
Low Bandwidth Mode
G = 1
LOW BANDWIDTH MODE
20mV/DIV
20µs/DIV
100pF
1nF
NO LOAD
560pF
Figure 50. Small Signal Pulse Response with Various Capacitive Loads,
G = 1, RL = Infinity, Low Bandwidth Mode
G = 10
HIGH BANDWIDTH MODE
20mV/DIV
10µs/DIV
Figure 51. Small Signal Pulse Response, G = 10, RL = 10 kΩ, CL = 100 pF,
High Bandwidth Mode
