CMP401/ CMP402

REV. 0

–8–

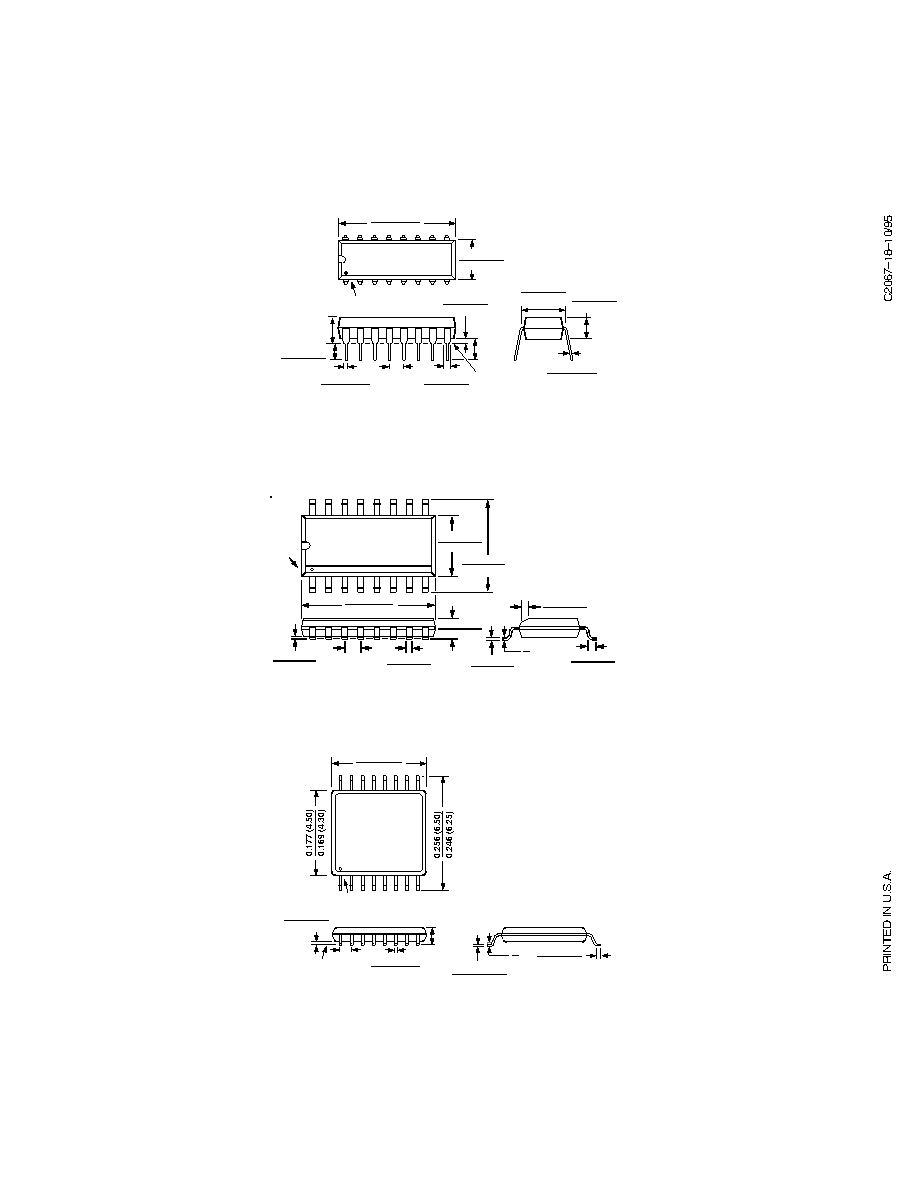

OUTLINE DIMENSIONS

Dimensions shown in inches and (mm).

16-Pin Epoxy DIP

(N-16)

0.840 (21.33)

0.745 (18.93)

0.280 (7.11)

0.240 (6.10)

PIN 1

0.325 (8.25)

0.300 (7.62)

0.015 (0.381)

0.008 (0.204)

0.195 (4.95)

0.115 (2.93)

SEATING

PLANE

0.022 (0.558)

0.014 (0.356)

0.060 (1.52)

0.015 (0.38)

0.210 (5.33)

MAX

0.130

(3.30)

MIN

0.070 (1.77)

0.045 (1.15)

0.100

(2.54)

BSC

0.160 (4.06)

0.115 (2.93)

16-Pin Narrow-SOIC

(R-16A)

PIN 1

0.1574 (4.00)

0.1497 (3.80)

0.2440 (6.20)

0.2284 (5.80)

0.0500 (1.27)

0.0160 (0.41)

0.0196 (0.50)

0.0099 (0.25)

x 45

0.0099 (0.25)

0.0075 (0.19)

0.0192 (0.49)

0.0138 (0.35)

0.0500 (1.27)

BSC

0.0688 (1.75)

0.0532 (1.35)

0.0098 (0.25)

0.0040 (0.10)

0.3937 (10.00)

0.3859 (9.80)

16-Lead TSSOP

(RU-16)

0.201 (5.10)

0.193 (4.90)

PIN 1

SEATING

PLANE

0.006 (0.15)

0.002 (0.05)

0.0118 (0.30)

0.0075 (0.19)

0.0256

(0.65)

BSC

0.0433

(1.10)

MAX

0.0079 (0.20)

0.0035 (0.090)

0.028 (0.70)

0.020 (0.50)
