ADR380/ADR381

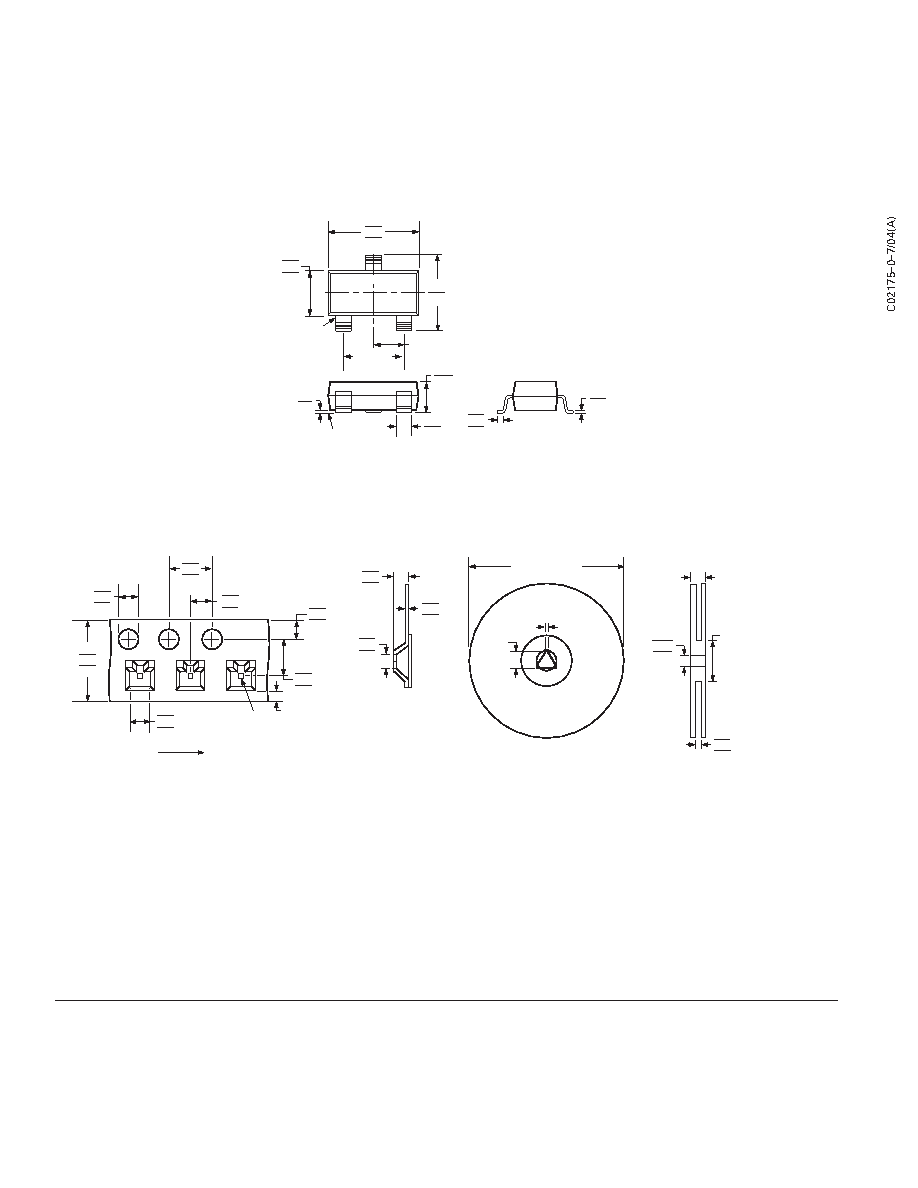

OUTLINE DIMENSIONS

3-Lead Small Outline Transistor Package [SOT-23-3]

(RT-3)

Dimensions shown in millimeters

3.04

2.90

2.80

PIN 1

1.40

1.30

1.20

2.64

2.10

1.90 BSC

1

2

3

SEATING

PLANE

1.12

0.89

0.10

0.01

0.50

0.30

0.20

0.08

0.60

0.50

0.40

0.95 BSC

COMPLIANT TO JEDEC STANDARDS TO-236AB

Tape and Reel Dimensions

Dimensions shown in millimeters

4.10

4.00

3.90

1.55

1.50

1.50

8.30

8.00

7.70

3.20

3.10

2.90

2.05

2.00

1.95

1.85

1.75

1.65

3.55

3.50

3.45

2.80

2.70

2.60

1.10

1.00

0.90

0.35

0.30

0.25

13.20

13.00

12.80

9.90

8.40

8.40

20.20

MIN

1.50 MIN

7" REEL 100.00

OR

13" REEL 330.00

7" REEL 50.00 MIN

OR

13" REEL 100.00 MIN

14.40 MAX

0.75 MIN

DIRECTION OF UNREELING

1.00 MIN
