AD667

REV. A

–8–

Right-justified data can be similarly accommodated. The over-

lapping of data lines is reversed, and the address connections

are slightly different. The AD667 still occupies two adjacent

locations in the processor’s memory map. In the circuit of Fig-

ure 9, location X01 loads the 8 LSBs and location X10 loads

the 4 MSBs and updates the output.

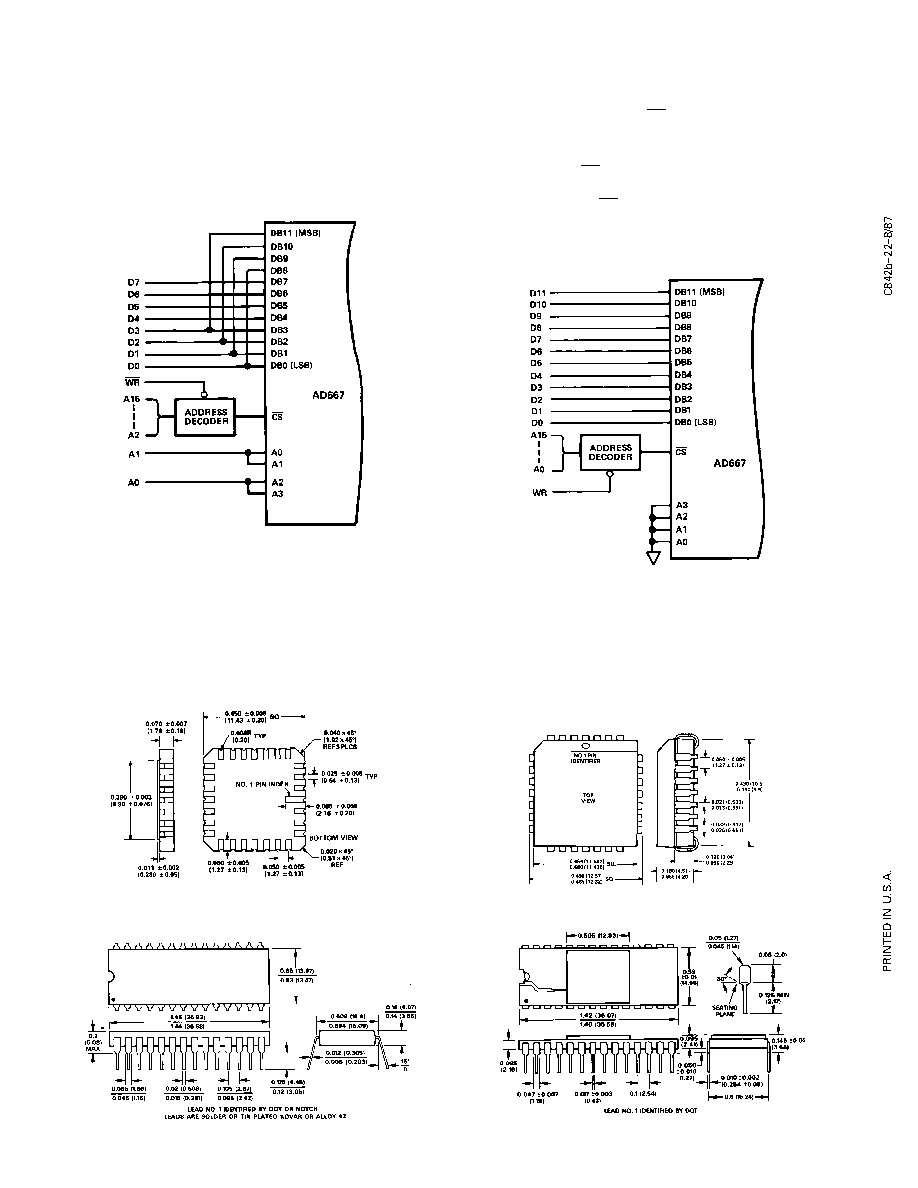

Figure 9. Right-Justified 8-Bit Bus Interface

USING THE AD667 WITH 12- AND 16-BIT BUSES

The AD667 is easily interfaced to 12- and 16-bit data buses. In

this operation, all four address lines (A0 through A3) are tied

low, and the latch is enabled by CS going low. The AD667 thus

occupies a single memory location.

This configuration uses the first and second rank registers

simultaneously. The CS input can be driven from an active-low

decoded address. It should be noted that any data bus activity

during the period when CS is low will cause activity at the

AD667 output. If data is not guaranteed stable during this

period, the second rank register can be used to provide double

buffering.

Figure 10. Connections for 12- and 16-Bit Bus Interface

OUTLINE DIMENSIONS

Dimensions shown in inches and (mm).

28-Contact LCC (E)

28-Terminal Plastic Leaded

Chip Carrier (P)

28-Pin Ceramic DIP (D)

28-Pin Plastic DIP (N)
