M24LR16E-R to VCD frames

M24LR16E-R

60/143

Doc ID 018932 Rev 8

12.4

EOF when using two subcarriers

12.4.1

High data rate

The EOF comprises a logic 0 that includes eight pulses at 423.75 kHz and nine pulses at

484.28 kHz, followed by 24 pulses at 423.75 kHz (fC/32) and 27 pulses at 484.28 kHz

(fC/28), as shown in Figure 45.

Bit coding using two subcarriers is not supported for the Fast commands.

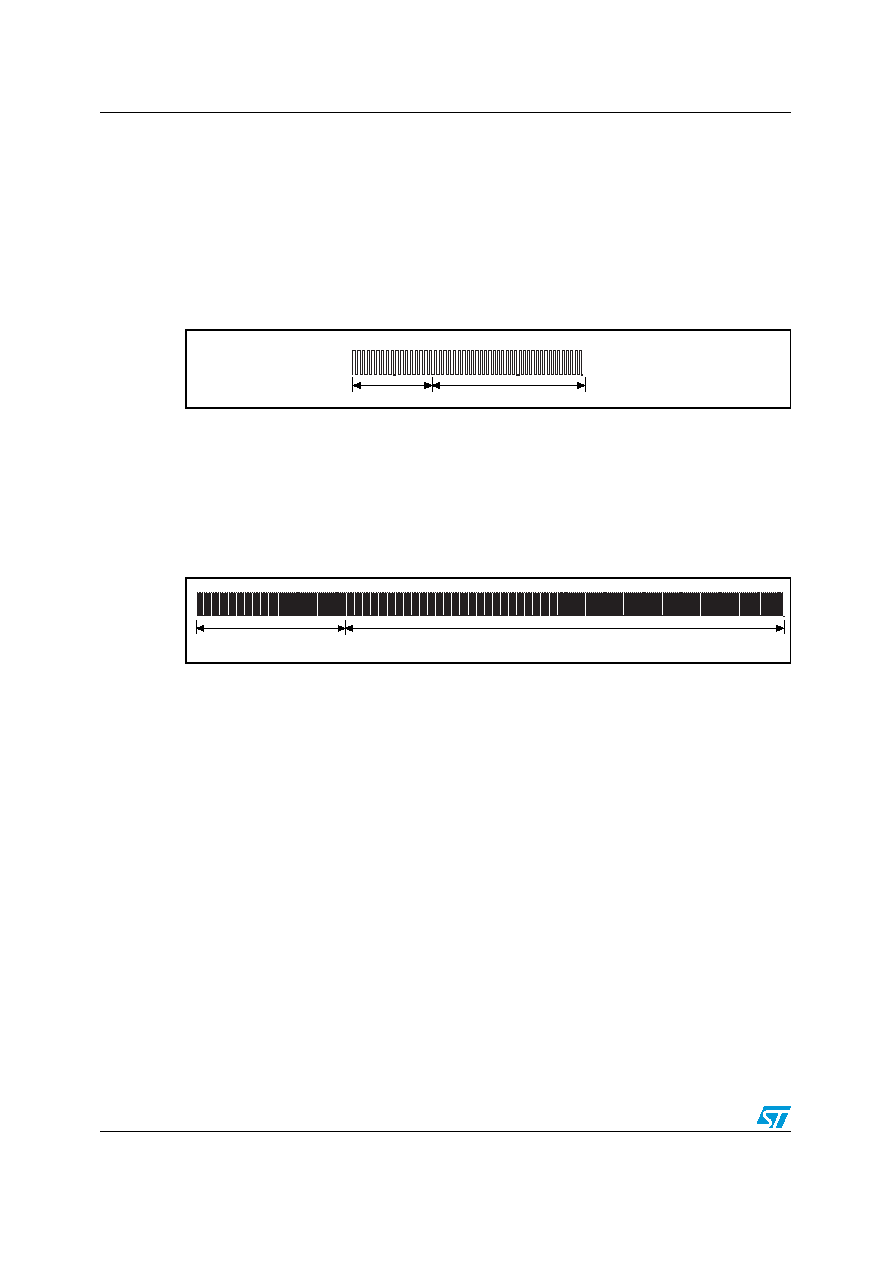

Figure 45.

End of frame, high data rate, two subcarriers

12.4.2

Low data rate

The EOF comprises a logic 0 that includes 32 pulses at 423.75 kHz and 36 pulses at

484.28 kHz, followed by 96 pulses at 423.75 kHz (fC/32) and 108 pulses at 484.28 kHz

(fC/28), as shown in Figure 46.

Bit coding using two subcarriers is not supported for the Fast commands.

Figure 46.

End of frame, low data rate, two subcarriers

112.39µs

ai12088

37.46µs

449.56µs

ai12089

149.84µs
