RHF310

Noise measurements

Doc ID 15577 Rev 3

13/22

4

Noise measurements

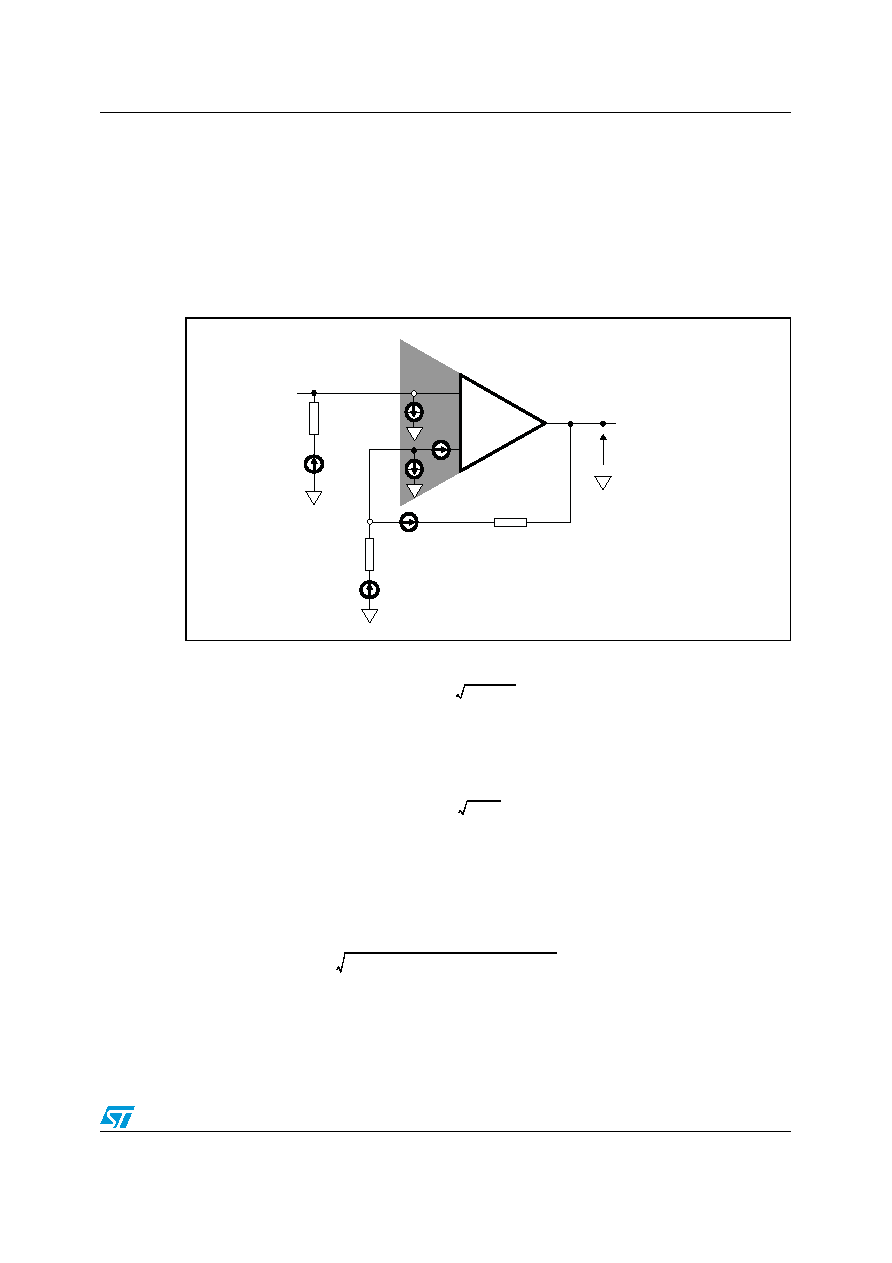

The noise model is shown in Figure 24.

●

eN: input voltage noise of the amplifier.

●

iNn: negative input current noise of the amplifier.

●

iNp: positive input current noise of the amplifier.

Figure 24.

Noise model

The thermal noise of a resistance R is:

where

ΔF is the specified bandwidth, and k is the Boltzmann's constant, equal to

1,374.10-23J/°K. T is the temperature (°K).

On a 1 Hz bandwidth the thermal noise is reduced to:

The output noise eNo is calculated using the superposition theorem. However, eNo is not

the simple sum of all noise sources but rather the square root of the sum of the square of

each noise source, as shown in Equation 1.

Equation 1

+

_

R3

R1

Output

R2

HP3577

Input noise:

8 nV/

√Hz

N1

N2

N3

eN

AM00837

4kTR

ΔF

4kTR

eNo

V1

2

V2

2

V3

2

V4

2

V5

2

V6

2

+++++

=
