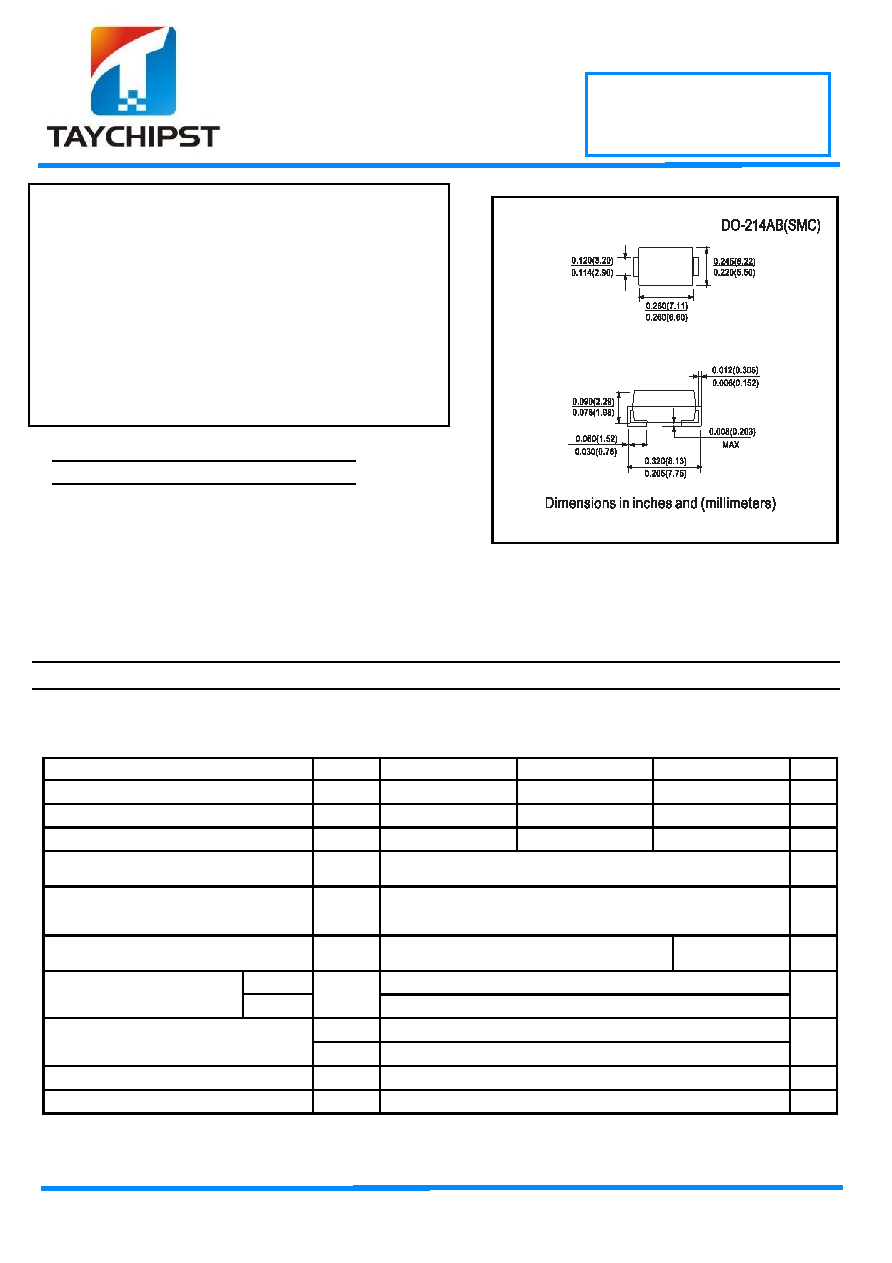

1 / 2 page  20V-40V 3.0A SSL32 THRU SSL34 Surface Mount Schottk 1 of 2 Web Site: www.taychipst.com FEATURES E-mail: sales@taychipst.com MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS MECHANICAL DATA Barrier Rectifier • Low profile surface mount package • Built-in strain relief • High switching speed, low VF • Low voltage drop, high efficiency • For use in low voltage high frequency inverters, Free willing ,and polarity protection applications • Guardring for over voltage protection • Case: Transfer molded plastic • Epoxy :UL 94V-0 rate flame retardant • Lead: Solder plated, solderable per MIL-STD-750 method 2026 • Polarity: Color band denotes cathode end • Weight: 0.007 ounce, 0.25 gram-DO-214AB(SMC) Ratings at 25 ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load derate current by 20%. SYMBOLS SSL32 SSL33 SSL34 UNIT Maximum Repetitive Peak Reverse Voltage VRRM 20 30 40 Volts Maximum RMS Voltage VRMS 20 30 40 Volts Maximum DC Blocking Voltage VDC 20 30 40 Volts Maximum Average Forward Rectified Current at TL see figure1 TL=95 I(AV) 3.0 Amps Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC method) IFSM 80 Amps Maximum Instantaneous Forward Voltage @ 3.0A （Note1） VF 0.38 0.45 Volts TA = 25 0.5 Maximum DC Reverse Current at rated DC Blocking Voltage per element TA = 100 IR 10.0 mA R JA 55 Typical Thermal Resistance (Note 2) R JL 12 Operating Junction Temperature TJ (-55 to +150) Storage Temperature Range TSTG (-55 to +150) Notes: 1. Pulse test: 300μs pulse width,1% duty cycle 2. PCB mounted with 0.55”×0.55”(14.0cm×14.0cm) copper pads C °C/W ° C ° |
