ThunderLAN

™ TNETE100PM

PCI ETHERNET

™ CONTROLLER WITH POWER MANAGEMENT

SINGLE-CHIP 10 BASE-T WITH MII FOR 100 BASE-T/100VG-AnyLAN

SPWS026 – OCTOBER 1996

24

POST OFFICE BOX 1443

MIN

TYP

MAX

UNIT

td(VDDH–FXTL1V)

Delay time from minimum VDD high level to first valid FXTL1 full swing period

100

ms

tw(H)

Pulse duration at FXTL1 high

13

ns

tw(L)

Pulse duration at FXTL1 low

13

ns

tt

Transition time of FXTL1

7

ns

tc

Cycle time, FXTL1

50

ns

Tolerance of FXTL1 input frequency

"0.01

%

† The FXTL signal can be driven either by a 20-MHz crystal using the FXTL1 and FXTL2 pins or by a 20-MHz crystal oscillator driving the FXTL1

pin.

FXTL1

VDD

td(VDDH–FXTL1V)

Minimum VDD High Level

tc

tw(H)

tw(L)

tt

tt

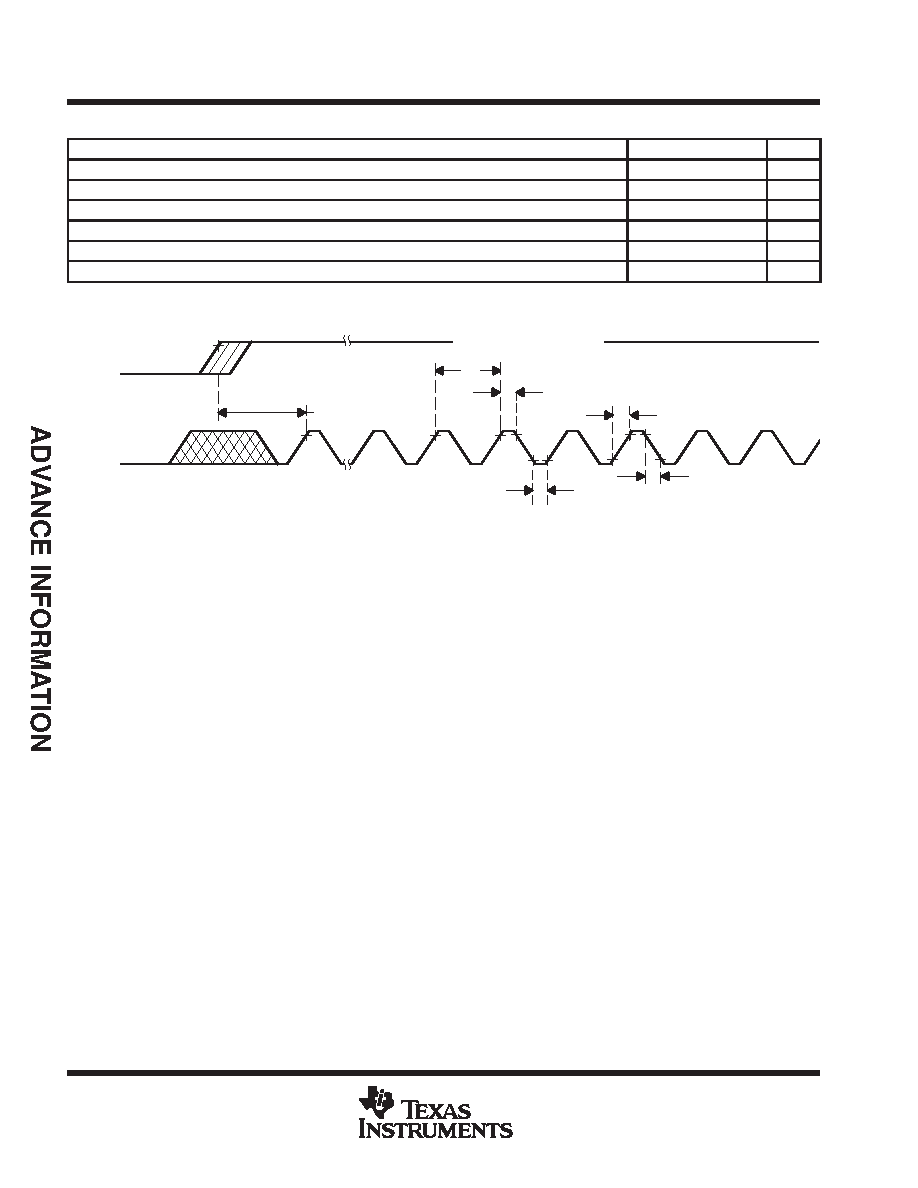

Figure 10. Crystal-Oscillator Timing
