Phihong USA Corporation • 47800 Fremont Blvd. Fremont, CA 94538 • Tel: 1.510.445.0100 Fax: 1.510.445.1678

www.phihong.com or www.midspans.com

-22-

Conﬁgure network settings:

WARNING: Only the network administrator is allowed to perform this conﬁguration.

Network settings on your midspan can be re-conﬁgured. Users can choose DHCP, where the midspan

will be automatically assigned an IP address by the network. The alternative option is to choose Static

which allowing the user to customize the IP address, IP Subnet Mask, Default Gateway, Primary DNS

and Secondary DNS. Users need to be aware that any incorrect settings will cause your midspan to

lose a valid network connection or may upset your network’s normal operation.

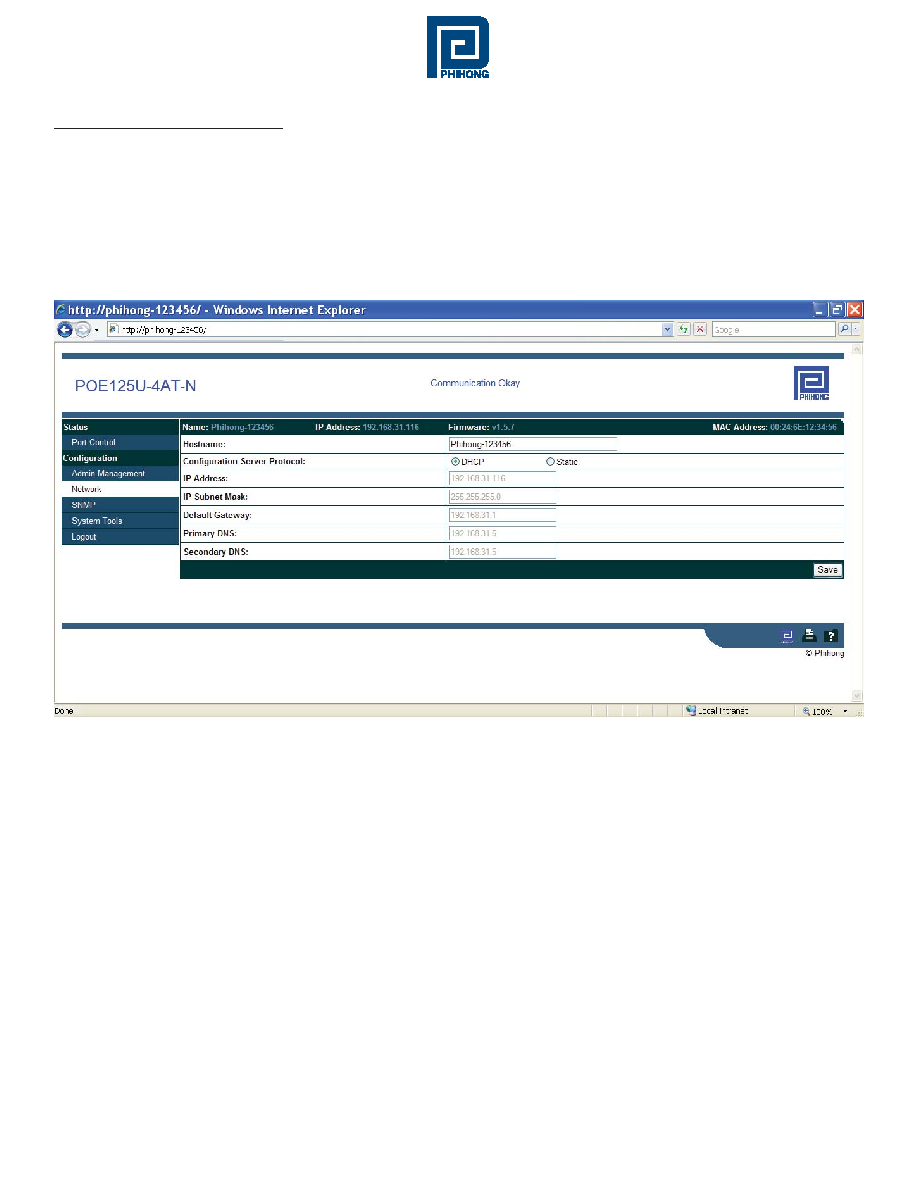

Figure 21: Network Settings Webpage

After clicking the Save button, a Reboot page (shown below) will be displayed to inform the user that

the Midspan needs to reboot in order to update for the new settings. The Reboot webpage will also

display instructions regarding reconnection.
