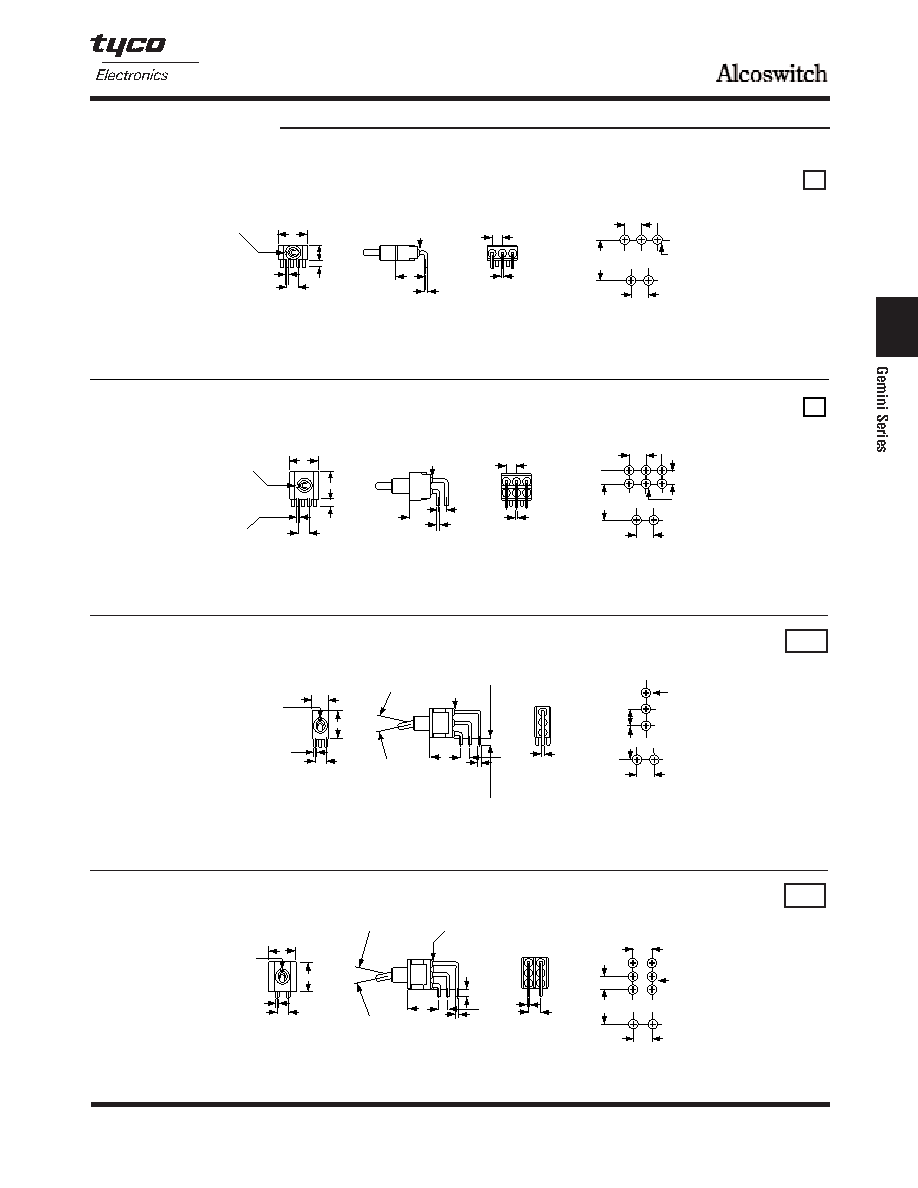

Gemini Series

Toggle Switches, A Series, Options

TERMINALS

Right Angle

Single Pole

A

Note: Terminal numbers viewed from top of P.C. boards.

Note: Terminal numbers viewed from top of P.C. boards.

Vertical Right Angle

Double Pole

Keyway

.450

(11.43)

.450

(11.43)

.200

(5.08)

.500

(12.70)

.030

(.762)

Typ.

Epoxy Seal

.150

(3.81)

Typ.

.125

(3.18)

25

°

.050

(1.27)

Typ.

.048

(1.22)

Typ.

.190

(4.83)

.200

(5.08)

.500

(12.7)

.150

(3.81) Typ.

.190

(4.83)

.073

(1.85)

Dia Typ.

1

2

3

4

5

6

Note: Terminal numbers viewed from top of P.C. boards.

Vertical Right Angle

Single Pole

AV2

Keyway

.500

(12.70)

.048

(1.22)

Typ.

.500

(12.70)

.030

(762)

Typ.

Epoxy Seal

.150

(3.81)

Typ.

.500

(12.70)

.073

(1.85)

Dia.

.150

(3.81) 3

.200

(5.08)

.125

(3.18)

.270

(6.86)

25

°

.050

(1.27)

Typ.

2

1

Note: Terminal numbers viewed from top of P.C. boards.

Right Angle

Double Pole

Keyway

.450

(11.43)

.125

(3.18)

.048

(1.22)

Typ.

.048

(1.22)

Typ.

.200

(5.08)

.500

(12.70)

.500

(12.70)

.050

(1.27)

Epoxy Seal

.185

(4.70) Typ.

.030

(.762)

Typ.

.150

(3.81)

.185

(4.70) Typ.

.500

(12.70)

.073

(1.85)

Dia.

.150

(3.81)

1

2

3

4

5

6

.200

(5.08)

Keyway

.270

(6.86)

.125

(3.18)

.048

(1.22)

Typ.

.200

(5.08)

.500

(12.70)

.500

(12.70)

.050

(1.27)

Epoxy Seal

.185

(4.70) Typ.

.030

(.762)

Typ.

.500

(12.7)

.185

(4.70)

1

2

3

.073

(1.85)

Typ.

Dia.

.200

(5.08)

A

AV2
