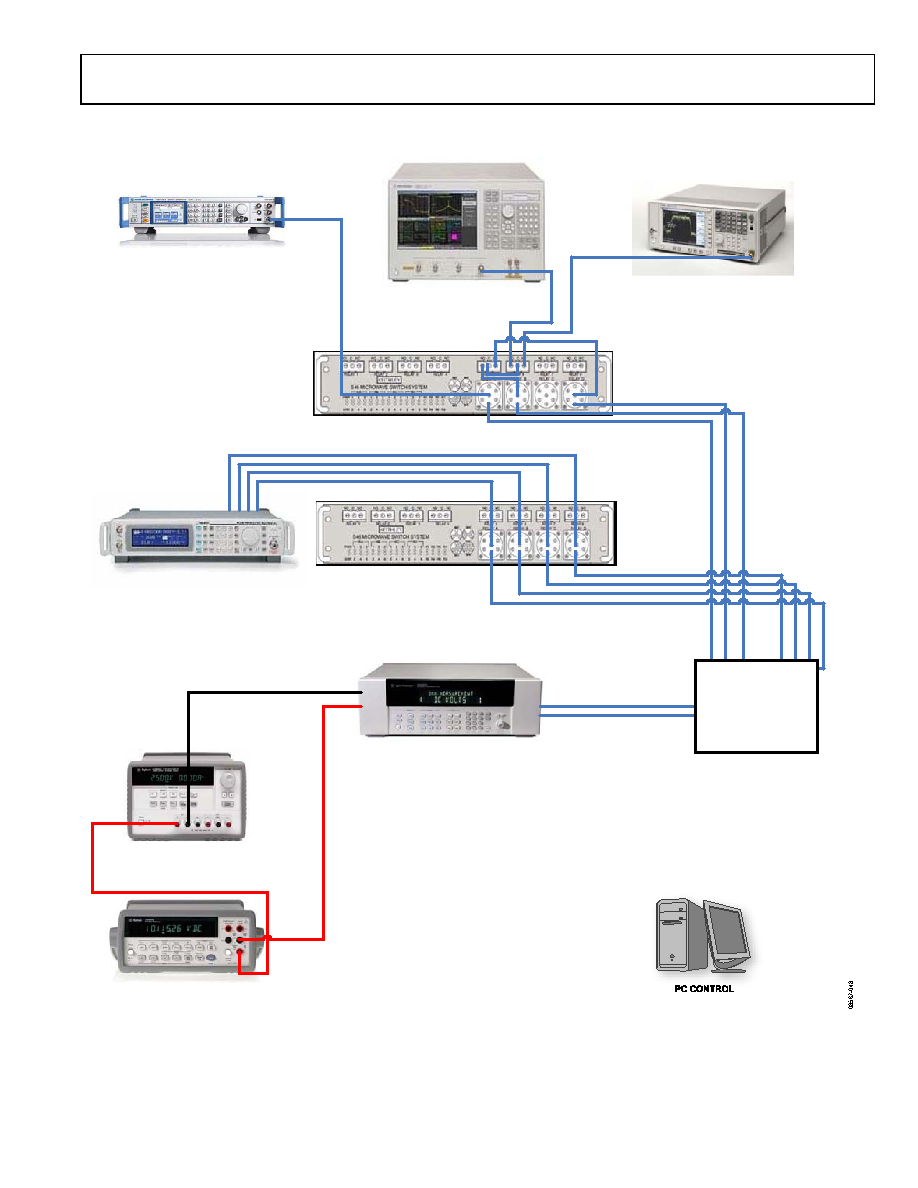

29 / 36 page  Data Sheet ADRF6701 Rev. 0 | Page 29 of 36 ADRF670x PHASE NOISE STAND SETUP ALL INSTRUMENTS ARE CONNECTED IN DAISY CHAIN FASHION VIA GBIP CABLE UNLESS OTHERWISE NOTED. ROHDE AND SCHWARTZ SMA 100 SIGNAL GENERATOR AGILENT E3631A POWER SUPPLY AGILENT 34401A DMM (IN DC I MODE, SUPPLY CURRENT MEASUREMENT) AGILENT E5052 SIGNAL SOURCE ANALYZER 34980A MULTIFUNCTION SWITCH (WITH 34950 AND 34921 MODULES) AGILENT E4440A SPECTRUM ANALYZER KEITHLEY S46 SWITCH SYSTEM 1 (FOR BASEBAND INPUTS ON 6 SITES) IFR 3416 SIGNAL GENERATOR (BASEBAND SOURCE) KEITHLEY S46 SWITCH SYSTEM 2 (FOR IF OUT AND REFIN ON 6 SITES) INPUT DC 10 PIN CONNECTOR (DC MEASUREMENT, +5V POS) AND 9 PIN DSUB CONNECTOR (VCO AND PLL PROGRAMMING) REFIN IF OUT REFIN LO OUT BASEBAND INPUTS (IP, IN, QP, QN) PC CONTROL CONNECTED TO SYSTEM VIA USB TO GPIB ADAPTER ADRF6701 EVAL BOARD Figure 50. Characterization Setup for Phase Noise and Reference Spur Measurements |
|
