ADP1876
Data Sheet
Rev. A | Page 10 of 24

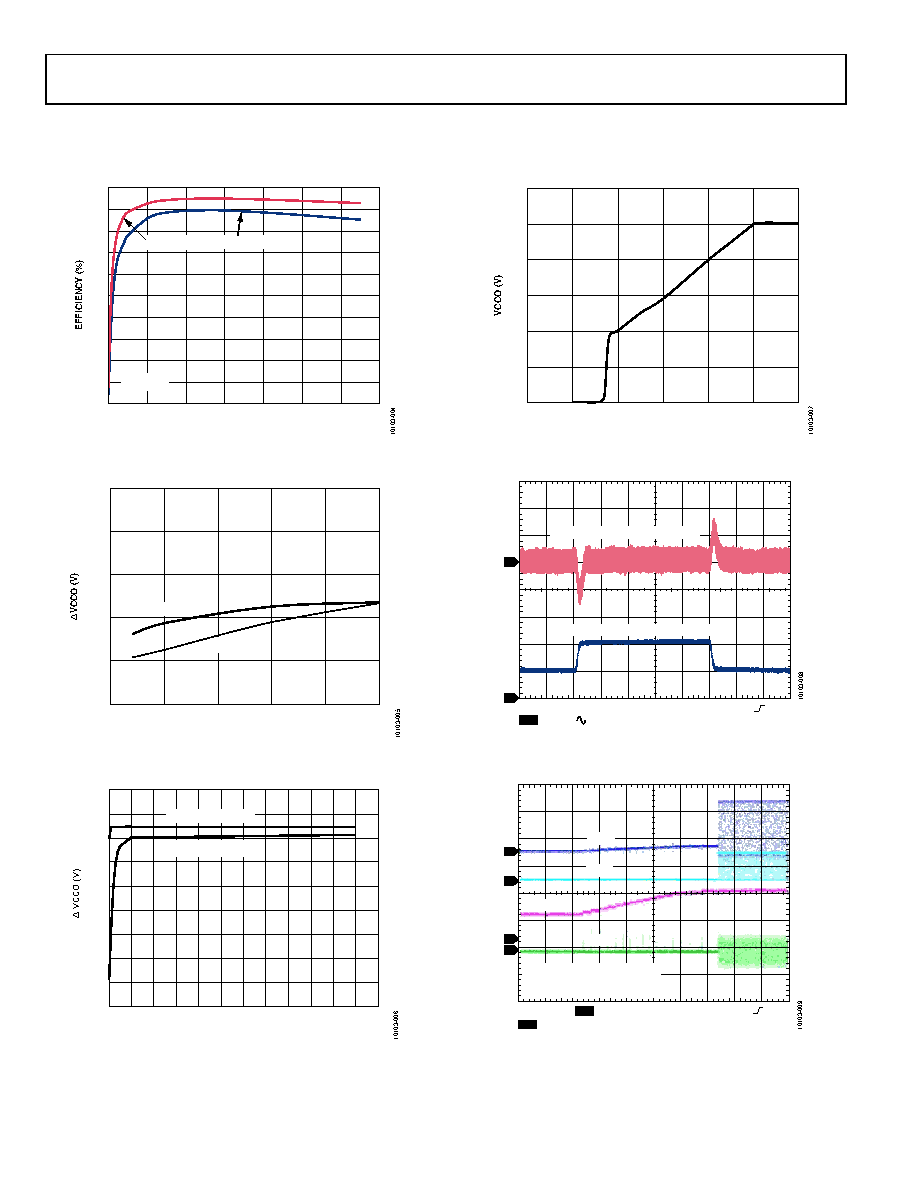

TYPICAL PERFORMANCE CHARACTERISTICS
Test conditions are at TA = 25°C and VIN = 12 V, unless otherwise specified.
Figure 4. Efficiency Plot of Figure 33
Figure 5. VCCO Dropout
Figure 6. VCCO Line Regulation
Figure 7. VCCO vs. VIN
Figure 8. Step Load Transient of Figure 33
Figure 9. Soft Start Into Precharged Output
0
10
20
30
40
50
60
70
80
90
100
0
2
4
6
8
10
12
14
LOAD (A)
VIN = 12V
VOUT = 1.8V
VOUT = 5V
–0.25
–0.20
–0.15
–0.10
–0.05
0
2.5
3.0
3.5
4.0
4.5
5.0
VIN (V)
50mA LOAD
100mA LOAD
4.65
4.70
4.75
4.80
4.85
4.90
4.95
5.00
5.05
5.10
5
7
9
11
13
15
17
VIN (V)
NO LOAD ON LDO
100mA LOAD ON LDO
0
1
2
3
4
5
6
0
1
2
3
4
5
6
VIN (V)
CH1
5.00A Ω
CH3 20.0mV
M100µs
A CH1
9.00A
1
3
VOUT1 = 5V OUTPUT RESPONSE
OUTPUT STEP LOAD = 5A TO 10A
2
CH3 1V
CH2 5V
CH1 5V
CH4 1A
Ω
M1ms
A CH1
2.4V
VIN = 12V
VOUT = 1.8V
OUTPUT PRECHARGED TO 1V
DH1
DL1
VOUT1
IL1
1
3
4
