Everlight Electronics Co., Ltd.

http\\:www.everlight.com

Rev 1.0

Page: 2 of 5

Device Number : DLE-734-R15

Prepared date:2004/07/30

Prepared by: M.T CHANG

7343-2USRC/S1060

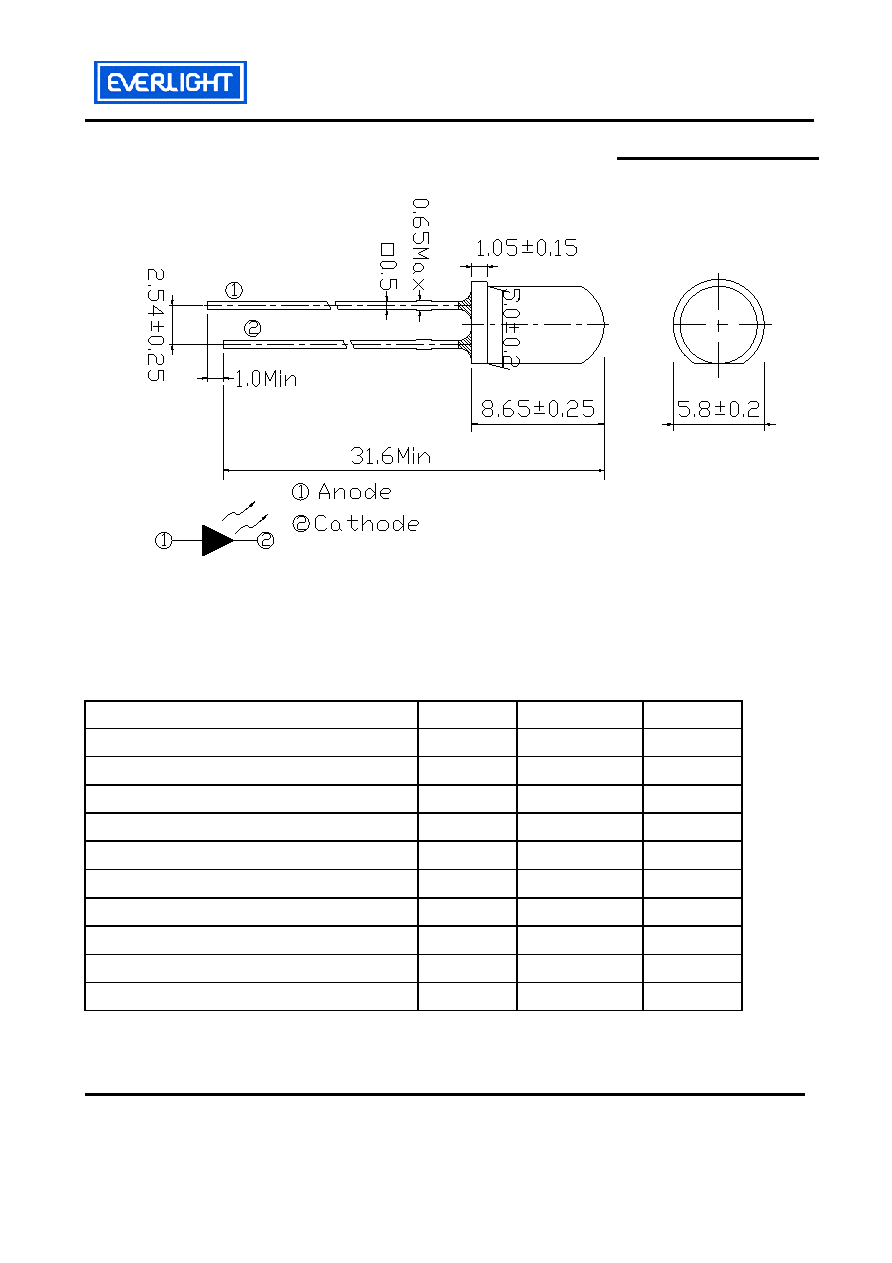

Package Dimensions

Notes:

․All dimensions are in millimeters, tolerance is 0.25mm except being specified.

․Lead spacing is measured where the lead emerges from the package.

․Protruded resin under flange is 1.5mm Max LED.

Absolute Maximum Ratings (Ta=25℃)

Parameter

Symbol

Rating

Units

Forward Current

50

mA

Pulse Forward Current(Duty 1/10 @ 1kHz)

*1

100

mA

Operating Temperature

-40 ~ +85

℃

Storage Temperature

-40 ~ +100

℃

LED Junction Temperature

125

℃

Electrostatic Discharge

ESD

2000

V

Soldering Temperature

*2

260 ±5

℃

Through-the-Wave Preheat Temperature

----

145

℃

Power Dissipation

100

mW

Reverse Voltage

5

V

*2:Soldering time≦5 seconds.
