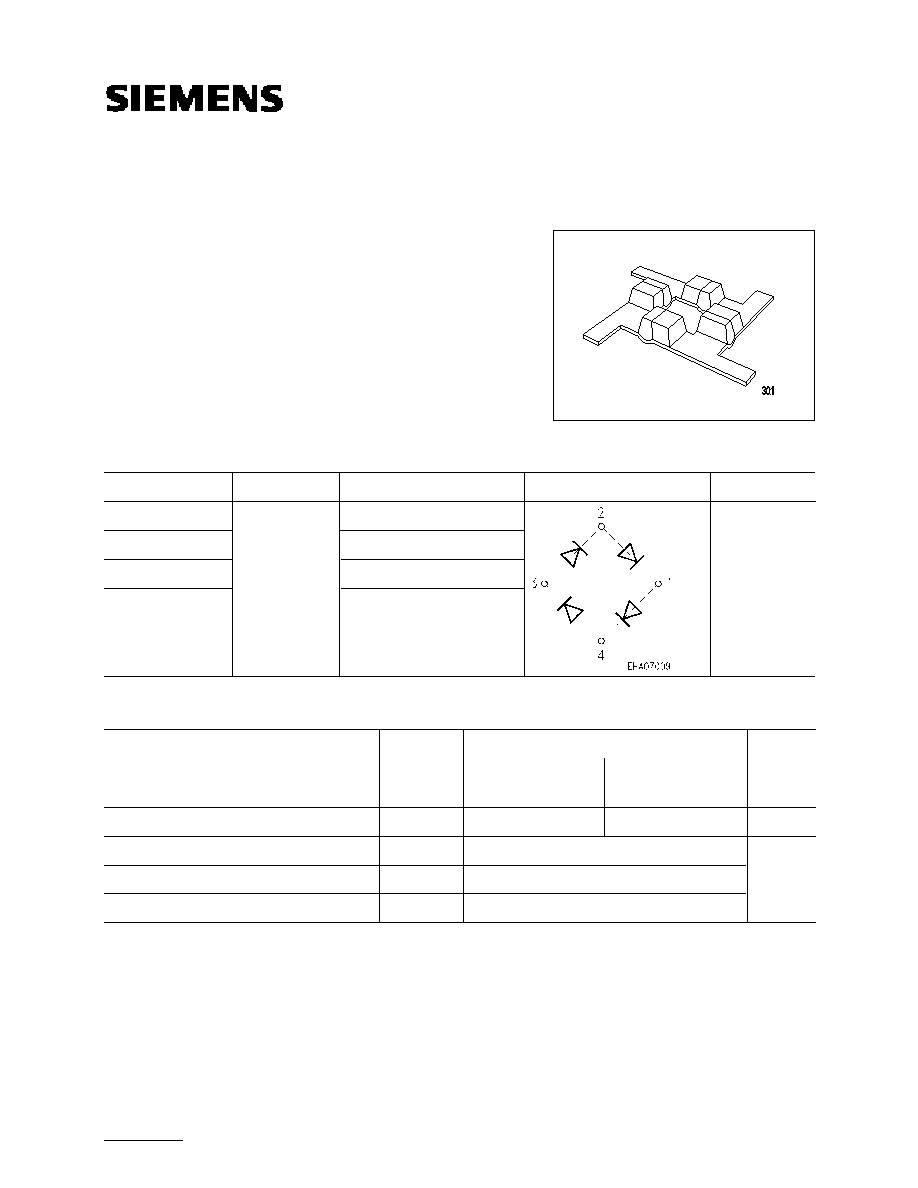

Silicon Schottky Diodes

BAT 15- … R

ESD: Electrostatic discharge sensitive device, observe handling precautions!

Maximum Ratings

Type

Ordering Code

Marking

Package1)

Pin Configuration

BAT 15-020 R

Q62702-D1264

–R

BAT 15-050 R

Q62702-D1272

BAT 15-090 R

Q62702-D1281

BAT 15-110 R

Q62702-D1290

Parameter

Symbol

Unit

Junction temperature

Tj

175

˚C

Tstg

– 65 … + 150

Forward current

IF

100

mA

Storage temperature range

Operating temperature range

Top

– 65 … + 150

Values

50

BAT 15-020 R

BAT 15-050 R

BAT 15-090 R

BAT 15-110 R

1)

For detailed information see chapter Package Outlines.

q

Beam lead technology

q

Low dimension

q

High performance

q

Low barrier
