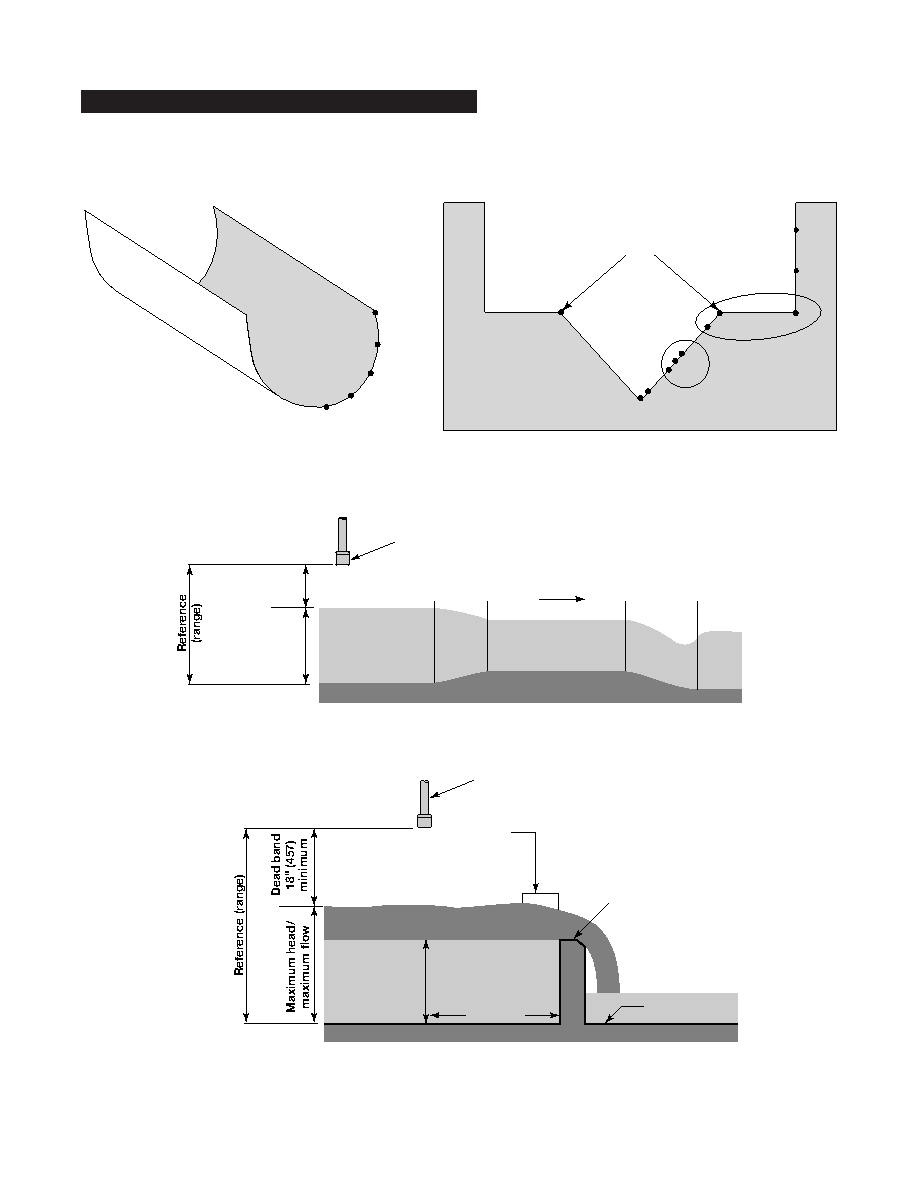

21 / 36 page  Maximum head/ maximum flow Ultrasonic Transducer Dead band 18" (457) minimum Flow Water surface Throat 3–4 H minimum Maximum crest height, 2–3 H Ultrasonic Transducer Maximum head, H Crest Channel floor Drawdown Figure 14 Flume (side view) Figure 15 Weir (side view) SYSTEM CONFIGURATION MENU—FLOW AND LEVEL cont. NOTE: Install the transducer at the point recommended by the flume/weir manufacturer to insure proper flow measure- ment; or consult factory for transducer location. SPLINE OR LINEAR SPLINE Figure 13 Custom Table Flow and Level P1 P2 P3 P4 P5 Concentrate points along curve P2 P3 P7 P10 Transition point P1 Concentrate points as follows: A. At least two points at beginning (P1 and P2); B. At least two points at end (P9 and P10); C. Three points at approximate average flow rate (for example, P3, P4, P5); and at transition point (P7) and points on either side (P6, P8). P5 P4 P6 P8 P9 Average flow rate 21 SOFTWARE CONFIGURATION cont. |
|
