D180SC4M

40V 180A

Copyright & Copy;2000 Shindengen Electric Mfg.Co.Ltd

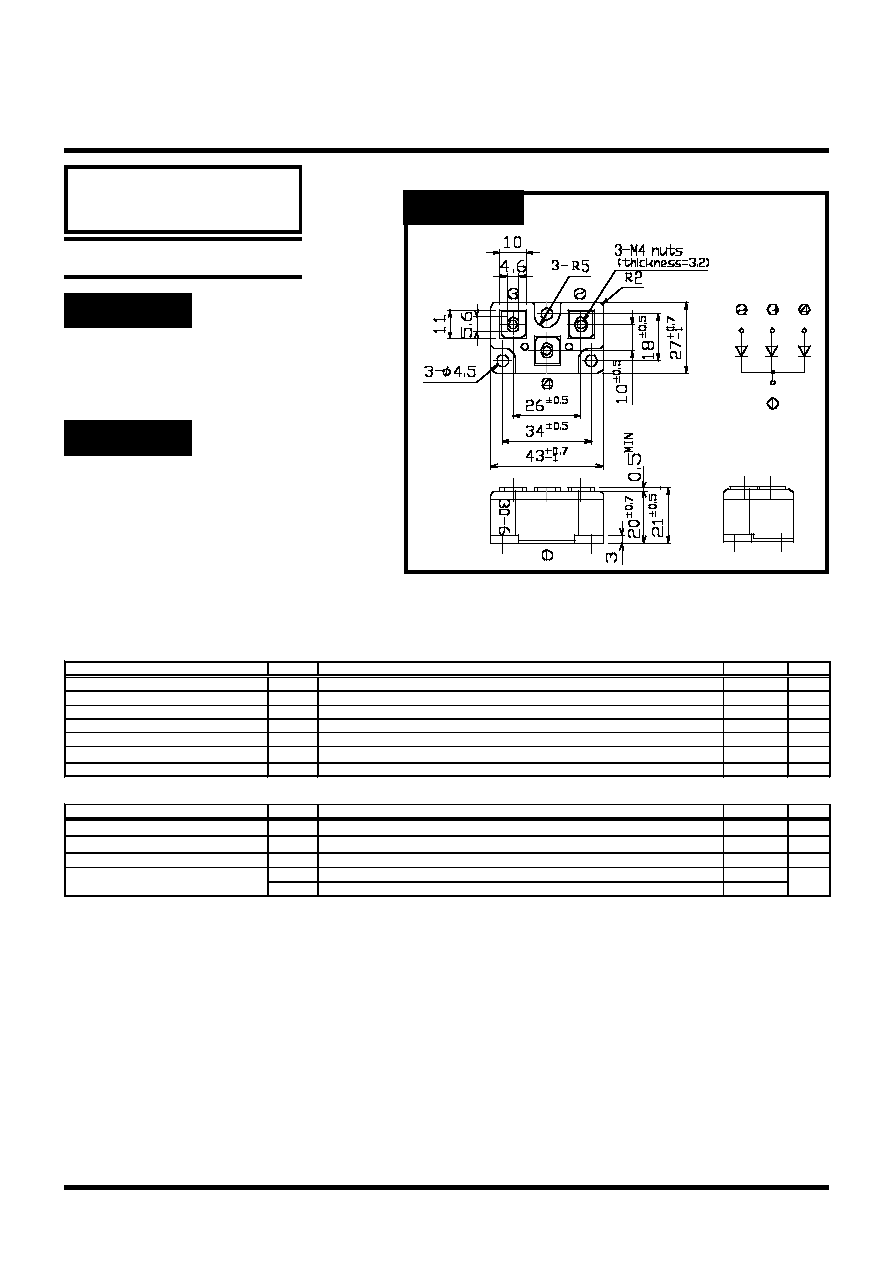

OUTLINE DIMENSIONS

Unit : mm

RATINGS

SHINDENGEN

FEATURES

APPLICATION

Case : Modules

Schottky Rectifiers (SBD)

Modules

●Absolute Maximum Ratings (If not specified Tc=25℃）

Item

Symbol

Conditions

Ratings

Units

Storage Temperature

Tstg

-40∼125

℃

Operating Junction Temperature

Tj

125

℃

Maximum Reverse Voltage

V

RM

40

V

Repetitive Peak Surge Reverse Voltage

V

RRSM

Pulse width 100ms, duty 1/100

48

V

Average Rectified Forward Current

50Hz sine wave, R-load, Rating for each diode Io/3, Tc=83℃

180

A

Peak Surge Forward Current

I

FSM

50Hz sine wave, Non-repetitive 1cycle peak value, Rating of per diode Tj=125 ℃

800

A

Mounting Torque

TOR

1.7

N･m

●Electrical Characteristics (If not specified Tc=25℃）

Item

Symbol

Conditions

Ratings

Units

Forward Voltage

V

F

Pulse measurement, Rating of per diode

Max.0.58

V

Reverse Current

I

R

Max.40

mA

Junction Capacitance

Cj

TYP 2.1

nF

Thermal Resistance

θjc

junction to case

Max.0.25 ℃/W

θcf

case to heatsink, Mounting torque = 1.7N･m

Max.0.12
