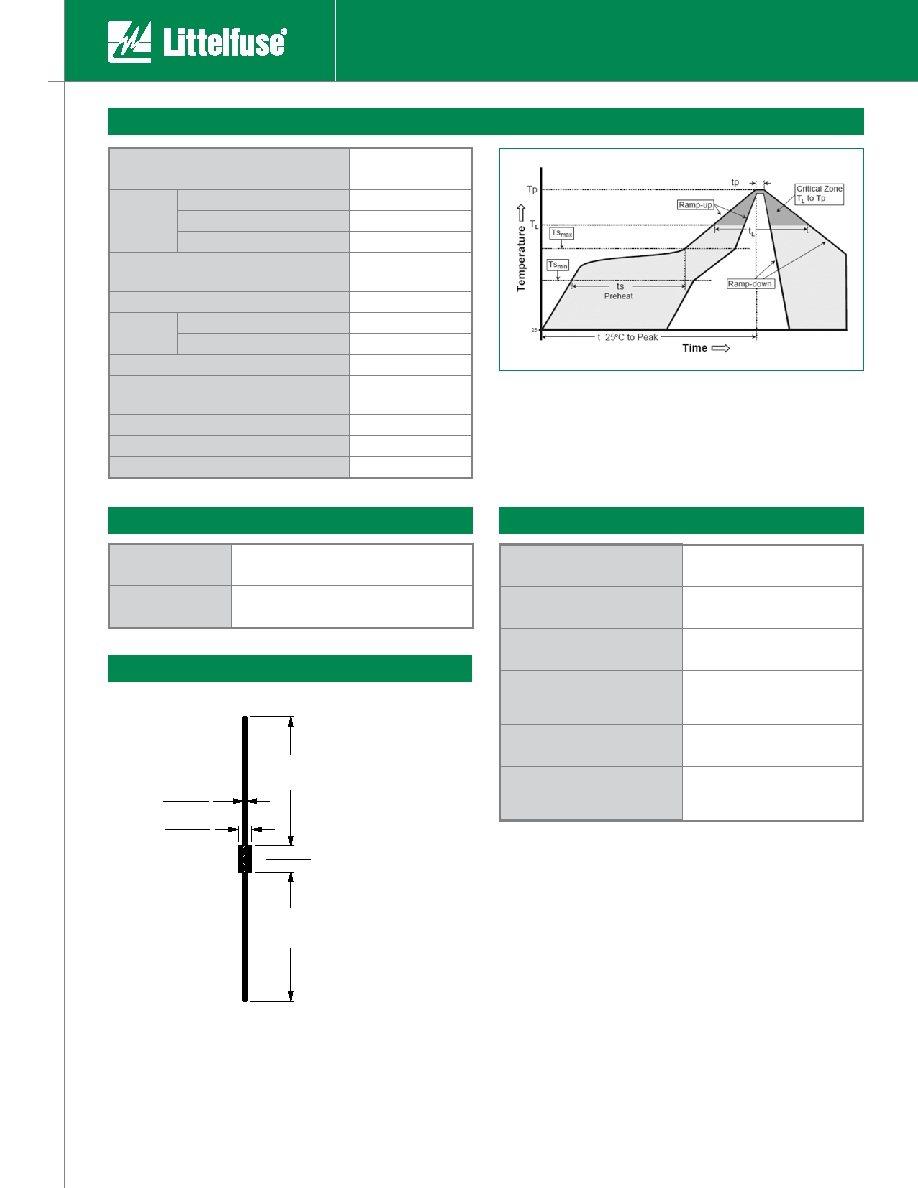

Teccor® brand Protection Thyristors

Axial Leaded

www.littelfuse.com

DO-41 Series

Specifications are subject to change without notice.

Telecom Design Guide

Reflow Condition

Pb – Free assembly

Pre Heat

-Temperature Min (T

s(min))

150°C

-Temperature Max (T

s(max))

190°C

-Time (min to max) (t

50 – 150 seconds

Average ramp up rate (LiquidusTemp

L) to peak)

5°C/second max

S(max) to TL - Ramp-up Rate

5°C/second max

Reflow

-Temperature (T

L) (Liquidus)

220°C

-Time (min to max) (t

>60 – <150 seconds

PeakTemperature (T

250+0/-5 °C

Time within 5°C of actual peak

Temperature (t

20 – 40 seconds

Ramp-down Rate

5°C/second max

Time 25°C to peakTemperature (T

8 minutes max.

Do not exceed

280°C

Soldering Parameters

Physical Specifications

Terminal Material

Matte Tin-plated Axial leads

Lead Solderability

MIL-STD-750, Method 2026

Environmental Specifications

Operating/Storage

Temperature

-40° C to ~ +150°C

Passive Aging

125° C, 1000 hours

Meet Spec

Humidity Aging

+85°C, 85% R.H. 1000 hours

Meet Spec

Thermal Shock

MIL-STD-202 Method 107G

+85°C/-40°C 100 times

Meet Spec

Solvent Resistance

MIL-STD-202, Method 215

No Change

Vibration

MIL-STD-883C, Method 2007.1,

Condition A

No Change

Dimensions

DO-41 SERIES

MIN

1.000

[25.40]

1.000

MIN

Dimensions in inches and (millimeters)

[2.00] .080

.107

(2.72)

[5.21] .205

.160

[4.10]

[0.71] .028

.034

[0.86]
