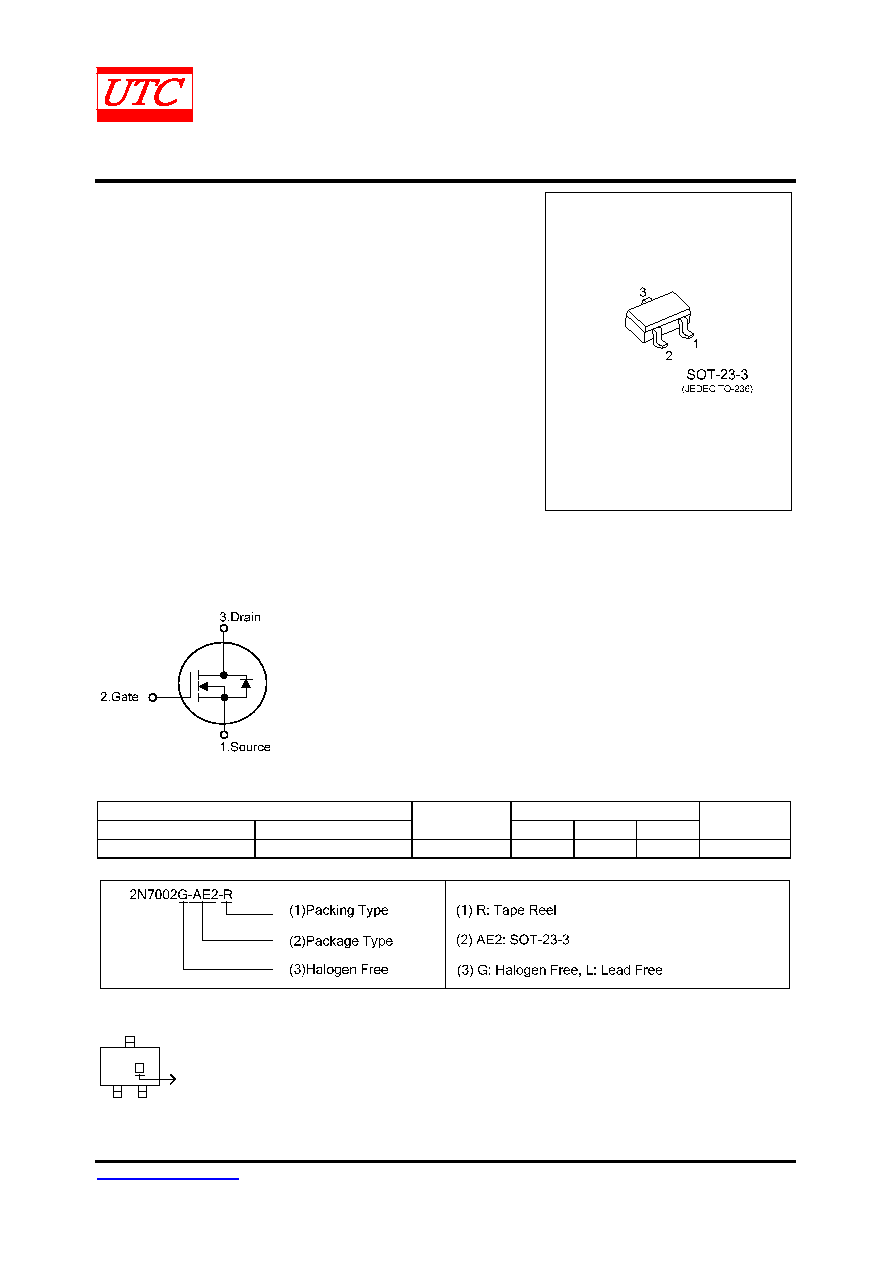

UNISONIC TECHNOLOGIES CO., LTD

2N7002

Power MOSFET

www.unisonic.com.tw

1 of 6

Copyright © 2011 Unisonic Technologies Co., Ltd

QW-R206-037,I

0.3 Amps, 60 Volts

N-CHANNEL POWER MOSFET

DESCRIPTION

The UTC 2N7002 has been designed to minimize on-state

resistance while provide rugged, reliable, and fast switching

performance. It can be used in most applications requiring up to

400mA DC and can deliver pulsed currents up to 2A. The product

is particularly suited for low voltage, low current applications such

as small servo motor control, power MOSFET gate drivers, and

other switching applications

FEATURES

* Voltage Controlled Small Signal Switch

* Rugged and Reliable

* High Saturation Current Capability

SYMBOL

ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

3

Packing

2N7002L-AE2-R

2N7002G-AE2-R

SOT-23-3

S

G

D

Tape Reel

MARKING

3P

G: Halogen Free

L: Lead Free
