AS09008PO-2-R datasheet(1/1 Pages) PUI

номер детали	AS09008PO-2-R

подробное описание детали	Speaker

PDF	1 Pages

Scroll/Zoom	100%

производитель	PUI [Projects Unlimited, Inc.]

домашняя страница	http://www.pui.com

Logo

1 / 1 page

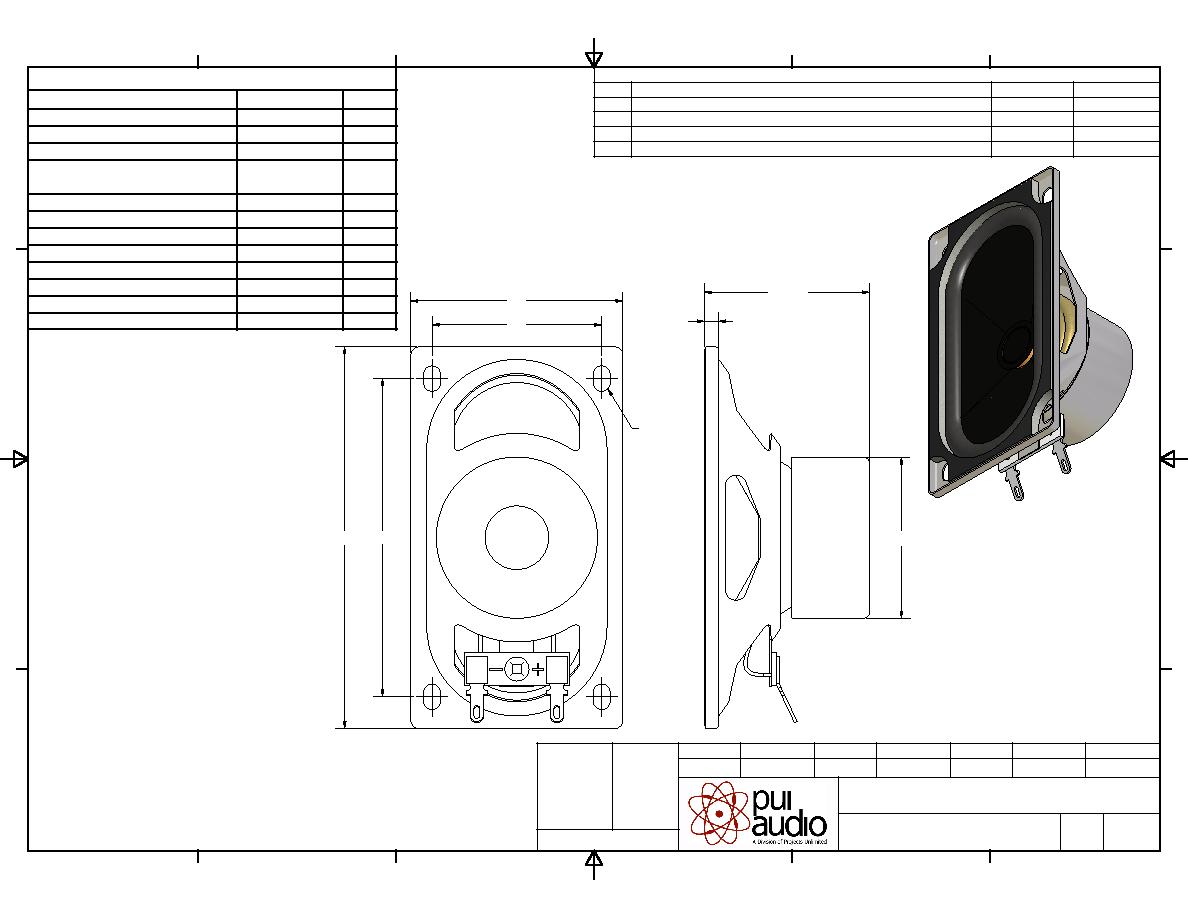

Speaker

AS09008PO-2-R

J.A.F.

B.R.

E.P.

1/29/2009

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

8/16/2005

Date

8/16/2005

Date

8/16/2005

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

AS09008PO-2-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

8/16/2005

A

REVISED MAGNET DIAMETER

12/19/2007

R.W.

B

REVISED HEIGHT & HOLE DIMENSIONS

1/29/2009

B.R.

C

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

1/29/2009

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

5

W

MAX INPUT POWER

8

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 0.6, 0.8, 1.0, 1.2 kHz)

86 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

240 ± 20%

Hz

FREQUENCY RANGE

240 ~ 18,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

PAPER

-

MAGNET MATERIAL

FERRITE

-

OPERATING TEMPERATURE

-20 ~ +55

°C

WEIGHT

128.44

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

40

50

75

90

3.5

39

`1

38

Ø

4 x 6 (4)
