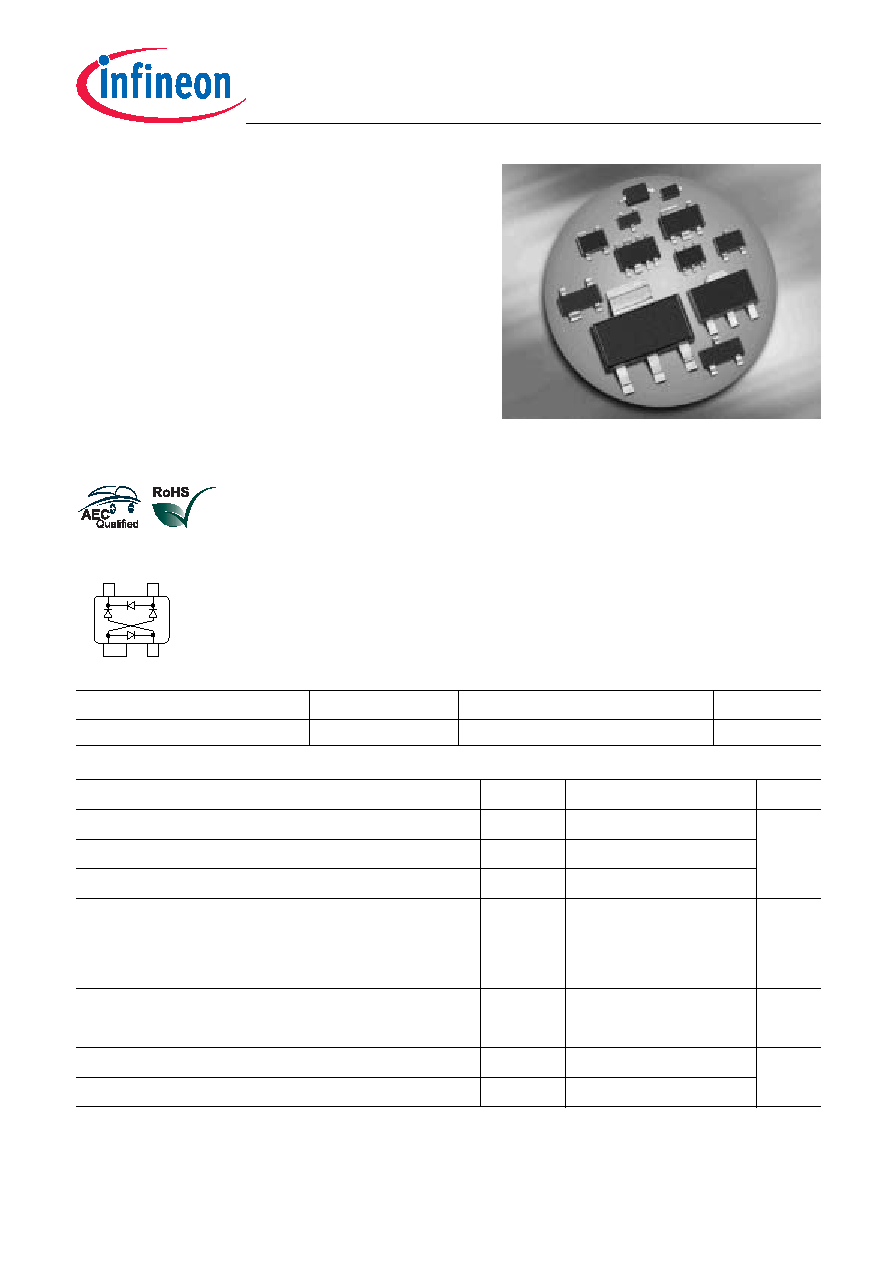

BAS3007A-RPP datasheet(1/6 Pages) INFINEON

номер детали	BAS3007A-RPP

подробное описание детали	Low VF Schottky Diode Array

PDF	6 Pages

Scroll/Zoom	100%

производитель	INFINEON [Infineon Technologies AG]

домашняя страница	http://www.infineon.com

Logo

1 / 6 page

2007-11-20

1

BAS3007A...

Low VF Schottky Diode Array

• Reverse voltage: 30 V

• Forward current: 0.9 A

• Small diode quad array for polarity independence,

reverse polarity protection and low loss

bridge rectification

• Very low forward voltage:

0.5 V typ. @ 0.7 A (per diode)

• Fast switching

• Pb-free (ROHS compliant) package1)

• Qualified according AEC Q101

BAS3007A-RPP

2

1

D2

D1

4

3

D3

D4

+

-

~

Type

Package

Configuration

Marking

BAS3007A-RPP

SOT143

bridge

E1s

Maximum Ratings at TA = 25°C, unless otherwise specified

Parameter

Symbol

Value

Unit

Diode reverse voltage2)

VR

30

V

Peak reverse voltage2)

VRM

30

RMS reverse voltage2)

VR(RMS)

21

Forward current2)

TS ≤ 46°C

TS ≤ 82°C

IF

900

700

mA

Non-repetitive peak surge forward current

(t

≤ 10 ms)

IFSM

5

A

Junction temperature

Tj

150

°C

Storage temperature

Tstg

-65 ... 150

1Pb-containing package may be available upon special request

2For TA > 25°C the derating of VR and IF has to be considered. Please refer to the attached curves.
