COMPONENTS PRODUCT INFORMATION

CONNECTOR

NEW

1/15

MB-0153-2

October 2008

JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.

Features

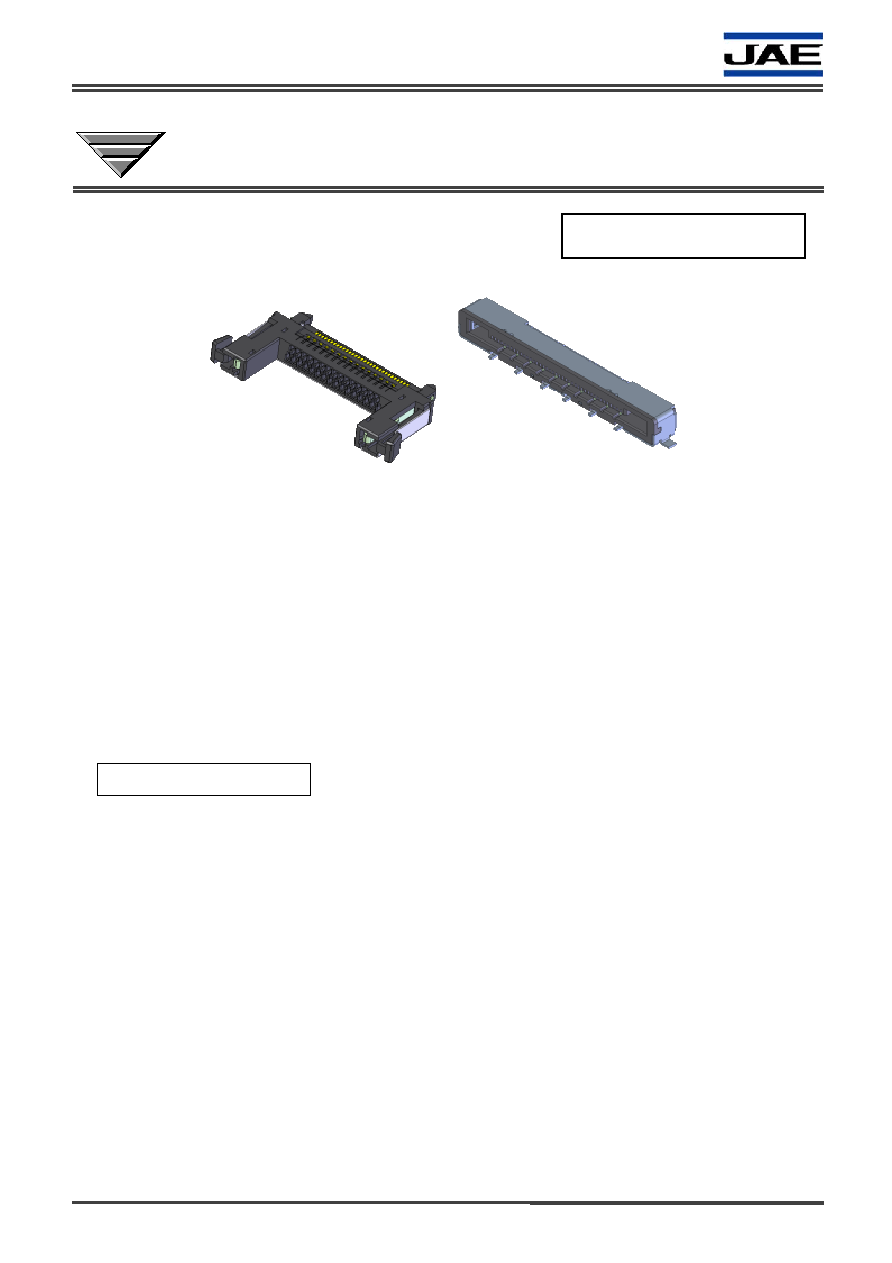

FI-R Series

Connector for Internal Serial Transmission

High-speed serial transmission such as LVDS, TMDS (HDMI), and PCI Express are

widely used in applications in a variety of markets including the personal computer,

TV, consumer device, copier, and medical device markets.

In these applications connectors not only need to have the ability to transmit signals

at high speed, but they also must have the durability, ease of mating, and variety of

options to respond to the demands of all designs.

The FI-R is the ideal connector series to meet these demands.

•0.5mm terminal pitch, 3.8mm connector, compact design with 21, 31, 41, and 51

positions.

•Stable mating with large mating guides on the Plug.

•Strong PCB retention with solder hold-downs on the Receptacle.

•Impedance matching: 100 ohm. Ground reinforced by shell structure and hold-downs.

•Receptacle options include with and without shell, and right-angle and straight types,

all with a common footprint.

•Mechanical lock to prevent mis-mating and accidental unmating.

•Plug options for discrete wire crimping, fine coaxial wire soldering, and FFC to suit a

variety of needs.

•VESA standard connector for TV LCD interface.

RoHS Compliant
