LTS MCB/MDB Ceramic Filters

Ceramic Filters

Low Spurious

for TV/VCR Stage

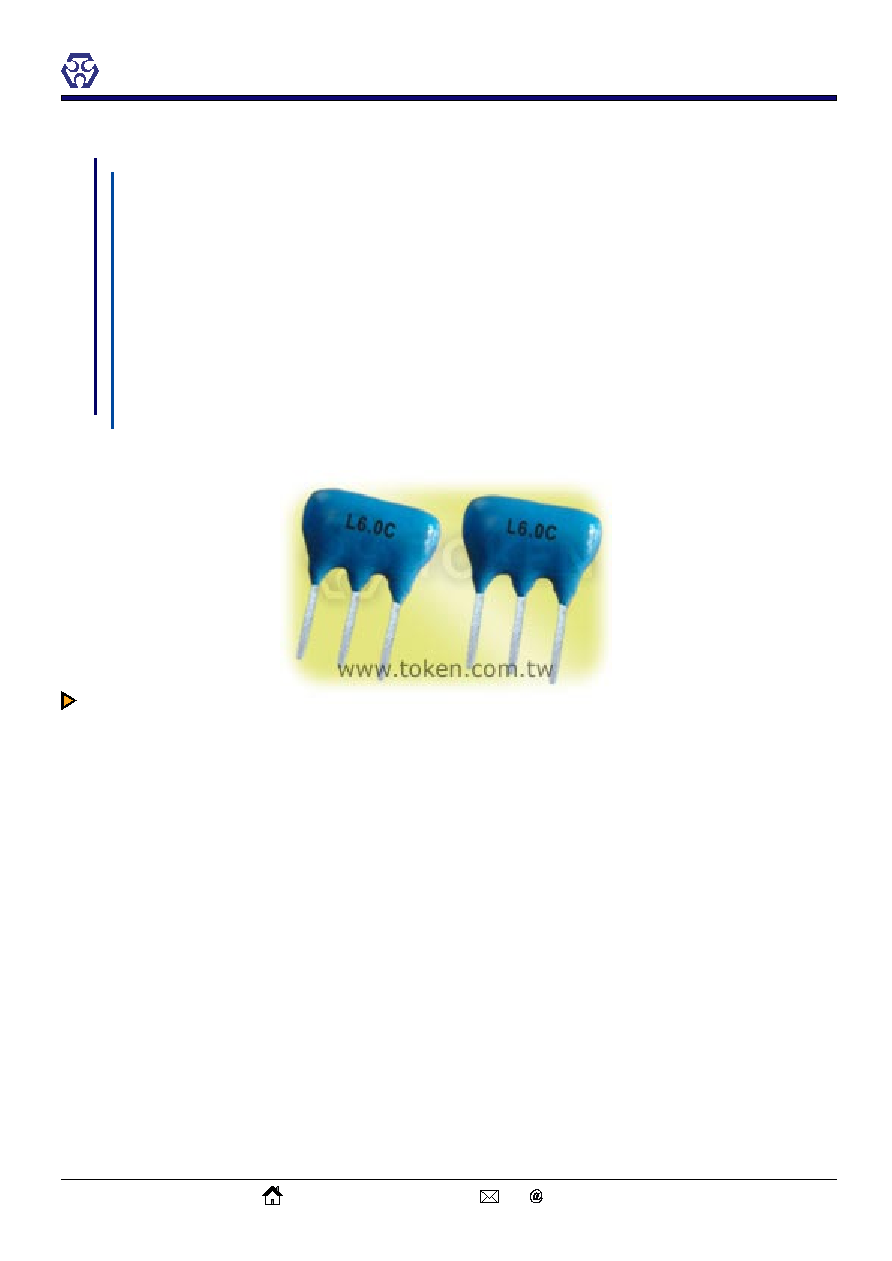

Token (LTS MCB/MDB) Ceramic Filter

is suitable for Multiplex Sound TV in America

Preview

Token series ceramic filters low spurious for TV/VCR stage LTS MCB/MDB series use thickness shear vibration

mode and is compatible Murata SFSH MCB/MDB. Features with excellent spurious characteristics within Video

Signal Band, and 3 types bandwidths prepared to respond customer requests. LTS MCB/MDB is suitable for

Multiplex Sound TV in America.

The LTS MCB/MDB series conform to the RoHS directive and Lead-free. This filter low spurious for TV/VCR

stage LTS MCB/MDB series can be customed designs and tighter tolerances available on request.

Application of ceramic filter specific designs also available including different piezo band-pass devices and Q

specifications adjusted to frequency requirements. Token ceramic filters can supply you high performance, high

quality and stability.

With dimensions max (10 x 8.0 x 4.0 mm), Insert Loss max 6dB, and Spurious Attenuation (0~fo) min 30dB, The

LTS MCB/MDB has excellent spurious characteristics within Video Signal Band. Nominal Center Frequency (fo)

is available with 4.500kHz, 5.500kHz, 6.000kHz, and 6.500kHz.

Custom parts are available on request. Token will also produce devices outside these specifications to meet

specific customer requirements,please contact our sales for more information.
