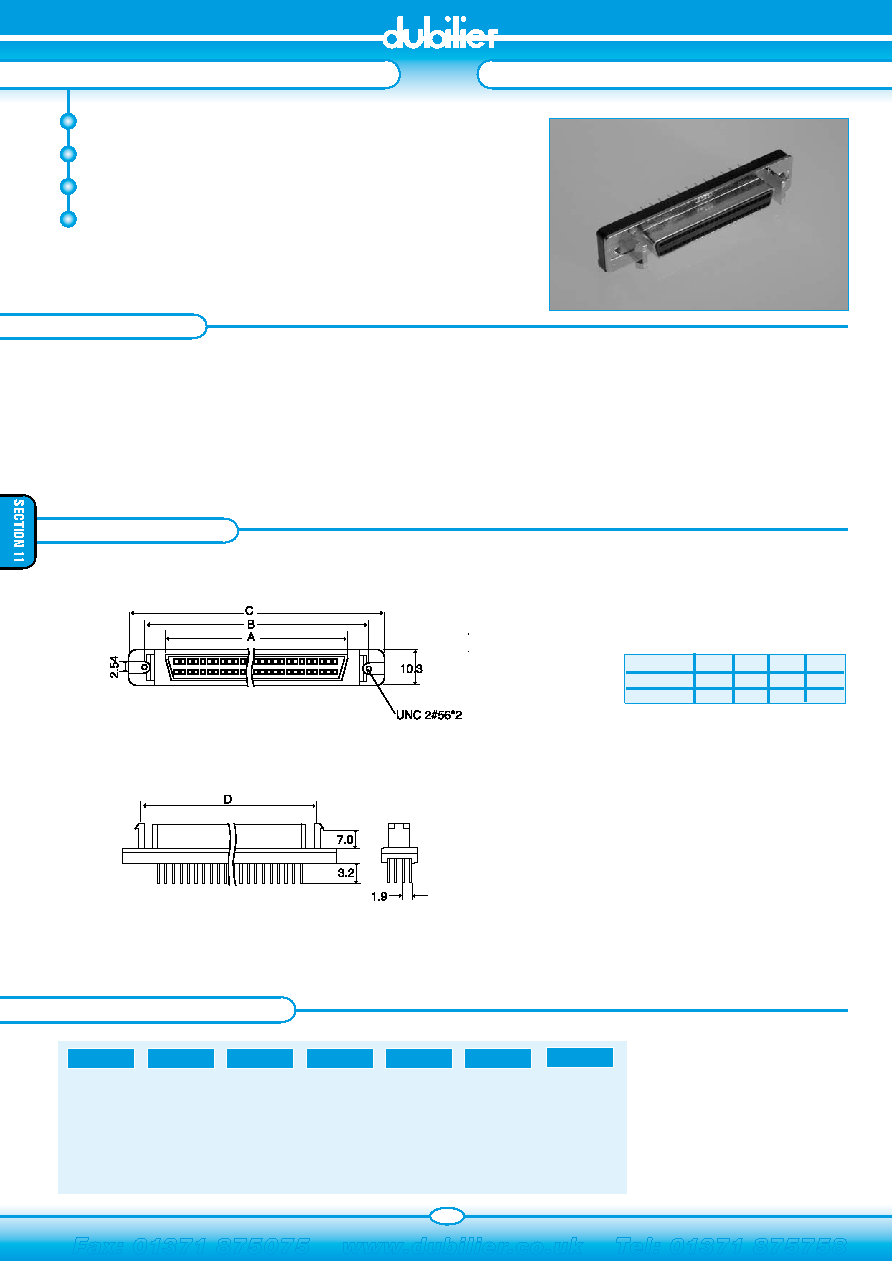

OUTLINE DRAWING

D TYPE SCSI II

PCB STRAIGHT

SPECIFICATION

ORDERING INFORMATION

Material

Insulator:

PBT&GlassfillreinforcedUL94V-0

Pin Contacts:

PhosphorBronze

GoldPlatedovernickel

Shell:

ZincAlloy

Nickelovercopperplated

Electrical Data

Rated Current:

1Amp

Insulation Resistance:

3000MΩminat500vDC

Contact Resistance:

30mΩMax

Dielectric withstanding voltage:

500vac/1min

Operating Temperature:

-55˚C-+105˚C

DBC

SC

F

SS

50

Dubilier

Connectors

Series

SC=SCII-II

Dsub

ContactType

F=Female

ContactStyle

SS=Solder

Straight

NoofWays

50=50way

68=68way

ContactPlating

S=SelectivePlating

ShellOption

Blank=MetalShell

P=Plastic

S

50 & 68 way

Low Cost

Selective Gold Plated Contacts

1.27mm Pitch

POSITION

A

B

C

D

50

30.50 46.5052.65 40.10

68

41.93 57.9364.80 51.53

OtherNo.ofwaysavailableuponrequest.
