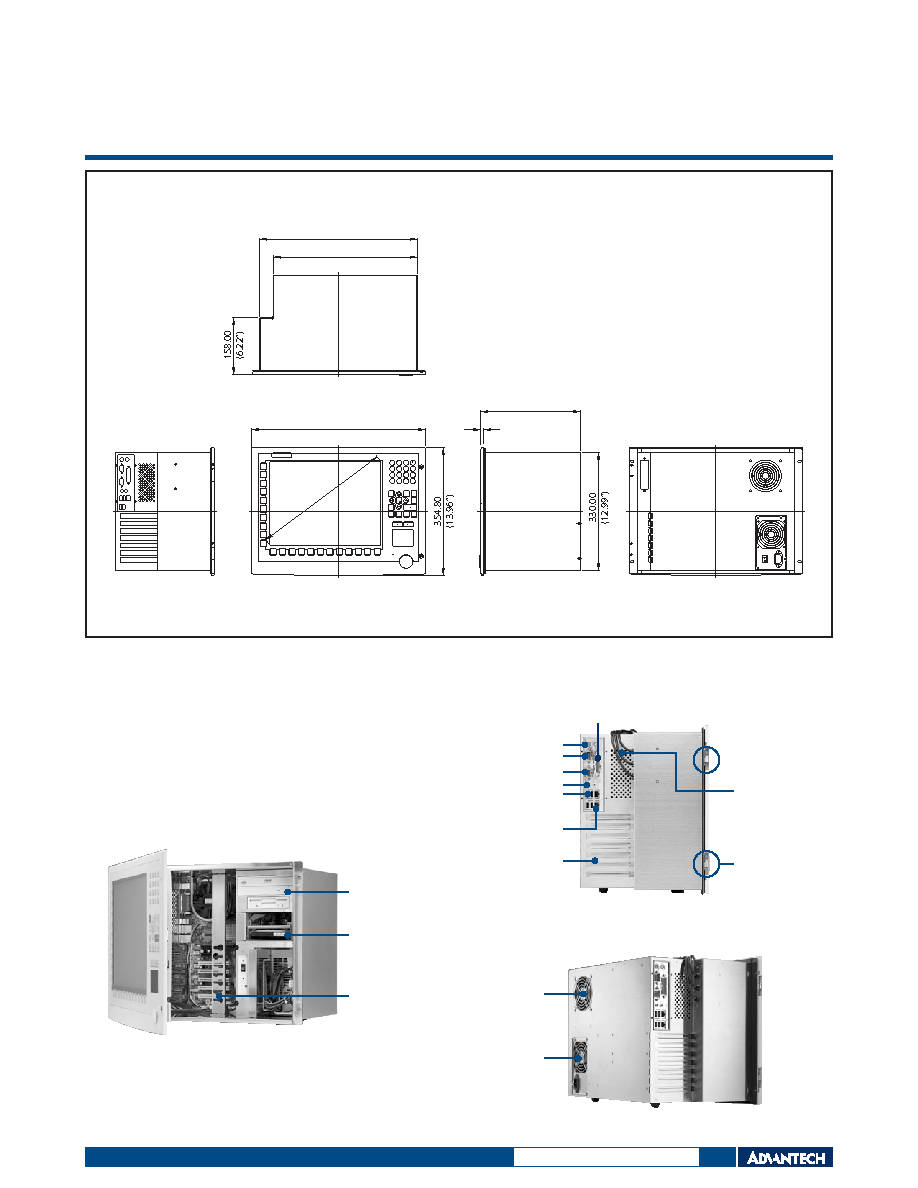

Dimensions
Unit: mm
Accessories
1702002600
Power Cable US Plug 1.8 M
1702002605
Power Cable EU Plug 1.8 M
1702031801
Power Cable UK Plug 1.8 M
1702031836
Power Cable China/Australia Plug 1.8 M
Side View
Rear View
IPPC-7157A
Open View
Parallel Port
PS/2 Keyboard & Mouse
Com Port
VGA Port
MIC in & Line Out
4 USB Ports
Dual Gigabit LAN
7 Expansion Slots
(2 PCIe, 5 PCI)
Front Panel Hinge
3 Cables:
2 PS/2 connectors:
for Function Keys
& Touchpad on
Front Panel
1 LCD VGA cable:
for Front Panel LCD
•
•
CD-ROM & Floppy
Drive Bay
3.5" HDD Drive Bay
(Support up to 2 drive)
Hold Down Clamps
for PCI Cards
System Fan
Power Fan
Panel Cut-out Dimensions: 439.30 (17.29") x 332.00 (13.07) mm
