ADL5367
Rev. 0 | Page 15 of 24
UPCONVERSION
TA = 25°C, fIF = 153 MHz, fLO = 1697 MHz, LO power = 0 dBm, RF power = 0 dBm, VGS0 = VGS1 = 0 V, and ZO = 50 Ω, unless otherwise noted.
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
700
750
800
850
900
950
1000 1050 1100 1150 1200
RF FREQUENCY (MHz)
TA = +85°C
TA = –40°C
TA = +25°C

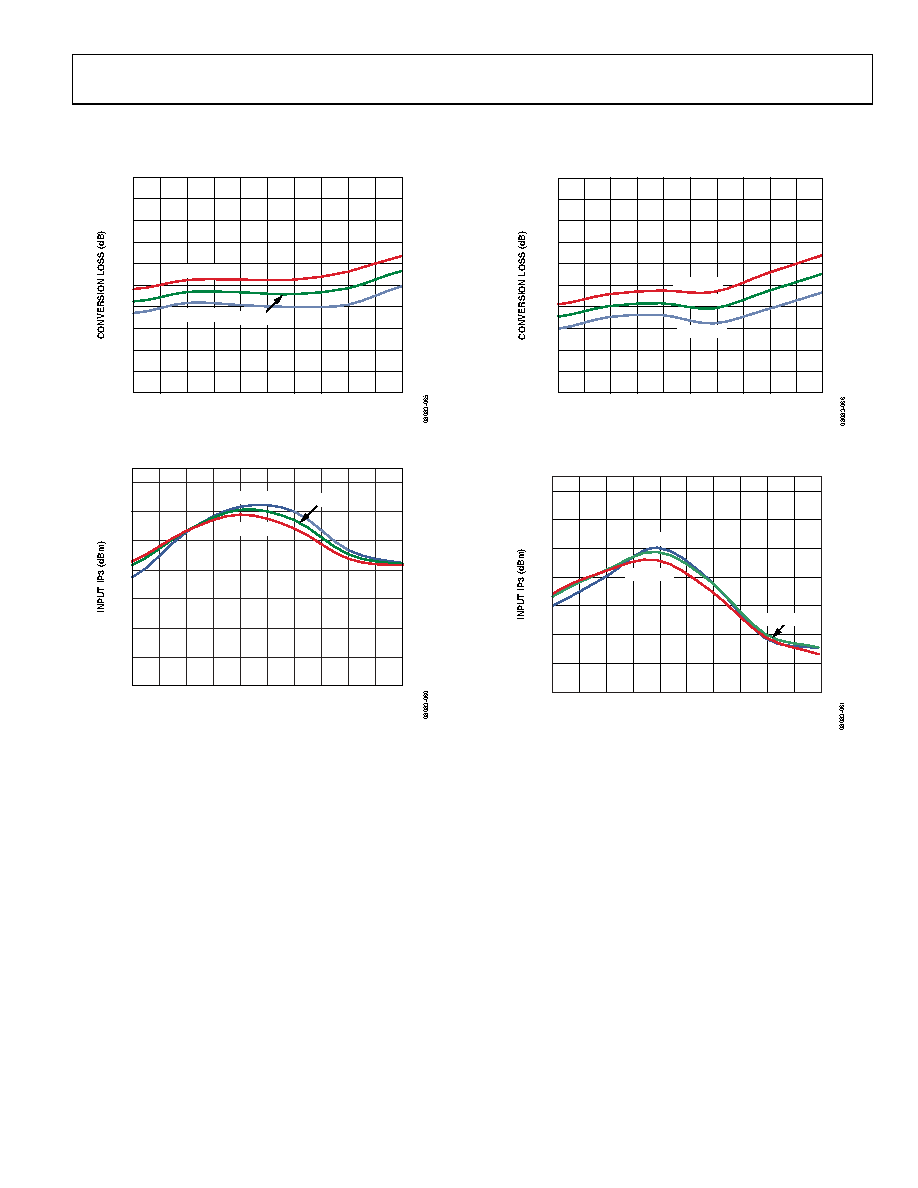

Figure 45. Power Conversion Loss vs. RF Frequency, VS = 5 V, Upconversion
20
22
24
26
28
30
32
34
700
750
800
850
900
950
1000 1050 1100 1150 1200
RF FREQUENCY (MHz)
TA = +85°C
TA = –40°C
TA = +25°C
Figure 46. Input IP3 vs. RF Frequency, VS = 5 V, Upconversion
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
700
750
800
850
900
950
1000 1050 1100 1150 1200
RF FREQUENCY (MHz)
TA = +85°C
TA = –40°C
TA = +25°C
Figure 47. Power Conversion Loss vs. RF Frequency at 3.3 V, Upconversion
20
22
24
26
28
30
32
34
700
750
800
850
900
950
1000 1050 1100 1150 1200
RF FREQUENCY (MHz)
TA = +85°C
TA = –40°C
TA = +25°C
Figure 48. Input IP3 vs. RF Frequency at 3.3 V, Upconversion
